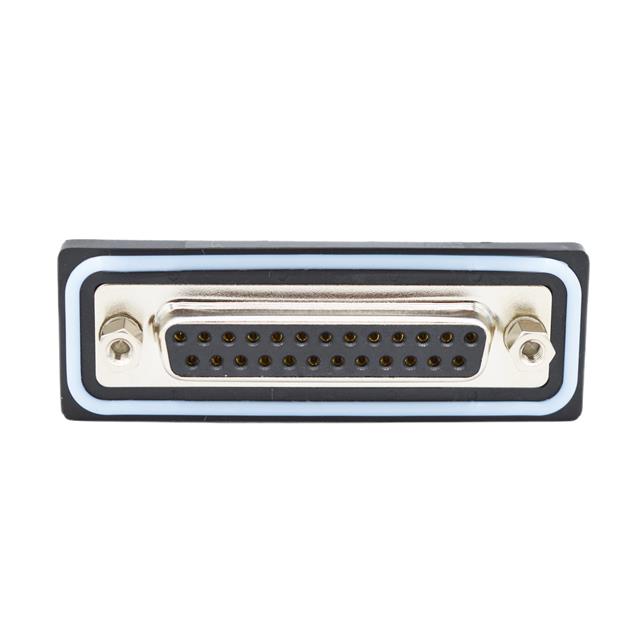

SDF-S25-203L011

Active

NorComp Inc.

D SUB CONNECTOR, IP67, STANDARD, RECEPTACLE, NANOOK SERIES, 25 CONTACTS, DB, SOLDER CUP

Search across all available documentation for this part.

Active

NorComp Inc.

D SUB CONNECTOR, IP67, STANDARD, RECEPTACLE, NANOOK SERIES, 25 CONTACTS, DB, SOLDER CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SDF-S25-203L011	SDF-S25 Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Finish Thickness	-	0.76 Ám
Contact Finish Thickness	-	30 Áin
Contact Material	Brass	Brass
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Features	-	Grounding Indents
Flange Feature	Female Screwlock (4-40), Mating Side	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B	DB, B
Shell Size, Connector Layout [custom]	3	3

D SUB CONNECTOR, IP67, STANDARD, RECEPTACLE, NANOOK SERIES, 25 CONTACTS, DB, SOLDER CUP

Part	Flange Feature	Number of Rows	Contact Material	Ingress Protection	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Finish	Dielectric Material	Connector Style	Shell Material, Finish	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Contact Finish Thickness	Features
NorComp Inc. SDF-S25-203L012	Female Screwlock (4-40), Mating Side	2	Brass	IP67 - Dust Tight, Waterproof	5 A	B, DB	3	Receptacle, Female Sockets	-25 °C	85 °C	Black	Gold	Polybutylene Terephthalate (PBT)	D-Sub	Nickel Plated, Steel	Signal	0.76 Ám	30 Áin	UL94 V-0
NorComp Inc. SDF-S25-203L011	Female Screwlock (4-40), Mating Side	2	Brass	IP67 - Dust Tight, Waterproof	5 A	B, DB	3	Receptacle, Female Sockets	-25 °C	85 °C	Black	Gold	Polybutylene Terephthalate (PBT)	D-Sub	Nickel Plated, Steel	Signal			UL94 V-0	Flash
NorComp Inc. SDF-S25-103L012	Female Screwlock (4-40), Mating Side	2	Brass	IP67 - Dust Tight, Waterproof	5 A	B, DB	3	Male Pins, Plug	-25 °C	85 °C	Black	Gold	Polybutylene Terephthalate (PBT)	D-Sub	Nickel Plated, Steel	Signal	0.76 Ám	30 Áin	UL94 V-0		Grounding Indents
NorComp Inc. SDF-S25-103L011	Female Screwlock (4-40), Mating Side	2	Brass	IP67 - Dust Tight, Waterproof	5 A	B, DB	3	Male Pins, Plug	-25 °C	85 °C	Black	Gold	Polybutylene Terephthalate (PBT)	D-Sub	Nickel Plated, Steel	Signal			UL94 V-0	Flash	Grounding Indents

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Sub Receptacle, Female Sockets Connector
