45226-500230

Active

3M (TC)

26P HDR RA TH 30AU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45226-500230

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Height	5.33 mm
Insulation Height	0.21 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	125 VAC

45226 Series

Part	Pitch - Mating	Pitch - Mating	Features	Style	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Connector Type	Material Flammability Rating	Mounting Type	Number of Positions	Insulation Height	Insulation Height	Shrouding	Contact Type	Contact Shape	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Termination	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post
3M (TC) 45226-200230	0.05 in	1.27 mm	Keying Slot Pick and Place	Board to Cable/Wire	125 VAC	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	3 µin	0.076 µm	All	Header	UL94 V-0	Surface Mount	26	0.222 "	5.64 mm	Shrouded - 4 Wall	Male Pin	Square	Push-Pull	200 µin	5.08 µm	2	Copper Alloy	125 °C	-65 ░C	Tin	Solder	Gold
3M (TC) 45226-220200	0.05 in	1.27 mm	Keying Slot Pick and Place	Board to Cable/Wire	125 VAC	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)			All	Header	UL94 V-0	Surface Mount	26	0.222 "	5.64 mm	Shrouded - 4 Wall	Male Pin	Square	Latch Lock/Eject Hooks Short	100 µin	2.54 µm	2	Copper Alloy	125 °C	-65 ░C	Tin	Solder	Gold	Flash
3M (TC) 45226-600230	0.05 in	1.27 mm	Keying Slot	Board to Cable/Wire	125 VAC	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	3 µin	0.076 µm	All	Header	UL94 V-0	Through Hole	26	0.222 "	5.64 mm	Shrouded - 4 Wall	Male Pin	Square	Push-Pull	200 µin	5.08 µm	2	Copper Alloy	125 °C	-65 ░C	Tin	Solder	Gold		0.094 in	2.4 mm
3M (TC) 45226-520200	0.05 in	1.27 mm	Keying Slot	Board to Cable/Wire	125 VAC	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)			All	Header	UL94 V-0	Through Hole Right Angle	26	0.21 in	5.33 mm	Shrouded - 4 Wall	Male Pin	Square	Latch Lock/Eject Hooks Short	100 µin	2.54 µm	2	Copper Alloy	125 °C	-65 ░C	Tin	Solder	Gold	Flash	0.094 in	2.4 mm
3M (TC) 45226-520230	0.05 in	1.27 mm	Keying Slot	Board to Cable/Wire	125 VAC	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	3 µin	0.076 µm	All	Header	UL94 V-0	Through Hole Right Angle	26	0.21 in	5.33 mm	Shrouded - 4 Wall	Male Pin	Square	Latch Lock/Eject Hooks Short	200 µin	5.08 µm	2	Copper Alloy	125 °C	-65 ░C	Tin	Solder	Gold		0.094 in	2.4 mm
3M (TC) 45226-500230	0.05 in	1.27 mm	Keying Slot	Board to Cable/Wire	125 VAC	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	3 µin	0.076 µm	All	Header	UL94 V-0	Through Hole Right Angle	26	0.21 in	5.33 mm	Shrouded - 4 Wall	Male Pin	Square	Push-Pull	200 µin	5.08 µm	2	Copper Alloy	125 °C	-65 ░C	Tin	Solder	Gold		0.094 in	2.4 mm
3M (TC) 45226-620200	0.05 in	1.27 mm	Keying Slot	Board to Cable/Wire	125 VAC	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)			All	Header	UL94 V-0	Through Hole	26	0.222 "	5.64 mm	Shrouded - 4 Wall	Male Pin	Square	Latch Lock/Eject Hooks Short	100 µin	2.54 µm	2	Copper Alloy	125 °C	-65 ░C	Tin	Solder	Gold	Flash	0.094 in	2.4 mm
3M (TC) 45226-500200	0.05 in	1.27 mm	Keying Slot	Board to Cable/Wire	125 VAC	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)			All	Header	UL94 V-0	Through Hole Right Angle	26	0.21 in	5.33 mm	Shrouded - 4 Wall	Male Pin	Square	Push-Pull	100 µin	2.54 µm	2	Copper Alloy	125 °C	-65 ░C	Tin	Solder	Gold	Flash	0.094 in	2.4 mm
3M (TC) 45226-200200	0.05 in	1.27 mm	Keying Slot Pick and Place	Board to Cable/Wire	125 VAC	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)			All	Header	UL94 V-0	Surface Mount	26	0.222 "	5.64 mm	Shrouded - 4 Wall	Male Pin	Square	Push-Pull	100 µin	2.54 µm	2	Copper Alloy	125 °C	-65 ░C	Tin	Solder	Gold	Flash
3M (TC) 45226-600200	0.05 in	1.27 mm	Keying Slot	Board to Cable/Wire	125 VAC	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)			All	Header	UL94 V-0	Through Hole	26	0.222 "	5.64 mm	Shrouded - 4 Wall	Male Pin	Square	Push-Pull	100 µin	2.54 µm	2	Copper Alloy	125 °C	-65 ░C	Tin	Solder	Gold	Flash	0.094 in	2.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 9.21
		10	$ 8.29
		168	$ 7.41
		504	$ 6.21
		1008	$ 5.49

Description

General part information

45226 Series

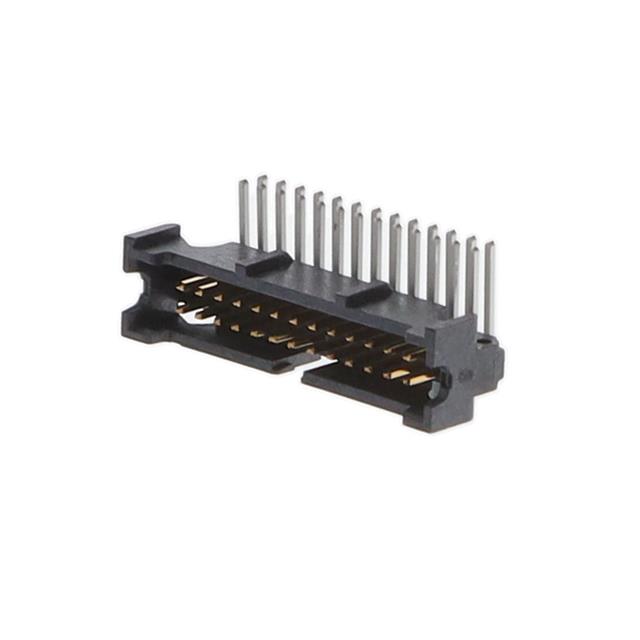

Connector Header Through Hole, Right Angle 26 position 0.050" (1.27mm)
