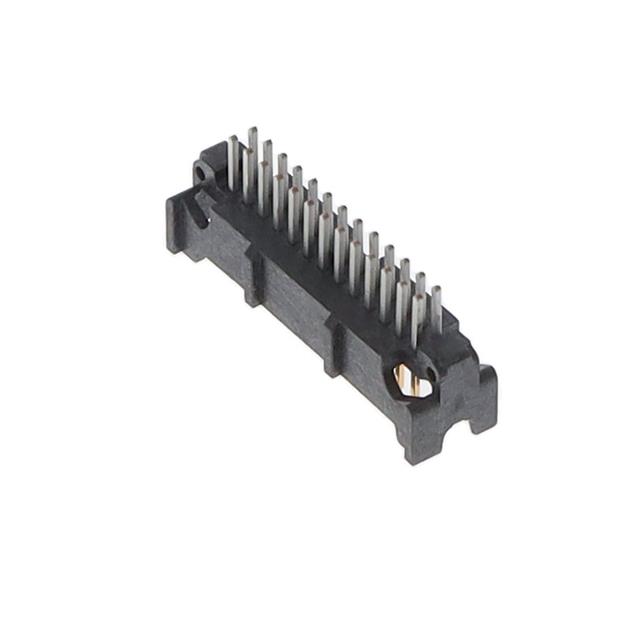

45226-600230
Active3M (TC)
26P HDR ST VTH 30AU
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
45226-600230
Active3M (TC)
26P HDR ST VTH 30AU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 45226-600230 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Length - Post | 0.094 in |
| Contact Length - Post | 2.4 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Keying Slot |
| Insulation Height | 0.222 " |
| Insulation Height | 5.64 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 125 VAC |
45226 Series
| Part | Pitch - Mating | Pitch - Mating | Features | Style | Voltage Rating | Row Spacing - Mating | Row Spacing - Mating | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions Loaded | Connector Type | Material Flammability Rating | Mounting Type | Number of Positions | Insulation Height | Insulation Height | Shrouding | Contact Type | Contact Shape | Fastening Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Rows | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Post | Termination | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 0.05 in | 1.27 mm | Keying Slot Pick and Place | Board to Cable/Wire | 125 VAC | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | 3 µin | 0.076 µm | All | Header | UL94 V-0 | Surface Mount | 26 | 0.222 " | 5.64 mm | Shrouded - 4 Wall | Male Pin | Square | Push-Pull | 200 µin | 5.08 µm | 2 | Copper Alloy | 125 °C | -65 ░C | Tin | Solder | Gold | |||
3M (TC) | 0.05 in | 1.27 mm | Keying Slot Pick and Place | Board to Cable/Wire | 125 VAC | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | All | Header | UL94 V-0 | Surface Mount | 26 | 0.222 " | 5.64 mm | Shrouded - 4 Wall | Male Pin | Square | Latch Lock/Eject Hooks Short | 100 µin | 2.54 µm | 2 | Copper Alloy | 125 °C | -65 ░C | Tin | Solder | Gold | Flash | ||||
3M (TC) | 0.05 in | 1.27 mm | Keying Slot | Board to Cable/Wire | 125 VAC | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | 3 µin | 0.076 µm | All | Header | UL94 V-0 | Through Hole | 26 | 0.222 " | 5.64 mm | Shrouded - 4 Wall | Male Pin | Square | Push-Pull | 200 µin | 5.08 µm | 2 | Copper Alloy | 125 °C | -65 ░C | Tin | Solder | Gold | 0.094 in | 2.4 mm | |
3M (TC) | 0.05 in | 1.27 mm | Keying Slot | Board to Cable/Wire | 125 VAC | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | All | Header | UL94 V-0 | Through Hole Right Angle | 26 | 0.21 in | 5.33 mm | Shrouded - 4 Wall | Male Pin | Square | Latch Lock/Eject Hooks Short | 100 µin | 2.54 µm | 2 | Copper Alloy | 125 °C | -65 ░C | Tin | Solder | Gold | Flash | 0.094 in | 2.4 mm | ||
3M (TC) | 0.05 in | 1.27 mm | Keying Slot | Board to Cable/Wire | 125 VAC | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | 3 µin | 0.076 µm | All | Header | UL94 V-0 | Through Hole Right Angle | 26 | 0.21 in | 5.33 mm | Shrouded - 4 Wall | Male Pin | Square | Latch Lock/Eject Hooks Short | 200 µin | 5.08 µm | 2 | Copper Alloy | 125 °C | -65 ░C | Tin | Solder | Gold | 0.094 in | 2.4 mm | |
3M (TC) | 0.05 in | 1.27 mm | Keying Slot | Board to Cable/Wire | 125 VAC | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | 3 µin | 0.076 µm | All | Header | UL94 V-0 | Through Hole Right Angle | 26 | 0.21 in | 5.33 mm | Shrouded - 4 Wall | Male Pin | Square | Push-Pull | 200 µin | 5.08 µm | 2 | Copper Alloy | 125 °C | -65 ░C | Tin | Solder | Gold | 0.094 in | 2.4 mm | |
3M (TC) | 0.05 in | 1.27 mm | Keying Slot | Board to Cable/Wire | 125 VAC | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | All | Header | UL94 V-0 | Through Hole | 26 | 0.222 " | 5.64 mm | Shrouded - 4 Wall | Male Pin | Square | Latch Lock/Eject Hooks Short | 100 µin | 2.54 µm | 2 | Copper Alloy | 125 °C | -65 ░C | Tin | Solder | Gold | Flash | 0.094 in | 2.4 mm | ||
3M (TC) | 0.05 in | 1.27 mm | Keying Slot | Board to Cable/Wire | 125 VAC | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | All | Header | UL94 V-0 | Through Hole Right Angle | 26 | 0.21 in | 5.33 mm | Shrouded - 4 Wall | Male Pin | Square | Push-Pull | 100 µin | 2.54 µm | 2 | Copper Alloy | 125 °C | -65 ░C | Tin | Solder | Gold | Flash | 0.094 in | 2.4 mm | ||
3M (TC) | 0.05 in | 1.27 mm | Keying Slot Pick and Place | Board to Cable/Wire | 125 VAC | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | All | Header | UL94 V-0 | Surface Mount | 26 | 0.222 " | 5.64 mm | Shrouded - 4 Wall | Male Pin | Square | Push-Pull | 100 µin | 2.54 µm | 2 | Copper Alloy | 125 °C | -65 ░C | Tin | Solder | Gold | Flash | ||||
3M (TC) | 0.05 in | 1.27 mm | Keying Slot | Board to Cable/Wire | 125 VAC | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | All | Header | UL94 V-0 | Through Hole | 26 | 0.222 " | 5.64 mm | Shrouded - 4 Wall | Male Pin | Square | Push-Pull | 100 µin | 2.54 µm | 2 | Copper Alloy | 125 °C | -65 ░C | Tin | Solder | Gold | Flash | 0.094 in | 2.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 7.06 | |
| 10 | $ 5.41 | |||
| 100 | $ 4.20 | |||
| 500 | $ 3.55 | |||
| 1000 | $ 3.32 | |||
Description
General part information
45226 Series
Connector Header Through Hole 26 position 0.050" (1.27mm)
