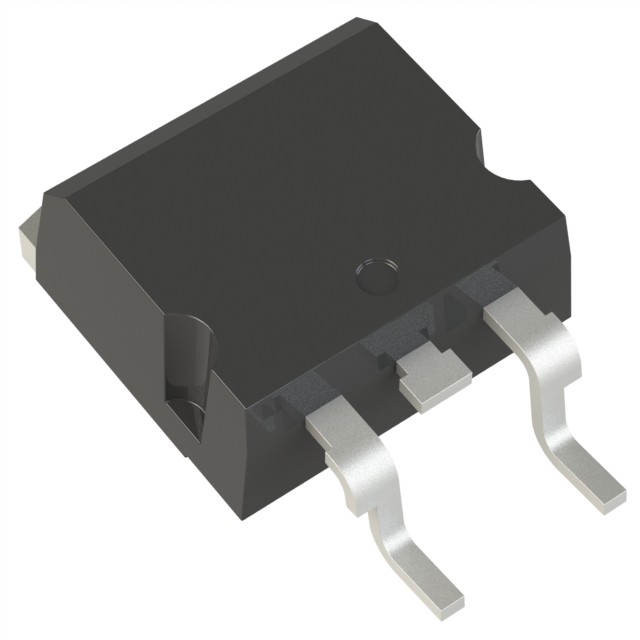

STH60N099DM9-2AG

Active

STMicroelectronics

AUTOMOTIVE-GRADE N-CHANNEL 600 V, 76 MOHM TYP., 27 A MDMESH DM9 POWER MOSFET IN AN H2PAK-2 PACKAGE

Deep-Dive with AI

Search across all available documentation for this part.

Documents UM1575 +16

STH60N099DM9-2AG

Active

STMicroelectronics

AUTOMOTIVE-GRADE N-CHANNEL 600 V, 76 MOHM TYP., 27 A MDMESH DM9 POWER MOSFET IN AN H2PAK-2 PACKAGE

Deep-Dive with AI

Documents UM1575 +16

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STH60N099DM9-2AG

Current - Continuous Drain (Id) @ 25°C	27 A
Drain to Source Voltage (Vdss)	600 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	44 nC
Input Capacitance (Ciss) (Max) @ Vds	2140 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Power Dissipation (Max) [Max]	179 W
Rds On (Max) @ Id, Vgs [Max]	99 mOhm
Supplier Device Package	TO-263 (D2PAK)
Technology	MOSFET (Metal Oxide)
Vgs (Max)	30 V
Vgs(th) (Max) @ Id	4.5 V

STH60N099DM9-2AG Series

Automotive-grade N-channel 600 V, 76 mOhm typ., 27 A MDmesh DM9 Power MOSFET in an H2PAK-2 package

Part	Operating Temperature [Min]	Operating Temperature [Max]	Vgs(th) (Max) @ Id	FET Type	Supplier Device Package	Drive Voltage (Max Rds On, Min Rds On)	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type	Vgs (Max)	Rds On (Max) @ Id, Vgs [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Drain to Source Voltage (Vdss)	Package / Case	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max) [Max]	Technology
STMicroelectronics STH60N099DM9-2AG	-55 °C	150 °C	4.5 V	N-Channel	TO-263 (D2PAK)	10 V	2140 pF	Surface Mount	30 V	99 mOhm	44 nC	600 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	27 A	179 W	MOSFET (Metal Oxide)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.09
		10	$ 4.27
		100	$ 3.45
		500	$ 3.07
	Digi-Reel®	1	$ 5.09
		10	$ 4.27
		100	$ 3.45
		500	$ 3.07
	Tape & Reel (TR)	1000	$ 2.63
		2000	$ 2.48
Newark	Each (Supplied on Cut Tape)	1	$ 5.94
		10	$ 4.21
		25	$ 3.87
		50	$ 3.53
		100	$ 3.19
		250	$ 3.08
		500	$ 2.89
		1000	$ 2.82
