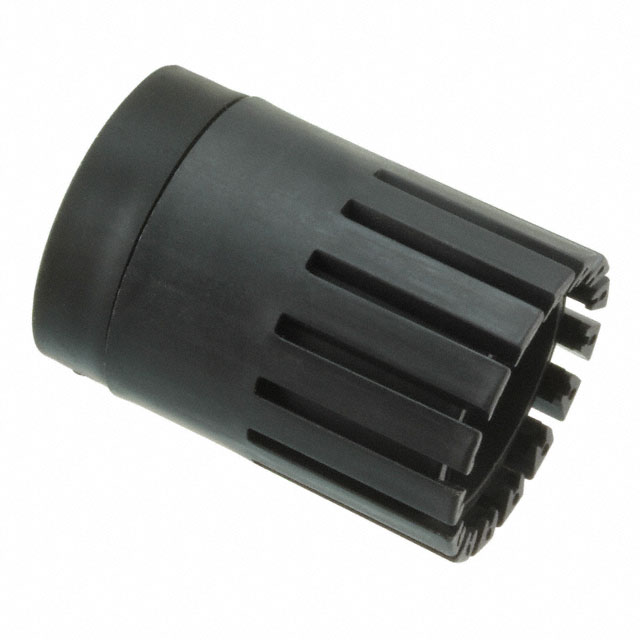

2213351-2

Active

TE Connectivity Raychem Cable Protection

NECTOR M SEAL/CABLE CLAMP ASSEMBLY,17MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

2213351-2

Active

TE Connectivity Raychem Cable Protection

NECTOR M SEAL/CABLE CLAMP ASSEMBLY,17MM

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2213351-2

Accessory Type	Cable Clamp
Color	Black
For Use With/Related Products	Free Hanging (In-Line) Connectors
Material	Polybutylene Terephthalate (PBT), Glass Filled
Specifications	5, 7, 6
Specifications [Max] [diameter]	17 mm
Specifications [Min] [diameter]	14 mm

NECTOR M Series Series

Part	Specifications [Min] [diameter]	Specifications	Specifications [Max] [diameter]	Material	Accessory Type	For Use With/Related Products	Color	Number of Positions	Features	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Housing Material	Current Rating (Amps)	Connector Type	Mounting Type	Voltage Rating	Style
TE Connectivity Raychem Cable Protection 2213351-2	14 mm	5 6 7	17 mm	Polybutylene Terephthalate (PBT) Glass Filled	Cable Clamp	Free Hanging (In-Line) Connectors	Black
TE Connectivity Raychem Cable Protection 1-293722-3								7	Keyed	Crimp	85 °C	-40 °C	Black	Polyamide (PA) Nylon Glass Filled	20 A	Receptacle Housing for Pin Contact	Free Hanging (In-Line)	400 V	Cable/Wire to Cable/Wire or Board
TE Connectivity Raychem Cable Protection 1-293469-1									Keyed	Crimp	85 °C	-40 °C	Black	Polyamide (PA) Nylon Glass Filled	16 A 20 A	Receptacle Housing for Pin Contact	Free Hanging (In-Line)	400 V	Cable/Wire to Cable/Wire or Board
TE Connectivity Raychem Cable Protection 1-293721-3								7	Keyed	Crimp	85 °C	-40 °C	Black	Polyamide (PA) Nylon Glass Filled	20 A	Plug Housing for Socket Contact	Free Hanging (In-Line)	400 V	Cable/Wire to Cable/Wire or Board
TE Connectivity Raychem Cable Protection 1-293468-1									Keyed	Crimp	85 °C	-40 °C	Black	Polyamide (PA) Nylon Glass Filled	16 A 20 A	Plug Housing for Socket Contact	Free Hanging (In-Line)	400 V	Cable/Wire to Cable/Wire or Board
TE Connectivity Raychem Cable Protection 293722-2								7	Keyed	Crimp	85 °C	-40 °C	Natural	Polyamide (PA) Nylon Glass Filled	20 A	Receptacle Housing for Pin Contact	Free Hanging (In-Line)	400 V	Cable/Wire to Cable/Wire or Board
TE Connectivity Raychem Cable Protection 293722-3								7	Keyed	Crimp	85 °C	-40 °C	Natural	Polyamide (PA) Nylon Glass Filled	20 A	Receptacle Housing for Pin Contact	Free Hanging (In-Line)	400 V	Cable/Wire to Cable/Wire or Board
TE Connectivity Raychem Cable Protection 1-293722-2								7	Keyed	Crimp	85 °C	-40 °C	Black	Polyamide (PA) Nylon Glass Filled	20 A	Receptacle Housing for Pin Contact	Free Hanging (In-Line)	400 V	Cable/Wire to Cable/Wire or Board

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10000	$ 0.84

Description

General part information

NECTOR M Series Series

Wire-to-Wire, Wire & Cable, PBT, NECTOR M Series

Documents

Technical documentation and resources

Datasheet

Digital Datasheet
