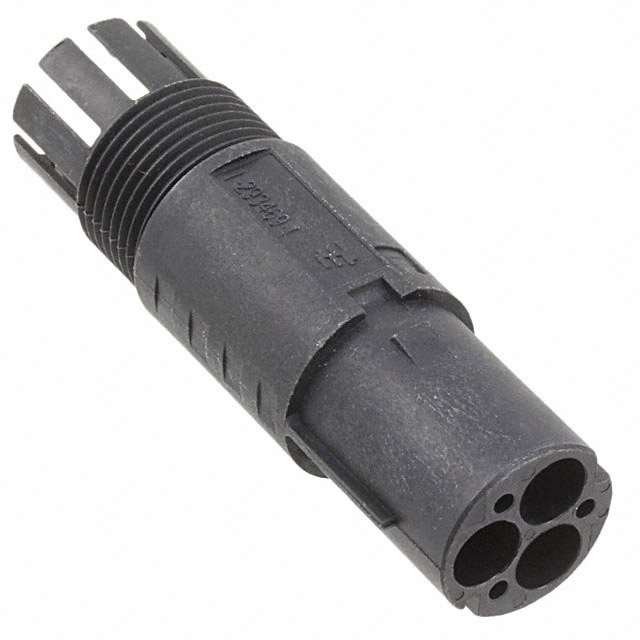

1-293469-1
ActiveTE Connectivity Raychem Cable Protection
NECTOR M PIN HSG FREE HANGING CODE A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-293469-1 |
|---|---|
| Connector Type | Receptacle Housing for Pin Contact |
| Current Rating (Amps) | 20 A, 16 A |
| Features | Keyed |
| Housing Color | Black |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Cable/Wire to Cable/Wire or Board |
| Termination | Crimp |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2400 | $ 1.00 | |
Description
General part information
NECTOR M Series Series
3 Position Circular Connector, Wire-to-Wire, Wire & Cable, Power, Cable Mount (Free-Hanging), A Code, Polyamide GF, Plug, Pin, NECTOR M Series
