IL-AG9-3PL-S3L2

Active

JAE Electronics

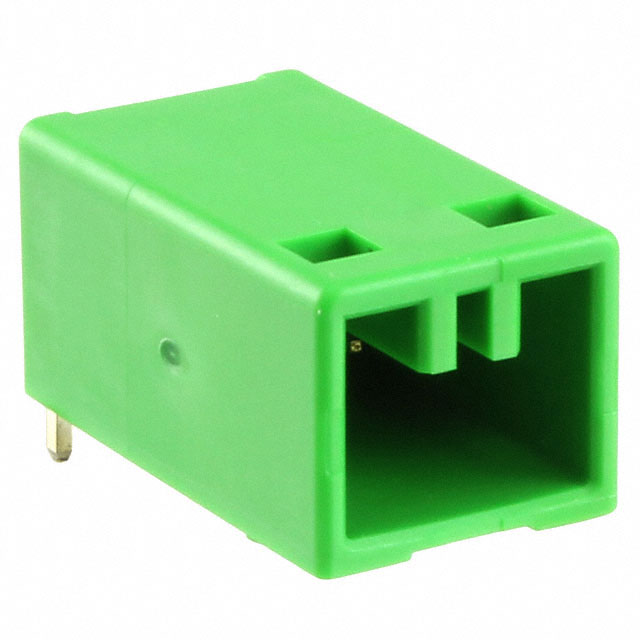

CONN HEADER R/A 3POS 2.5MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN HEADER R/A 3POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	IL-AG9-3PL-S3L2

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	8.2 mm
Contact Length - Mating	0.323 in
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Green
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Connector Type	Number of Rows	Contact Type	Pitch [x]	Pitch [x]	Note	Color	Insulation Material	Contact Termination	Mounting Type	Fastening Type	Current Rating (Amps)	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Insulation Height [custom]	Insulation Height [custom]	Shrouding	Features	Contact Material	Style	Contact Shape	Termination	Applications
JAE Electronics IL-AG9-3S-S3C1	Receptacle	1	Female Socket	0.098 in	2.5 mm	Contacts Not Included	Green	Polybutylene Terephthalate (PBT)	Crimp	Free Hanging (In-Line)	Latch Lock
JAE Electronics IL-AG9-3PL-S3L2	Header	1	Male Pin					Polybutylene Terephthalate (PBT)		Through Hole Right Angle	Latch Holder	3 A	Green	85 °C	-40 °C	3.5 mm	0.138 in	All	2.5 mm	0.098 in	Tin	8.2 mm	0.323 in	0.35 in	8.89 mm	Shrouded - 4 Wall	Board Guide	Brass	Board to Cable/Wire	Square	Solder	Automotive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2940	$ 1.50

General part information

Connector Header Through Hole, Right Angle 3 position 0.098" (2.50mm)
