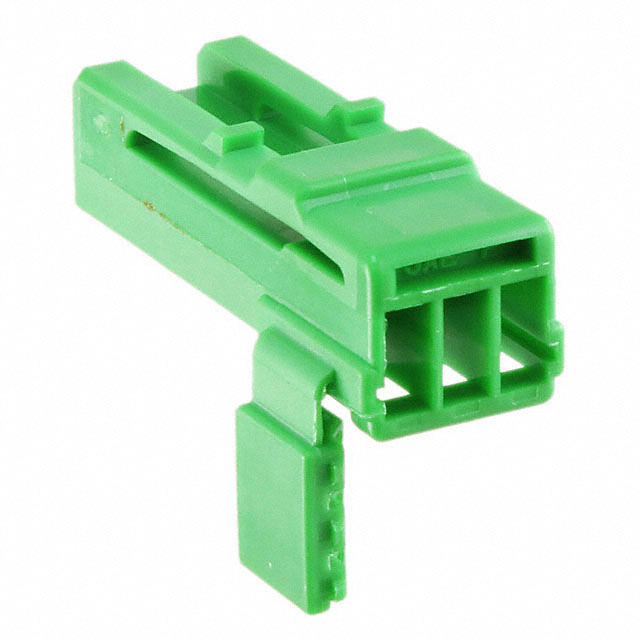

IL-AG9-3S-S3C1

Active

JAE Electronics

CONN RCPT HSG 3POS 2.50MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT HSG 3POS 2.50MM

Technical Specifications

Parameters and characteristics for this part

Specification	IL-AG9-3S-S3C1

Color	Green
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Pitch [x]	0.098 in
Pitch [x]	2.5 mm

Part	Connector Type	Number of Rows	Contact Type	Pitch [x]	Pitch [x]	Note	Color	Insulation Material	Contact Termination	Mounting Type	Fastening Type	Current Rating (Amps)	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Insulation Height [custom]	Insulation Height [custom]	Shrouding	Features	Contact Material	Style	Contact Shape	Termination	Applications
JAE Electronics IL-AG9-3S-S3C1	Receptacle	1	Female Socket	0.098 in	2.5 mm	Contacts Not Included	Green	Polybutylene Terephthalate (PBT)	Crimp	Free Hanging (In-Line)	Latch Lock
JAE Electronics IL-AG9-3PL-S3L2	Header	1	Male Pin					Polybutylene Terephthalate (PBT)		Through Hole Right Angle	Latch Holder	3 A	Green	85 °C	-40 °C	3.5 mm	0.138 in	All	2.5 mm	0.098 in	Tin	8.2 mm	0.323 in	0.35 in	8.89 mm	Shrouded - 4 Wall	Board Guide	Brass	Board to Cable/Wire	Square	Solder	Automotive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Rectangular Connectors - Housings Receptacle Green 0.098" (2.50mm)
