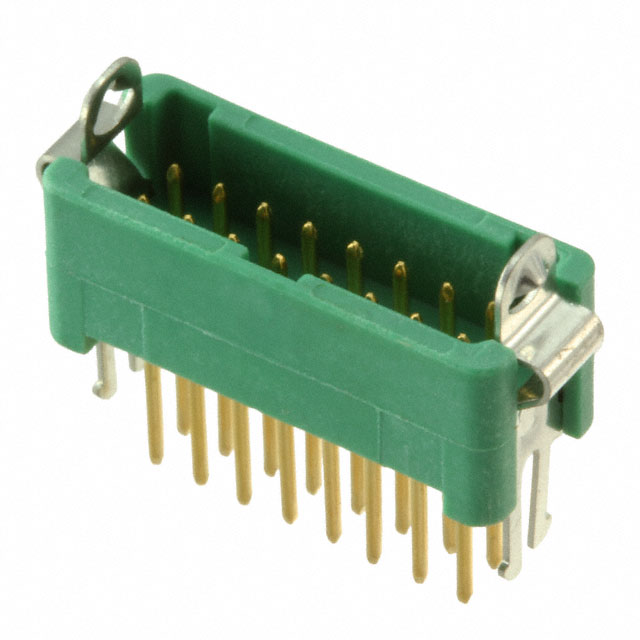

G125-MV21605L2R
ActiveHarwin Inc.
8+8 POS. MALE DIL VERTICAL THROUGHBOARD CONN. LATCHES (T+R) ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
G125-MV21605L2R
ActiveHarwin Inc.
8+8 POS. MALE DIL VERTICAL THROUGHBOARD CONN. LATCHES (T+R) ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G125-MV21605L2R |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 0.203 Ám |
| Contact Finish Thickness - Mating | 8 Áin |
| Contact Length - Post | 0.177 in |
| Contact Length - Post | 4.5 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2 A |
| Fastening Type | Latch Lock |
| Features | Pick and Place, Board Lock |
| Insulation Color | Green |
| Insulation Height | 4.9 mm |
| Insulation Height | 0.193 in |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled |
| Mated Stacking Heights | 7.25 mm, 7.35 mm, 7.7 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Row Spacing - Mating | 0.049 in |
| Row Spacing - Mating | 1.25 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
G125-MV2 Series
Connector Header Through Hole 16 position 0.049" (1.25mm)
