G125-MV21005L2P
ActiveHarwin Inc.

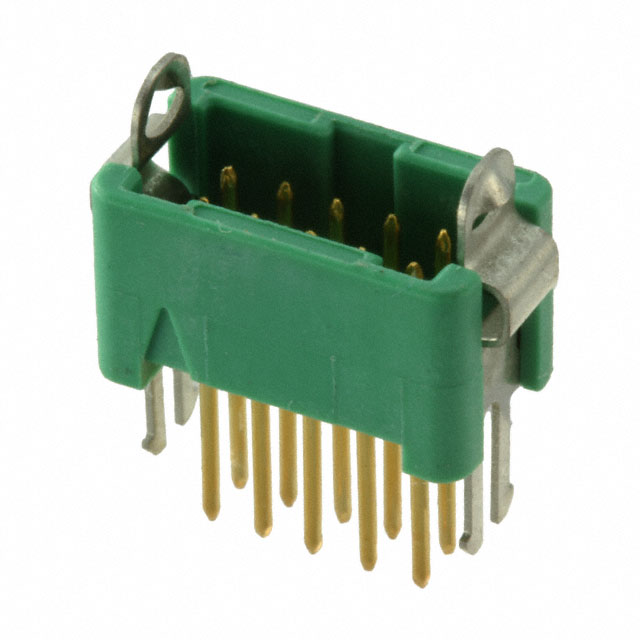

5+5 POS. MALE DIL VERTICAL THROUGHBOARD CONN. LATCHES ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
G125-MV21005L2P
ActiveHarwin Inc.
5+5 POS. MALE DIL VERTICAL THROUGHBOARD CONN. LATCHES ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G125-MV21005L2P |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 0.203 Ám |
| Contact Finish Thickness - Mating | 8 Áin |
| Contact Length - Post | 0.177 in |
| Contact Length - Post | 4.5 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2 A |
| Fastening Type | Latch Lock |
| Features | Pick and Place, Board Lock |
| Insulation Color | Green |
| Insulation Height | 4.9 mm |
| Insulation Height | 0.193 in |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled |
| Mated Stacking Heights | 7.25 mm, 7.35 mm, 7.7 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Row Spacing - Mating | 0.049 in |
| Row Spacing - Mating | 1.25 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
G125-MV2 Series
| Part | Contact Finish - Mating | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Contact Material | Current Rating (Amps) | Features | Row Spacing - Mating | Row Spacing - Mating | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Insulation Material | Mounting Type | Number of Positions Loaded | Style | Mated Stacking Heights | Contact Shape | Material Flammability Rating | Connector Type | Contact Length - Post | Contact Length - Post | Number of Positions | Insulation Color | Insulation Height | Insulation Height | Shrouding | Number of Rows | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Gold | Push-Pull | -65 ░C | 150 °C | Male Pin | Phosphor Bronze | 2 A | Board Lock Pick and Place | 0.049 in | 1.25 mm | Solder | 0.203 Ám | 8 Áin | 1.25 mm | 0.049 in | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Through Hole | All | Board to Board Cable | 7.25 mm 7.35 mm 7.7 mm | Circular | UL94 V-0 | Header | 0.177 in | 4.5 mm | 12 | Green | 4.9 mm | 0.193 in | Shrouded - 4 Wall | 2 | |
Harwin Inc. | Gold | Latch Lock | -65 ░C | 150 °C | Male Pin | Phosphor Bronze | 2 A | Board Lock Pick and Place | 0.049 in | 1.25 mm | Solder | 0.203 Ám | 8 Áin | 1.25 mm | 0.049 in | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Through Hole | All | Board to Board Cable | 7.25 mm 7.35 mm 7.7 mm | Circular | UL94 V-0 | Header | 0.177 in | 4.5 mm | 26 | Green | 4.9 mm | 0.193 in | Shrouded - 4 Wall | 2 | |
Harwin Inc. | Gold | Push-Pull | -65 ░C | 150 °C | Male Pin | Phosphor Bronze | 2 A | Board Lock Pick and Place | 0.049 in | 1.25 mm | Solder | 0.203 Ám | 8 Áin | 1.25 mm | 0.049 in | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Through Hole | All | Board to Board Cable | 7.25 mm 7.35 mm 7.7 mm | Circular | UL94 V-0 | Header | 0.177 in | 4.5 mm | 26 | Green | 4.9 mm | 0.193 in | Shrouded - 4 Wall | 2 | |
Harwin Inc. | Gold | Latch Lock | -65 ░C | 150 °C | Male Pin | Phosphor Bronze | 2 A | Board Lock Pick and Place | 0.049 in | 1.25 mm | Solder | 0.203 Ám | 8 Áin | 1.25 mm | 0.049 in | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Through Hole | All | Board to Board Cable | 7.25 mm 7.35 mm 7.7 mm | Circular | UL94 V-0 | Header | 0.177 in | 4.5 mm | Green | 4.9 mm | 0.193 in | Shrouded - 4 Wall | 2 | 16 | |
Harwin Inc. | Gold | Push-Pull | -65 ░C | 150 °C | Male Pin | Phosphor Bronze | 2 A | Board Lock Pick and Place | 0.049 in | 1.25 mm | Solder | 0.203 Ám | 8 Áin | 1.25 mm | 0.049 in | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Through Hole | All | Board to Board Cable | 7.25 mm 7.35 mm 7.7 mm | Circular | UL94 V-0 | Header | 0.177 in | 4.5 mm | Green | 4.9 mm | 0.193 in | Shrouded - 4 Wall | 2 | 16 | |
Harwin Inc. | Gold | Latch Lock | -65 ░C | 150 °C | Male Pin | Phosphor Bronze | 2 A | Board Lock Pick and Place | 0.049 in | 1.25 mm | Solder | 0.203 Ám | 8 Áin | 1.25 mm | 0.049 in | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Through Hole | All | Board to Board Cable | 7.25 mm 7.35 mm 7.7 mm | Circular | UL94 V-0 | Header | 0.177 in | 4.5 mm | 10 | Green | 4.9 mm | 0.193 in | Shrouded - 4 Wall | 2 | |
Harwin Inc. | Gold | Latch Lock | -65 ░C | 150 °C | Male Pin | Phosphor Bronze | 2 A | Board Lock Pick and Place | 0.049 in | 1.25 mm | Solder | 0.203 Ám | 8 Áin | 1.25 mm | 0.049 in | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Through Hole | All | Board to Board Cable | 7.25 mm 7.35 mm 7.7 mm | Circular | UL94 V-0 | Header | 0.177 in | 4.5 mm | 20 | Green | 4.9 mm | 0.193 in | Shrouded - 4 Wall | 2 | |
Harwin Inc. | Gold | Latch Lock | -65 ░C | 150 °C | Male Pin | Phosphor Bronze | 2 A | Board Lock Pick and Place | 0.049 in | 1.25 mm | Solder | 0.203 Ám | 8 Áin | 1.25 mm | 0.049 in | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Through Hole | All | Board to Board Cable | 7.25 mm 7.35 mm 7.7 mm | Circular | UL94 V-0 | Header | 0.177 in | 4.5 mm | 12 | Green | 4.9 mm | 0.193 in | Shrouded - 4 Wall | 2 | |
Harwin Inc. | Gold | Push-Pull | -65 ░C | 150 °C | Male Pin | Phosphor Bronze | 2 A | Board Lock Pick and Place | 0.049 in | 1.25 mm | Solder | 0.203 Ám | 8 Áin | 1.25 mm | 0.049 in | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Through Hole | All | Board to Board Cable | 7.25 mm 7.35 mm 7.7 mm | Circular | UL94 V-0 | Header | 0.177 in | 4.5 mm | 34 | Green | 4.9 mm | 0.193 in | Shrouded - 4 Wall | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
G125-MV2 Series
Connector Header Through Hole 10 position 0.049" (1.25mm)
