MS3106F14S-6S

Active

ITT Cannon, LLC

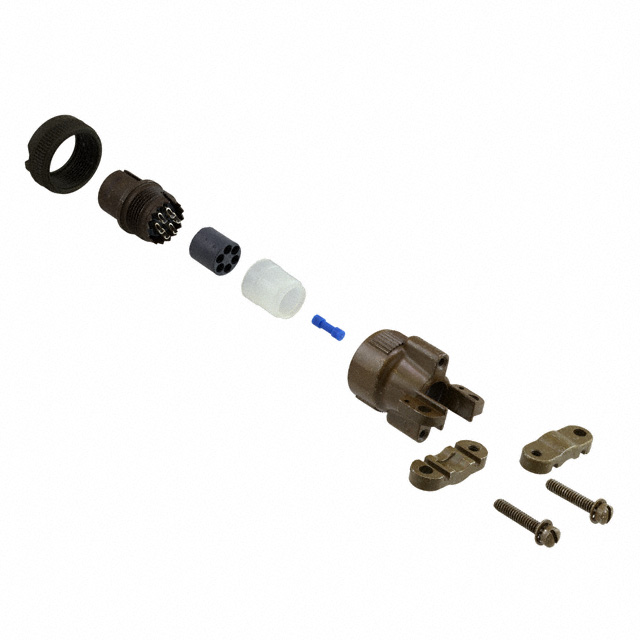

CIRCULAR CONNECTOR, MIL-DTL-5015 SERIES, MS3106 SERIES, STRAIGHT PLUG, 6 CONTACTS, SOLDER SOCKET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

MS3106F14S-6S

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-5015 SERIES, MS3106 SERIES, STRAIGHT PLUG, 6 CONTACTS, SOLDER SOCKET

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106F14S-6S

Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Current Rating (Amps)	22 A
Features	Coupling Nut, Cable Clamp
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	14S-6
Voltage Rating	250 VDC, 200 VAC

MS3106F14 Series

Part	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shell Finish	Ingress Protection	Shell Material	Voltage Rating	Mounting Type	Current Rating (Amps)	Features	Primary Material	Shell Size - Insert	Contact Finish - Mating	Orientation	Qualification	Color	Number of Positions
ITT Cannon, LLC MS3106F14S-5S	Military	-55 °C	125 °C	Female Sockets Plug	Olive Drab Cadmium	Environment Resistant	Aluminum Alloy	200 VAC 250 VDC	Free Hanging (In-Line)	22 A	Cable Clamp Coupling Nut	Metal	14S-5	Silver	N	MIL-DTL-5015	Olive Drab
ITT Cannon, LLC MS3106F14S-5P	Military	-55 °C	125 °C	Male Pins Plug	Olive Drab Cadmium	Environment Resistant	Aluminum Alloy	200 VAC 250 VDC	Free Hanging (In-Line)	22 A	Cable Clamp Coupling Nut	Metal	14S-5	Silver	N	MIL-DTL-5015	Olive Drab
ITT Cannon, LLC MS3106F14S-6S	Military	-55 °C	125 °C	Female Sockets Plug	Olive Drab Cadmium	Environment Resistant	Aluminum Alloy	200 VAC 250 VDC	Free Hanging (In-Line)	22 A	Cable Clamp Coupling Nut	Metal	14S-6	Silver	N	MIL-DTL-5015	Olive Drab	6
ITT Cannon, LLC MS3106F14S-2P	Military															MIL-DTL-5015

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	5	$ 48.95
	Bulk	1	$ 57.40
		10	$ 44.49
		25	$ 40.39
		50	$ 37.63
		100	$ 35.13
		250	$ 32.19
Newark	Each	1	$ 48.25
		5	$ 43.78
		10	$ 39.33
		25	$ 36.26
		50	$ 34.10
		100	$ 32.69

Description

General part information

MS3106F14 Series

The MS3106F14S-6S is a 6-way Solder Plug is designed with silver-plated copper contacts. The MIL-C-5015 series connector has coupling thread and end bell with cable clamp. It is designed to operate in the extreme environmental conditions of high altitude, moisture, condensation and vibration.
