MS3106F14S-5S

Active

ITT Cannon, LLC

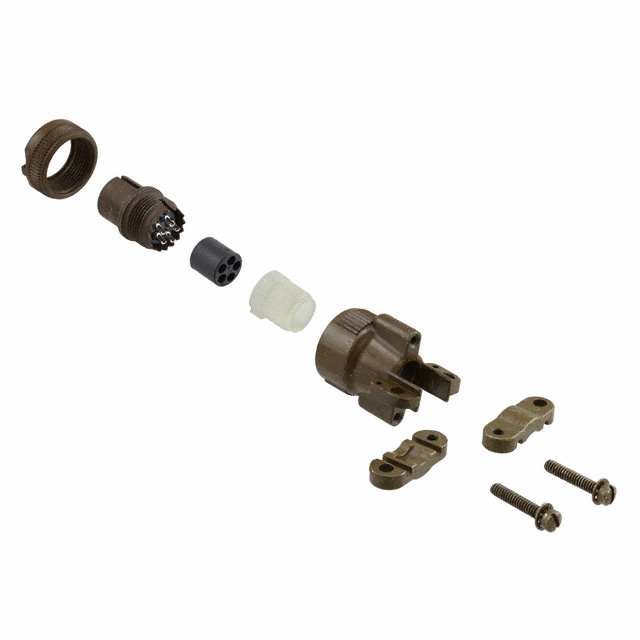

CIRCULAR CONNECTOR, MIL-DTL-5015 SERIES, STRAIGHT PLUG, 5 CONTACTS, SOLDER SOCKET, THREADED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

MS3106F14S-5S

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-5015 SERIES, STRAIGHT PLUG, 5 CONTACTS, SOLDER SOCKET, THREADED

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106F14S-5S

Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Current Rating (Amps)	22 A
Features	Coupling Nut, Cable Clamp
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	14S-5
Voltage Rating	250 VDC, 200 VAC

MS3106F14 Series

Part	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shell Finish	Ingress Protection	Shell Material	Voltage Rating	Mounting Type	Current Rating (Amps)	Features	Primary Material	Shell Size - Insert	Contact Finish - Mating	Orientation	Qualification	Color	Number of Positions
ITT Cannon, LLC MS3106F14S-5S	Military	-55 °C	125 °C	Female Sockets Plug	Olive Drab Cadmium	Environment Resistant	Aluminum Alloy	200 VAC 250 VDC	Free Hanging (In-Line)	22 A	Cable Clamp Coupling Nut	Metal	14S-5	Silver	N	MIL-DTL-5015	Olive Drab
ITT Cannon, LLC MS3106F14S-5P	Military	-55 °C	125 °C	Male Pins Plug	Olive Drab Cadmium	Environment Resistant	Aluminum Alloy	200 VAC 250 VDC	Free Hanging (In-Line)	22 A	Cable Clamp Coupling Nut	Metal	14S-5	Silver	N	MIL-DTL-5015	Olive Drab
ITT Cannon, LLC MS3106F14S-6S	Military	-55 °C	125 °C	Female Sockets Plug	Olive Drab Cadmium	Environment Resistant	Aluminum Alloy	200 VAC 250 VDC	Free Hanging (In-Line)	22 A	Cable Clamp Coupling Nut	Metal	14S-6	Silver	N	MIL-DTL-5015	Olive Drab	6
ITT Cannon, LLC MS3106F14S-2P	Military															MIL-DTL-5015

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 44.99
Digikey	Bulk	1	$ 56.68
		10	$ 43.93
		25	$ 39.88
		50	$ 37.16
		100	$ 34.68
		250	$ 31.78
LCSC	Piece	1	$ 18.28
		200	$ 7.30
		500	$ 7.05
		1000	$ 6.93
Newark	Each	1	$ 40.39
		5	$ 39.40
		10	$ 38.64
		25	$ 37.35
		50	$ 36.54
		100	$ 35.97
		250	$ 35.59

Description

General part information

MS3106F14 Series

The MS3106F14S-5S from ITT Cannon is MIL-DTL-5015 series straight plug with 5 contacts. MIL-DTL-5015 series connectors are available in a wide range of shell materials and finishes with 48 and 500 hour salt spray plating exposure. These connectors offer high density contact arrangements in a miniature circular shell and combines high coupling durability in medium to heavy weight cylindrical construction. It has a well-proven electrical capability and is designed to withstand extreme shock, exposure and vibration.
