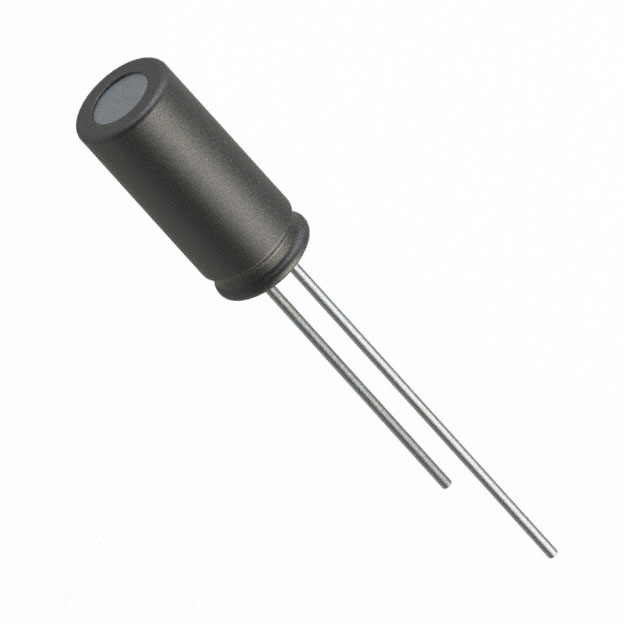

ESH107M010AC3AA

Active

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 10V, 20% +TOL, 20% -TOL, 100UF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

Search across all available documentation for this part.

Active

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 10V, 20% +TOL, 20% -TOL, 100UF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	ESH107M010AC3AA

Applications	General Purpose
Capacitance	100 µF
Height - Seated (Max) [Max]	0.492 in
Height - Seated (Max) [Max]	12.5 mm
Lead Spacing	2 mm
Lead Spacing	0.079 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	165 mA
Ripple Current @ Low Frequency	110 mA
Size / Dimension [diameter]	5 mm
Size / Dimension [diameter]	0.197 "
Tolerance	20 %
Voltage - Rated	10 V

Part	Polarization	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Voltage - Rated	Mounting Type	Tolerance	Ripple Current @ Low Frequency	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ESH107M200AM7AA	Polar	560 mA	1.063 in	27 mm	7.5 mm	0.295 in	200 V	Through Hole	20 %	350 mA	2000 Hrs	0.63 in	16 mm	General Purpose	-25 °C	105 ░C	Radial Can	100 µF
KEMET ESH107M010AC3AA	Polar	165 mA			2 mm	0.079 in	10 V	Through Hole	20 %	110 mA	2000 Hrs	0.197 "	5 mm	General Purpose	-40 °C	105 ░C	Radial Can	100 µF	0.492 in	12.5 mm
KEMET ESH107M450AN2AA	Polar	792 mA	1.496 in	38 mm	7.5 mm	0.295 in	450 V	Through Hole	20 %	495 mA	2000 Hrs	0.709 "	18 mm	General Purpose	-25 °C	105 ░C	Radial Can	100 µF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
