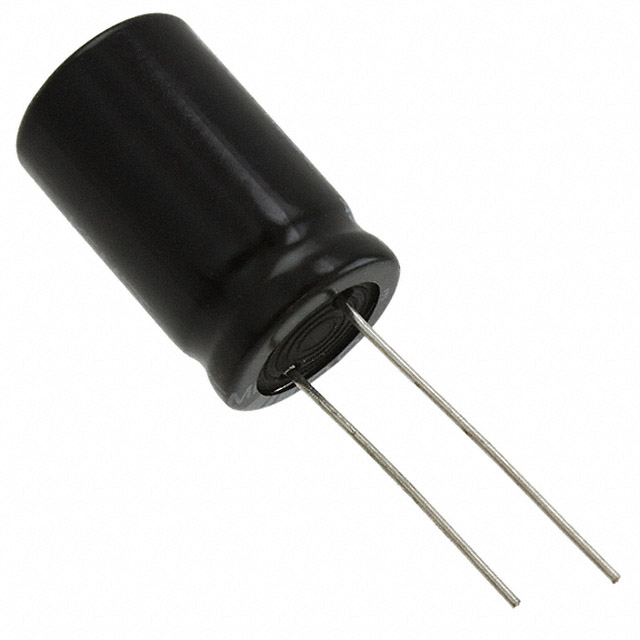

ESH107M200AM7AA

Active

KEMET

CAP, 100ΜF, 200V, 20% ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

CAP, 100ΜF, 200V, 20% ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	ESH107M200AM7AA

Applications	General Purpose
Capacitance	100 µF
Height - Seated (Max) [Max] [z]	1.063 in
Height - Seated (Max) [Max] [z]	27 mm
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	560 mA
Ripple Current @ Low Frequency	350 mA
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Tolerance	20 %
Voltage - Rated	200 V

Part	Polarization	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Voltage - Rated	Mounting Type	Tolerance	Ripple Current @ Low Frequency	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ESH107M200AM7AA	Polar	560 mA	1.063 in	27 mm	7.5 mm	0.295 in	200 V	Through Hole	20 %	350 mA	2000 Hrs	0.63 in	16 mm	General Purpose	-25 °C	105 ░C	Radial Can	100 µF
KEMET ESH107M010AC3AA	Polar	165 mA			2 mm	0.079 in	10 V	Through Hole	20 %	110 mA	2000 Hrs	0.197 "	5 mm	General Purpose	-40 °C	105 ░C	Radial Can	100 µF	0.492 in	12.5 mm
KEMET ESH107M450AN2AA	Polar	792 mA	1.496 in	38 mm	7.5 mm	0.295 in	450 V	Through Hole	20 %	495 mA	2000 Hrs	0.709 "	18 mm	General Purpose	-25 °C	105 ░C	Radial Can	100 µF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 µF 200 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
