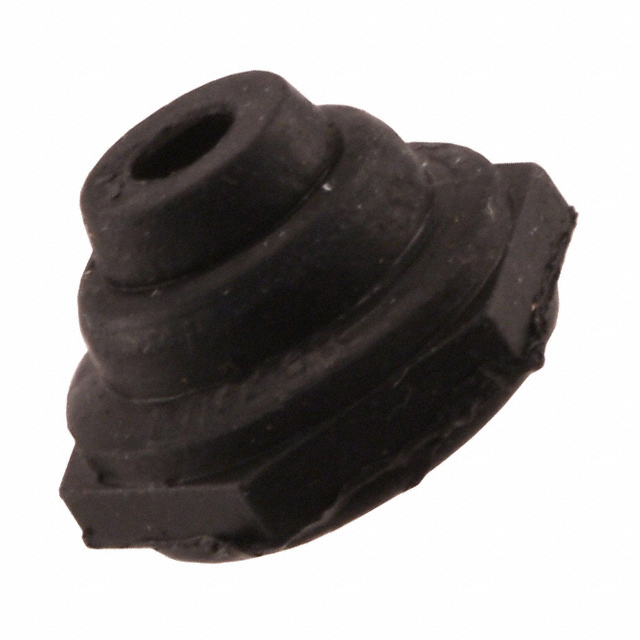

N1030B 160 ID BLACK

Active

APM HEXSEAL

TOGGLE HALF BOOT BLACK

Search across all available documentation for this part.

Active

APM HEXSEAL

TOGGLE HALF BOOT BLACK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TOGGLE HALF BOOT BLACK

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	N1030B 160 ID BLACK	N1030 Series

Actuator Diameter [diameter]	7.39 mm	5.55 - 7.39 mm
Actuator Diameter [diameter]	0.291 in	0.219 - 0.291 in
Color	Black	Black, Gray
Features	-	Nickel Plated Brass Cap
For Use With/Related Products	Multiple Series	Multiple Series
Ingress Protection	IP66/IP68	IP66/IP68
Material	Silicone Rubber	Silicone Rubber
Mounting Feature	Front of Panel	Front of Panel
Operating Temperature [Max]	204 °C	204 °C
Operating Temperature [Min]	-70 °C	-70 °C
Size / Dimension [z]	11.1 mm	11.1 - 22.22 mm
Size / Dimension [z]	0.437 in	0.437 - 0.875 in
Thread Size	15/32-32 NS-2B	15/32-32 NS-2B
Type	Toggle, Half Boot	Toggle, Half Boot, Full Boot

TOGGLE HALF BOOT BLACK

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	For Use With/Related Products	Material	Size / Dimension [z]	Size / Dimension [z]	Thread Size	Ingress Protection	Color	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Type	Features
APM HEXSEAL N1030B 17	204 °C	-70 °C	Front of Panel	Multiple Series	Silicone Rubber	11.1 mm	0.437 in	15/32-32 NS-2B	IP66/IP68	Black	0.24 in	6.09 mm	Half Boot, Toggle
APM HEXSEAL N1030 1	204 °C	-70 °C	Front of Panel	Multiple Series	Silicone Rubber	21.44 mm	0.844 in	15/32-32 NS-2B	IP66/IP68	Gray	0.219 in	5.55 mm	Full Boot, Toggle
APM HEXSEAL N1030B 160 ID BLACK	204 °C	-70 °C	Front of Panel	Multiple Series	Silicone Rubber	11.1 mm	0.437 in	15/32-32 NS-2B	IP66/IP68	Black	0.291 in	7.39 mm	Half Boot, Toggle
APM HEXSEAL N1030A 1	204 °C	-70 °C	Front of Panel	Multiple Series	Silicone Rubber	22.22 mm	0.875 "	15/32-32 NS-2B	IP66/IP68	Gray	0.219 in	5.55 mm	Full Boot, Toggle	Nickel Plated Brass Cap
APM HEXSEAL N1030 17	204 °C	-70 °C	Front of Panel	Multiple Series	Silicone Rubber	21.44 mm	0.844 in	15/32-32 NS-2B	IP66/IP68	Black	0.219 in	5.55 mm	Full Boot, Toggle
APM HEXSEAL N1030B	204 °C	-70 °C	Front of Panel	Multiple Series	Silicone Rubber	11.1 mm	0.437 in	15/32-32 NS-2B	IP66/IP68	Gray	0.24 in	6.09 mm	Half Boot, Toggle
APM HEXSEAL N1030B 160 ID	204 °C	-70 °C	Front of Panel	Multiple Series	Silicone Rubber	11.1 mm	0.437 in	15/32-32 NS-2B	IP66/IP68	Gray	0.291 in	7.39 mm	Half Boot, Toggle
