Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.82 | |
| 10 | $ 3.72 | |||
| 25 | $ 3.67 | |||
| 50 | $ 3.62 | |||
| 100 | $ 3.57 | |||
| 250 | $ 3.52 | |||
| 500 | $ 3.42 | |||
| 1000 | $ 2.91 | |||
General part information

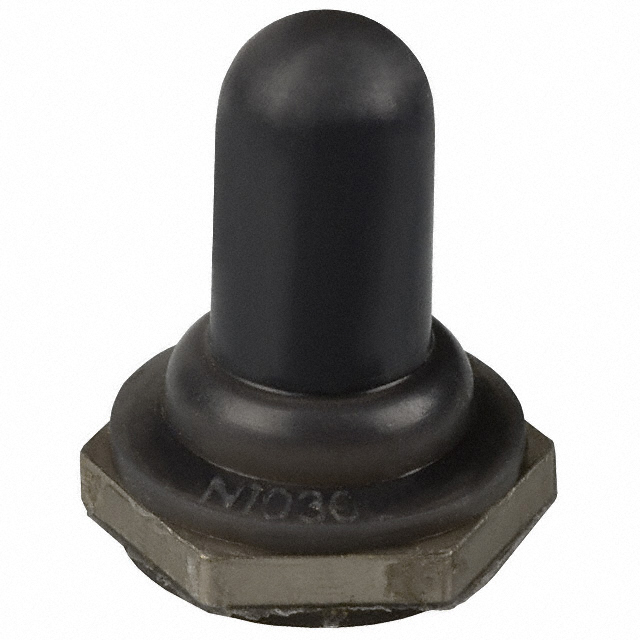

TOGGLE FULL BOOT GRAY
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | N1030 1 | N1030 Series |
|---|---|---|
| Actuator Diameter [diameter] | 5.55 mm | 5.55 - 7.39 mm |
| Actuator Diameter [diameter] | 0.219 in | 0.219 - 0.291 in |
| Color | Gray | Black, Gray |
| Features | - | Nickel Plated Brass Cap |
| For Use With/Related Products | Multiple Series | Multiple Series |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Material | Silicone Rubber | Silicone Rubber |
| Mounting Feature | Front of Panel | Front of Panel |
| Operating Temperature [Max] | 204 °C | 204 °C |
| Operating Temperature [Min] | -70 °C | -70 °C |
| Size / Dimension [z] | 0.844 in | 0.437 - 0.875 in |
| Size / Dimension [z] | 21.44 mm | 11.1 - 22.22 mm |
| Thread Size | 15/32-32 NS-2B | 15/32-32 NS-2B |
| Type | Full Boot, Toggle | Toggle, Half Boot, Full Boot |
TOGGLE HALF BOOT BLACK
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Feature | For Use With/Related Products | Material | Size / Dimension [z] | Size / Dimension [z] | Thread Size | Ingress Protection | Color | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
APM HEXSEAL N1030B 17 | 204 °C | -70 °C | Front of Panel | Multiple Series | Silicone Rubber | 11.1 mm | 0.437 in | 15/32-32 NS-2B | IP66/IP68 | Black | 0.24 in | 6.09 mm | Half Boot, Toggle | |
APM HEXSEAL N1030 1 | 204 °C | -70 °C | Front of Panel | Multiple Series | Silicone Rubber | 21.44 mm | 0.844 in | 15/32-32 NS-2B | IP66/IP68 | Gray | 0.219 in | 5.55 mm | Full Boot, Toggle | |
APM HEXSEAL N1030B 160 ID BLACK | 204 °C | -70 °C | Front of Panel | Multiple Series | Silicone Rubber | 11.1 mm | 0.437 in | 15/32-32 NS-2B | IP66/IP68 | Black | 0.291 in | 7.39 mm | Half Boot, Toggle | |
APM HEXSEAL N1030A 1 | 204 °C | -70 °C | Front of Panel | Multiple Series | Silicone Rubber | 22.22 mm | 0.875 " | 15/32-32 NS-2B | IP66/IP68 | Gray | 0.219 in | 5.55 mm | Full Boot, Toggle | Nickel Plated Brass Cap |
APM HEXSEAL N1030 17 | 204 °C | -70 °C | Front of Panel | Multiple Series | Silicone Rubber | 21.44 mm | 0.844 in | 15/32-32 NS-2B | IP66/IP68 | Black | 0.219 in | 5.55 mm | Full Boot, Toggle | |
APM HEXSEAL N1030B | 204 °C | -70 °C | Front of Panel | Multiple Series | Silicone Rubber | 11.1 mm | 0.437 in | 15/32-32 NS-2B | IP66/IP68 | Gray | 0.24 in | 6.09 mm | Half Boot, Toggle | |
APM HEXSEAL N1030B 160 ID | 204 °C | -70 °C | Front of Panel | Multiple Series | Silicone Rubber | 11.1 mm | 0.437 in | 15/32-32 NS-2B | IP66/IP68 | Gray | 0.291 in | 7.39 mm | Half Boot, Toggle |
