3319/09
Active3M (TC)
80001236316 3319/09 300=9/CAB/RC/HFLX/28AWG/STR/.050 /300
Deep-Dive with AI
Search across all available documentation for this part.
3319/09
Active3M (TC)
80001236316 3319/09 300=9/CAB/RC/HFLX/28AWG/STR/.050 /300
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3319/09 |
|---|---|
| Cable Type | Flat Cable |
| Conductor Material | Copper Alloy, Silver Coated |
| Conductor Strand [custom] | 19 Strands |
| Conductor Strand [custom] | 40 AWG |
| Features | Zippable |
| First Conductor Mark | Red |
| Insulation Resistance | 10 GOhm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | 91.44 m |
| Length | 300 ft |
| Number of Conductors | 9 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Ratings | UL Style 2651 |
| Ribbon Thickness | 0.89 mm |
| Ribbon Thickness | 0.035 in |
| Ribbon Width | 11.43 mm |
| Ribbon Width | 0.45 in |
| Shielding | Unshielded |
| Voltage | 300 V |
| Wire Gauge | 28 AWG |
3319 Series
| Part | Length [x] | Length [x] | Length | Length | Insulation Resistance | Voltage | Pitch [x] | Pitch [x] | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Ribbon Width | Ribbon Width | First Conductor Mark | Jacket Color | Shielding | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Features | Number of Conductors | Wire Gauge | Jacket (Insulation) Material | Ratings | Ribbon Thickness | Ribbon Thickness | Ribbon Width [x] | Ribbon Width [x] | Ribbon Width [custom] | Ribbon Width [custom] | Ribbon Width [y] | Ribbon Width [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 100 ft | 30.48 m | 1 ft 25 ft 50 ft | 7.62 m 15.24 m 304.8 mm | 10 GOhm | 300 V | 0.05 in | 1.27 mm | Flat Cable | -20 C | 105 ░C | 1.3 " | 33.02 mm | Red | Black | Unshielded | 19 Strands | 40 AWG | Copper Alloy Silver Coated | Zippable | 26 | 28 AWG | Poly-Vinyl Chloride (PVC) | UL Style 2651 | 0.89 mm | 0.035 in | ||||||
3M (TC) | 100 ft | 30.48 m | 50 ft | 15.24 m | 10 GOhm | 300 V | 0.05 in | 1.27 mm | Flat Cable | -20 C | 105 ░C | Red | Black | Unshielded | 19 Strands | 40 AWG | Copper Alloy Silver Coated | Zippable | 14 | 28 AWG | Poly-Vinyl Chloride (PVC) | UL Style 2651 | 0.89 mm | 0.035 in | 0.7 in | 17.78 mm | ||||||
3M (TC) | 10 ft 100 ft | 3.05 m 30.48 m | 25 ft 50 ft | 7.62 m 15.24 m | 10 GOhm | 300 V | 0.05 in | 1.27 mm | Flat Cable | -20 C | 105 ░C | Red | Black | Unshielded | 19 Strands | 40 AWG | Copper Alloy Silver Coated | Zippable | 10 | 28 AWG | Poly-Vinyl Chloride (PVC) | UL Style 2651 | 0.89 mm | 0.035 in | 0.5 " | 12.7 mm | ||||||
3M (TC) | 300 ft | 91.44 m | 10 GOhm | 300 V | 0.05 in | 1.27 mm | Flat Cable | -20 C | 105 ░C | 0.45 in | 11.43 mm | Red | Black | Unshielded | 19 Strands | 40 AWG | Copper Alloy Silver Coated | Zippable | 9 | 28 AWG | Poly-Vinyl Chloride (PVC) | UL Style 2651 | 0.89 mm | 0.035 in | ||||||||
3M (TC) | 10 ft | 3.05 m | 1 ft 25 ft 50 ft 300 ft | 7.62 m 15.24 m 91.44 m 304.8 mm | 10 GOhm | 300 V | 0.05 in | 1.27 mm | Flat Cable | -20 C | 105 ░C | Red | Black | Unshielded | 19 Strands | 40 AWG | Copper Alloy Silver Coated | Zippable | 10 | 28 AWG | Poly-Vinyl Chloride (PVC) | UL Style 2651 | 0.89 mm | 0.035 in | 0.5 " | 12.7 mm | ||||||
3M (TC) | 300 ft | 91.44 m | 10 GOhm | 300 V | 0.05 in | 1.27 mm | Flat Cable | -20 C | 105 ░C | Red | Black | Unshielded | 19 Strands | 40 AWG | Copper Alloy Silver Coated | Zippable | 16 | 28 AWG | Poly-Vinyl Chloride (PVC) | UL Style 2651 | 0.89 mm | 0.035 in | 20.32 mm | 0.8 in | ||||||||
3M (TC) | 100 ft | 30.48 m | 300 ft | 91.44 m | 10 GOhm | 300 V | 0.05 in | 1.27 mm | Flat Cable | -20 C | 105 ░C | Red | Black | Unshielded | 19 Strands | 40 AWG | Copper Alloy Silver Coated | Zippable | 10 | 28 AWG | Poly-Vinyl Chloride (PVC) | UL Style 2651 | 0.89 mm | 0.035 in | 0.5 " | 12.7 mm | ||||||
3M (TC) | 300 ft | 91.44 m | 10 GOhm | 300 V | 0.05 in | 1.27 mm | Flat Cable | -20 C | 105 ░C | Red | Black | Unshielded | 19 Strands | 40 AWG | Copper Alloy Silver Coated | Splice Free Zippable | 12 | 28 AWG | Poly-Vinyl Chloride (PVC) | UL Style 2651 | 0.89 mm | 0.035 in | ||||||||||
3M (TC) | 100 ft | 30.48 m | 1 ft 25 ft 50 ft | 7.62 m 15.24 m 304.8 mm | 10 GOhm | 300 V | 0.05 in | 1.27 mm | Flat Cable | -20 C | 105 ░C | 2.5 " | 63.5 mm | Red | Black | Unshielded | 19 Strands | 40 AWG | Copper Alloy Silver Coated | Zippable | 50 | 28 AWG | Poly-Vinyl Chloride (PVC) | UL Style 2651 | 0.89 mm | 0.035 in | ||||||
3M (TC) | 100 ft | 30.48 m | 50 ft | 15.24 m | 10 GOhm | 300 V | 0.05 in | 1.27 mm | Flat Cable | -20 C | 105 ░C | 1.85 in | 46.99 mm | Red | Black | Unshielded | 19 Strands | 40 AWG | Copper Alloy Silver Coated | Zippable | 37 | 28 AWG | Poly-Vinyl Chloride (PVC) | UL Style 2651 | 0.89 mm | 0.035 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
3319 Series

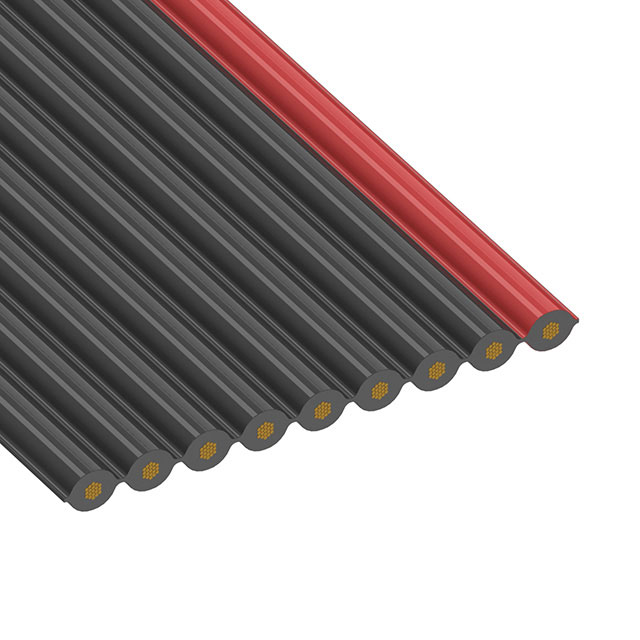

Flat Ribbon Cable Black 9 Conductors 0.050" (1.27mm) Flat Cable 300.0' (91.44m)
