3319/14 100

Active

3M (TC)

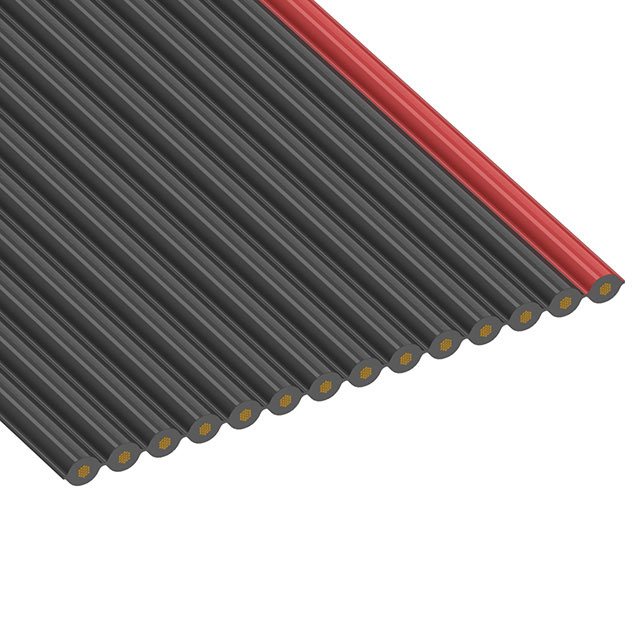

CABLE RIBBON 14COND 0.05 BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRolling Flex Life Prod Spec Datasheet

3319/14 100

Active

3M (TC)

CABLE RIBBON 14COND 0.05 BLACK

Deep-Dive with AI

DocumentsRolling Flex Life Prod Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3319/14 100

Cable Type	Flat Cable
Conductor Material	Copper Alloy, Silver Coated
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	40 AWG
Features	Zippable
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	15.24 m
Length	50 ft
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	14
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width [x]	0.7 in
Ribbon Width [x]	17.78 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

3319 Series

Part	Length [x]	Length [x]	Length	Length	Insulation Resistance	Voltage	Pitch [x]	Pitch [x]	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Width	Ribbon Width	First Conductor Mark	Jacket Color	Shielding	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Features	Number of Conductors	Wire Gauge	Jacket (Insulation) Material	Ratings	Ribbon Thickness	Ribbon Thickness	Ribbon Width [x]	Ribbon Width [x]	Ribbon Width [custom]	Ribbon Width [custom]	Ribbon Width [y]	Ribbon Width [y]
3M (TC) 3319/26 100	100 ft	30.48 m	1 ft 25 ft 50 ft	7.62 m 15.24 m 304.8 mm	10 GOhm	300 V	0.05 in	1.27 mm	Flat Cable	-20 C	105 ░C	1.3 "	33.02 mm	Red	Black	Unshielded	19 Strands	40 AWG	Copper Alloy Silver Coated	Zippable	26	28 AWG	Poly-Vinyl Chloride (PVC)	UL Style 2651	0.89 mm	0.035 in
3M (TC) 3319/14 100	100 ft	30.48 m	50 ft	15.24 m	10 GOhm	300 V	0.05 in	1.27 mm	Flat Cable	-20 C	105 ░C			Red	Black	Unshielded	19 Strands	40 AWG	Copper Alloy Silver Coated	Zippable	14	28 AWG	Poly-Vinyl Chloride (PVC)	UL Style 2651	0.89 mm	0.035 in	0.7 in	17.78 mm
3M (TC) 3319/10 100	10 ft 100 ft	3.05 m 30.48 m	25 ft 50 ft	7.62 m 15.24 m	10 GOhm	300 V	0.05 in	1.27 mm	Flat Cable	-20 C	105 ░C			Red	Black	Unshielded	19 Strands	40 AWG	Copper Alloy Silver Coated	Zippable	10	28 AWG	Poly-Vinyl Chloride (PVC)	UL Style 2651	0.89 mm	0.035 in			0.5 "	12.7 mm
3M (TC) 3319/09			300 ft	91.44 m	10 GOhm	300 V	0.05 in	1.27 mm	Flat Cable	-20 C	105 ░C	0.45 in	11.43 mm	Red	Black	Unshielded	19 Strands	40 AWG	Copper Alloy Silver Coated	Zippable	9	28 AWG	Poly-Vinyl Chloride (PVC)	UL Style 2651	0.89 mm	0.035 in
3M (TC) 3319/10SF 300	10 ft	3.05 m	1 ft 25 ft 50 ft 300 ft	7.62 m 15.24 m 91.44 m 304.8 mm	10 GOhm	300 V	0.05 in	1.27 mm	Flat Cable	-20 C	105 ░C			Red	Black	Unshielded	19 Strands	40 AWG	Copper Alloy Silver Coated	Zippable	10	28 AWG	Poly-Vinyl Chloride (PVC)	UL Style 2651	0.89 mm	0.035 in			0.5 "	12.7 mm
3M (TC) 3319/16 300			300 ft	91.44 m	10 GOhm	300 V	0.05 in	1.27 mm	Flat Cable	-20 C	105 ░C			Red	Black	Unshielded	19 Strands	40 AWG	Copper Alloy Silver Coated	Zippable	16	28 AWG	Poly-Vinyl Chloride (PVC)	UL Style 2651	0.89 mm	0.035 in					20.32 mm	0.8 in
3M (TC) 3319/10 300	100 ft	30.48 m	300 ft	91.44 m	10 GOhm	300 V	0.05 in	1.27 mm	Flat Cable	-20 C	105 ░C			Red	Black	Unshielded	19 Strands	40 AWG	Copper Alloy Silver Coated	Zippable	10	28 AWG	Poly-Vinyl Chloride (PVC)	UL Style 2651	0.89 mm	0.035 in			0.5 "	12.7 mm
3M (TC) 3319/12NSSF			300 ft	91.44 m	10 GOhm	300 V	0.05 in	1.27 mm	Flat Cable	-20 C	105 ░C			Red	Black	Unshielded	19 Strands	40 AWG	Copper Alloy Silver Coated	Splice Free Zippable	12	28 AWG	Poly-Vinyl Chloride (PVC)	UL Style 2651	0.89 mm	0.035 in
3M (TC) 3319/50 100	100 ft	30.48 m	1 ft 25 ft 50 ft	7.62 m 15.24 m 304.8 mm	10 GOhm	300 V	0.05 in	1.27 mm	Flat Cable	-20 C	105 ░C	2.5 "	63.5 mm	Red	Black	Unshielded	19 Strands	40 AWG	Copper Alloy Silver Coated	Zippable	50	28 AWG	Poly-Vinyl Chloride (PVC)	UL Style 2651	0.89 mm	0.035 in
3M (TC) 3319/37 100	100 ft	30.48 m	50 ft	15.24 m	10 GOhm	300 V	0.05 in	1.27 mm	Flat Cable	-20 C	105 ░C	1.85 in	46.99 mm	Red	Black	Unshielded	19 Strands	40 AWG	Copper Alloy Silver Coated	Zippable	37	28 AWG	Poly-Vinyl Chloride (PVC)	UL Style 2651	0.89 mm	0.035 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 240.34
		5	$ 195.74
		10	$ 179.64
		25	$ 164.77
	Spool	100	$ 4.32
		300	$ 3.80
		500	$ 3.45
		1000	$ 3.23

Description

General part information

3319 Series

Flat Ribbon Cable Black 14 Conductors 0.050" (1.27mm) Flat Cable 100.0' (30.48m)

Documents

Technical documentation and resources

Rolling Flex Life Prod Spec

Datasheet
