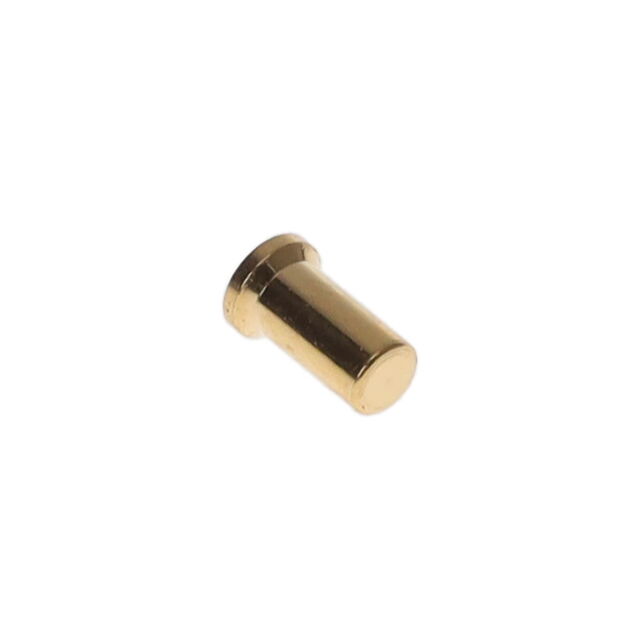

0331-0-15-15-18-14-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Deep-Dive with AI

Search across all available documentation for this part.

0331-0-15-15-18-14-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0331-0-15-15-18-14-10-0

Accepts Pin Diameter [Max]	0.043 in
Accepts Pin Diameter [Max]	1.09 mm
Accepts Pin Diameter [Min]	0.037 in
Accepts Pin Diameter [Min]	0.94 mm
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Beryllium Copper
Flange Diameter [diameter]	2.29 mm
Flange Diameter [diameter]	0.09 in
Length - Overall	0.15 in
Length - Overall	3.81 mm
Mounting Hole Diameter	0.071 in
Mounting Hole Diameter	1.8 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	1.37 mm
Pin Hole Diameter [diameter]	0.054 in
Socket Depth	0.127 in
Socket Depth	3.23 mm
Tail Type	No Tail
Termination	Solder

0331-0 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall	Length - Overall	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish	Mounting Hole Diameter	Mounting Hole Diameter	Tail Type	Termination	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Socket Depth	Socket Depth	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]
Mill-Max Manufacturing Corp. 0331-0-15-01-18-27-10-0	-55 °C	125 °C	0.15 in	3.81 mm	1.37 mm	0.054 in	Gold	0.071 in	1.8 mm	No Tail	Solder	0.037 in	0.94 mm	0.043 in	1.09 mm	0.127 in	3.23 mm	0.76 Ám	30 Áin	Beryllium Copper	2.29 mm	0.09 in
Mill-Max Manufacturing Corp. 0331-0-15-15-18-27-10-0	-55 °C	125 °C	0.15 in	3.81 mm	1.37 mm	0.054 in	Gold	0.071 in	1.8 mm	No Tail	Solder	0.037 in	0.94 mm	0.043 in	1.09 mm	0.127 in	3.23 mm	0.76 Ám	30 Áin	Beryllium Copper	2.29 mm	0.09 in
Mill-Max Manufacturing Corp. 0331-0-15-80-18-14-10-0	-55 °C	125 °C	0.15 in	3.81 mm	1.37 mm	0.054 in	Gold	0.071 in	1.8 mm	No Tail	Solder	0.037 in	0.94 mm	0.043 in	1.09 mm	0.127 in	3.23 mm	0.25 Ám	10 Áin	Beryllium Copper	2.29 mm	0.09 in
Mill-Max Manufacturing Corp. 0331-0-15-15-18-14-10-0	-55 °C	125 °C	0.15 in	3.81 mm	1.37 mm	0.054 in	Gold	0.071 in	1.8 mm	No Tail	Solder	0.037 in	0.94 mm	0.043 in	1.09 mm	0.127 in	3.23 mm	0.25 Ám	10 Áin	Beryllium Copper	2.29 mm	0.09 in
Mill-Max Manufacturing Corp. 0331-0-15-01-18-01-10-0	-55 °C	125 °C	0.15 in	3.81 mm	1.37 mm	0.054 in	Tin-Lead	0.071 in	1.8 mm	No Tail	Solder	0.037 in	0.94 mm	0.043 in	1.09 mm	0.127 in	3.23 mm	5.08 Ám	200 Áin	Beryllium Copper	2.29 mm	0.09 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.00
		10	$ 0.84
		25	$ 0.81
		50	$ 0.79
		100	$ 0.76
		250	$ 0.69
		500	$ 0.62
		1000	$ 0.60

Description

General part information

0331-0 Series

Pin Receptacle Connector 0.037" ~ 0.043" (0.94mm ~ 1.09mm) No Tail Solder

Documents

Technical documentation and resources

No documents available
