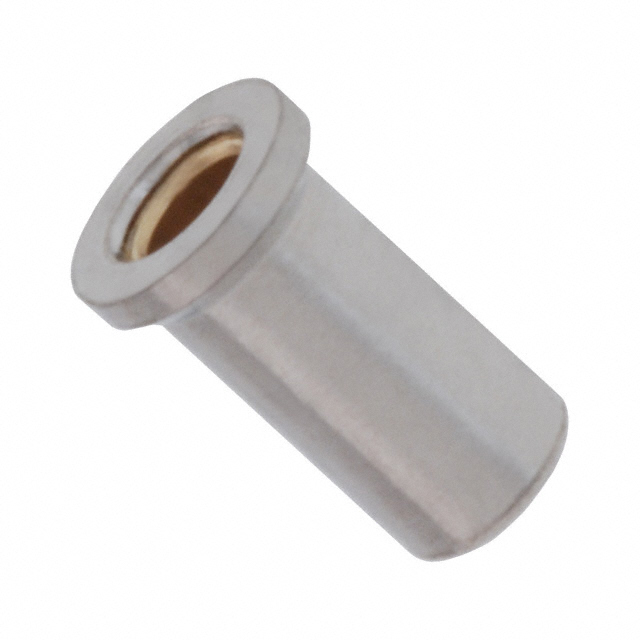

0331-0-15-01-18-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .037-.043 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
0331-0-15-01-18-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .037-.043 SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0331-0-15-01-18-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.043 in |
| Accepts Pin Diameter [Max] | 1.09 mm |
| Accepts Pin Diameter [Min] | 0.037 in |
| Accepts Pin Diameter [Min] | 0.94 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 2.29 mm |
| Flange Diameter [diameter] | 0.09 in |
| Length - Overall | 0.15 in |
| Length - Overall | 3.81 mm |
| Mounting Hole Diameter | 0.071 in |
| Mounting Hole Diameter | 1.8 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 1.37 mm |
| Pin Hole Diameter [diameter] | 0.054 in |
| Socket Depth | 0.127 in |
| Socket Depth | 3.23 mm |
| Tail Type | No Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.41 | |
| 10 | $ 0.35 | |||
| 25 | $ 0.31 | |||
| 50 | $ 0.29 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.23 | |||
| 1000 | $ 0.20 | |||
| 2500 | $ 0.18 | |||
Description
General part information
0331-0 Series
Pin Receptacle Connector 0.037" ~ 0.043" (0.94mm ~ 1.09mm) No Tail Solder
Documents
Technical documentation and resources
No documents available
