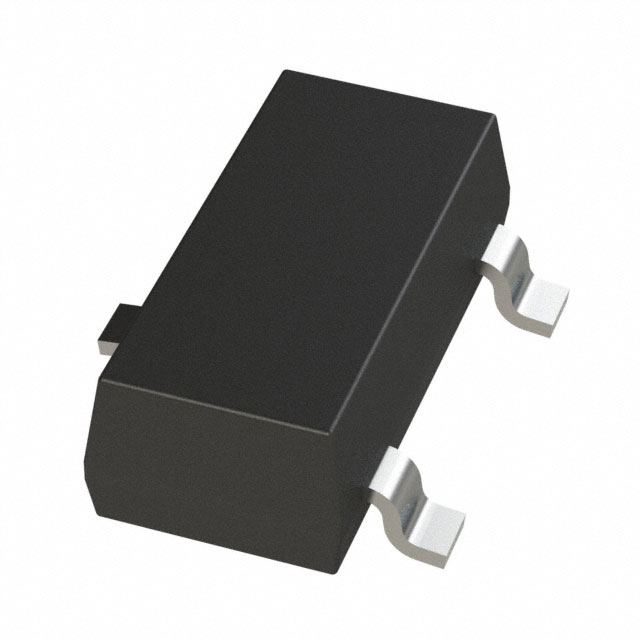

REF3130AQDBZRQ1
ActiveAUTOMOTIVE, 20-PPM/°C (MAX), 100-µA, 3-PIN SOT-23 SERIES VOLTAGE REFERENCE 3-SOT-23 -40 TO 125
Deep-Dive with AI
Search across all available documentation for this part.
REF3130AQDBZRQ1
ActiveAUTOMOTIVE, 20-PPM/°C (MAX), 100-µA, 3-PIN SOT-23 SERIES VOLTAGE REFERENCE 3-SOT-23 -40 TO 125
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | REF3130AQDBZRQ1 | REF3130 Series |
|---|---|---|
| Current - Output | 10 mA | 10 mA |
| Grade | Automotive | Automotive |
| Mounting Type | Surface Mount | Surface Mount |
| Noise - 0.1Hz to 10Hz | 39 µVp-p | 39 µVp-p |
| Noise - 10Hz to 10kHz | 57 µVrms | 57 µVrms |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | 27.03 °C/W | 27.03 °C/W |
| Package / Case | SOT-23-3, SC-59, TO-236-3 | SOT-23-3, SC-59, TO-236-3 |
| Qualification | AEC-Q100 | AEC-Q100 |
| Reference Type | Series | Series |
| Supplier Device Package | SOT-23-3 | SOT-23-3 |
| Temperature Coefficient | 20 ppm/°C | 20 ppm/°C |
| Tolerance [Max] | 1 % | 1 % |
| Tolerance [Min] | -1 % | -1 % |
| Voltage - Input [Max] | 5.5 V | 5.5 V |
| Voltage - Input [Min] | 3.05 V | 3.05 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | N/A | 1 | $ 3.50 | |
| 10 | $ 2.63 | |||
| 25 | $ 2.42 | |||
| 100 | $ 2.18 | |||
| 250 | $ 2.07 | |||
| 500 | $ 2.00 | |||
| 1000 | $ 1.94 | |||
| 3000 | $ 1.87 | |||
| Digikey | Cut Tape (CT) | 1 | $ 3.75 | |
| 10 | $ 3.37 | |||
| 25 | $ 3.18 | |||
| 100 | $ 2.76 | |||
| 250 | $ 2.62 | |||
| 500 | $ 2.35 | |||
| 1000 | $ 1.98 | |||
| Digi-Reel® | 1 | $ 3.75 | ||
| 10 | $ 3.37 | |||
| 25 | $ 3.18 | |||
| 100 | $ 2.76 | |||
| 250 | $ 2.62 | |||
| 500 | $ 2.35 | |||
| 1000 | $ 1.98 | |||
| Tape & Reel (TR) | 3000 | $ 1.88 | ||
| Mouser Electronics | N/A | 1 | $ 3.56 | |
| 10 | $ 2.46 | |||
| 100 | $ 2.22 | |||
| 250 | $ 2.11 | |||
| 500 | $ 2.04 | |||
| 1000 | $ 1.98 | |||
| 3000 | $ 1.78 | |||
| Texas Instruments | LARGE T&R | 1 | $ 2.83 | |
| 100 | $ 2.48 | |||
| 250 | $ 1.74 | |||
| 1000 | $ 1.40 | |||
REF3130 Series
3-V, 20-PPM/°C MAX, 100-µA, 3-PIN SOT-23 SERIES VOLTAGE REFERENCE 3-SOT-23 -40 TO 125
| Part | Temperature Coefficient | Mounting Type | Reference Type | Package / Case | Voltage - Input [Min] | Voltage - Input [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Current - Output | Output Type | Tolerance [Min] | Tolerance [Max] | Noise - 10Hz to 10kHz | Noise - 0.1Hz to 10Hz | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments REF3130AIDBZTG4 | 20 ppm/°C | Surface Mount | Series | SC-59, SOT-23-3, TO-236-3 | 3.05 V | 5.5 V | -40 °C | 125 °C | SOT-23-3 | 10 mA | 27.03 °C/W | -1 % | 1 % | 57 µVrms | 39 µVp-p | ||
Texas Instruments REF3130AIDBZR | 20 ppm/°C | Surface Mount | Series | SC-59, SOT-23-3, TO-236-3 | 3.05 V | 5.5 V | -40 °C | 125 °C | SOT-23-3 | 10 mA | 27.03 °C/W | -1 % | 1 % | 57 µVrms | 39 µVp-p | ||
Texas Instruments REF3130AIDBZT | 20 ppm/°C | Surface Mount | Series | SC-59, SOT-23-3, TO-236-3 | 3.05 V | 5.5 V | -40 °C | 125 °C | SOT-23-3 | 10 mA | 27.03 °C/W | -1 % | 1 % | 57 µVrms | 39 µVp-p | ||
Texas Instruments REF3130AQDBZRQ1 | 20 ppm/°C | Surface Mount | Series | SC-59, SOT-23-3, TO-236-3 | 3.05 V | 5.5 V | -40 °C | 125 °C | SOT-23-3 | 10 mA | 27.03 °C/W | -1 % | 1 % | 57 µVrms | 39 µVp-p | Automotive | AEC-Q100 |
Texas Instruments REF3130AIDBZRG4 | 20 ppm/°C | Surface Mount | Series | SC-59, SOT-23-3, TO-236-3 | 3.05 V | 5.5 V | -40 °C | 125 °C | SOT-23-3 | 10 mA | 27.03 °C/W | -1 % | 1 % | 57 µVrms | 39 µVp-p |
Description
General part information
REF3130 Series
The REF31xx-Q1 is a family of precision, low power, low dropout, series voltage references available in the tiny 3-pin SOT-23 package.
The REF31xx-Q1 small size and low power consumption (100 µA typical) make it ideal for portable and battery-powered applications. The REF31xx-Q1 does not require a load capacitor, but is stable with any capacitive load and can sink or source up to 10 mA of output current.
Unloaded, the REF31xx-Q1 can operate on supplies down to 5 mV above the output voltage. All models are specified for the wide temperature range of –40°C to +125°C.
