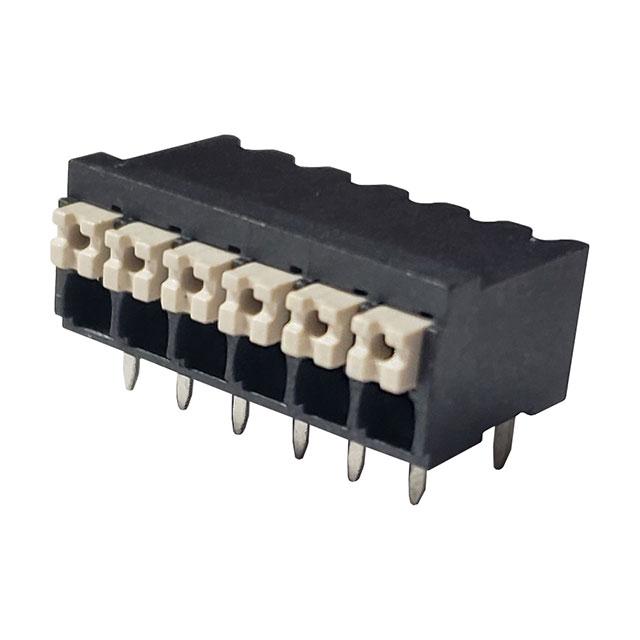

EB142A-06-A-90

Active

Adam Tech

EURO BLOCK CONN 3.50MM 6POS

Search across all available documentation for this part.

Active

Adam Tech

EURO BLOCK CONN 3.50MM 6POS

Technical Specifications

Parameters and characteristics for this part

Part	Contact Material - Plating	Housing Material	Color	Wire Termination	Mounting Type	Number of Levels	Mating Orientation	Current	Positions Per Level	Wire Gauge [Min]	Wire Gauge [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Pitch [x]	Pitch [x]
Adam Tech EB142A-03-A-90	Copper Alloy - Tin Plated	Liquid Crystal Polymer (LCP)	Black	Screwless - Push Button Clamp	Through Hole	1	Horizontal with Board	10 A	3	16 AWG	24 AWG	-40 °C	105 ░C	300 V	3.5 mm	0.138 in
Adam Tech EB142A-06-A-90	Copper Alloy - Tin Plated	Liquid Crystal Polymer (LCP)	Black	Screwless - Push Button Clamp	Through Hole	1	Horizontal with Board	10 A	6	16 AWG	24 AWG	-40 °C	105 ░C	300 V	3.5 mm	0.138 in
Adam Tech EB142A-04-A-90	Copper Alloy - Tin Plated	Liquid Crystal Polymer (LCP)	Black	Screwless - Push Button Clamp	Through Hole	1	Horizontal with Board	10 A	4	16 AWG	24 AWG	-40 °C	105 ░C	300 V	3.5 mm	0.138 in
Adam Tech EB142A-02-A-90	Copper Alloy - Tin Plated	Liquid Crystal Polymer (LCP)	Black	Screwless - Push Button Clamp	Through Hole	1	Horizontal with Board	10 A	2	16 AWG	24 AWG	-40 °C	105 ░C	300 V	3.5 mm	0.138 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Through Hole
