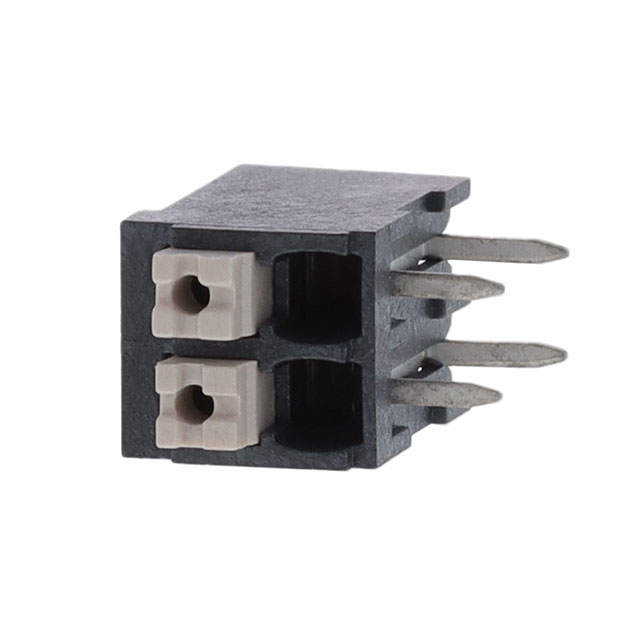

EB142A-02-A-90
ActiveAdam Tech
EURO BLOCK CONN 3.50MM 2POS
Deep-Dive with AI
Search across all available documentation for this part.
EB142A-02-A-90
ActiveAdam Tech
EURO BLOCK CONN 3.50MM 2POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EB142A-02-A-90 |
|---|---|
| Color | Black |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Current | 10 A |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 3.5 mm |
| Pitch [x] | 0.138 in |
| Positions Per Level | 2 |
| Voltage | 300 V |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 16 AWG |
| Wire Termination | Screwless - Push Button Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.88 | |
| 10 | $ 0.47 | |||
| 25 | $ 0.39 | |||
| 50 | $ 0.34 | |||
| 100 | $ 0.31 | |||
| 250 | $ 0.31 | |||
Description
General part information
EB142A Series
2 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Through Hole
