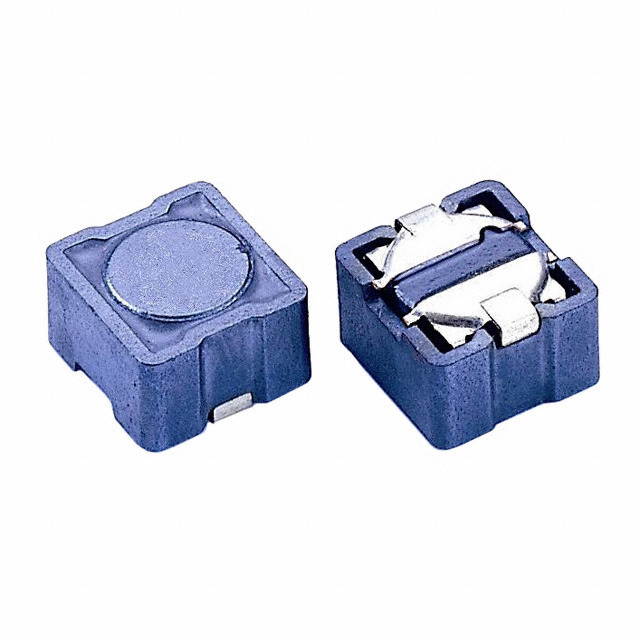

SCRH105-120

Active

Signal Transformer

POWER INDUCTORS - SMD INDUCTOR SMD 12UH 4.2A 78MOHMS 100KHZ

Search across all available documentation for this part.

Active

Signal Transformer

POWER INDUCTORS - SMD INDUCTOR SMD 12UH 4.2A 78MOHMS 100KHZ

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Inductors - SMD Inductor SMD 7.1uH 1.22A0.11ohms100KHz

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Power Inductors - SMD Inductor SMD 7.1uH 1.22A0.11ohms100KHz

Part	Inductance	Inductance Frequency - Test	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR) [Max]	Mounting Type	Current Rating (Amps)	Shielding	Current - Saturation (Isat)	Height - Seated (Max) [Max]	Height - Seated (Max)	Tolerance [Max]	Tolerance [Min]	DC Resistance (DCR)	Height - Seated (Max) [Max]
Signal Transformer SCRH123-391	390 µH	100 kHz	20 %	125 °C	-40 °C	Nonstandard	0.492 in	0.492 "	12.5 mm	12.5 mm	1.95 Ohm	Surface Mount	0.5 A	Shielded	800 mA
Signal Transformer SCRH74B-330	33 µH		20 %	125 °C	-40 °C	Nonstandard	0.307 in	0.307 in	7.8 mm	7.8 mm	170 mOhm	Surface Mount	960 mA	Shielded	960 mA	0.177 "	4.5 mm
Signal Transformer SCRH62-270	27 µH	100 kHz	20 %	125 °C	-40 °C	Nonstandard	0.28 in	0.256 in	7.1 mm	6.5 mm	380 mOhm	Surface Mount	0.89 A	Shielded	660 mA	0.118 in	3 mm
Signal Transformer SCRH62-7R1	7.1 µH	100 kHz		125 °C	-40 °C	Nonstandard	0.28 in	0.256 in	7.1 mm	6.5 mm		Surface Mount	1.53 A	Shielded	1.22 A	0.118 in	3 mm	40 %	-20 %	110 mOhm
Signal Transformer SCRH124-271	270 µH	100 kHz	20 %	125 °C	-40 °C	Nonstandard	0.492 in	0.492 "	12.5 mm	12.5 mm	870 mOhm	Surface Mount	0.86 A	Shielded	600 mA	0.177 "	4.5 mm
Signal Transformer SCRH105-120	12 µH	100 kHz	20 %	125 °C	-40 °C	Nonstandard	0.398 in	0.362 in	10.1 mm	9.2 mm	78 mOhm	Surface Mount	2.61 A	Shielded		0.236 in					6 mm
