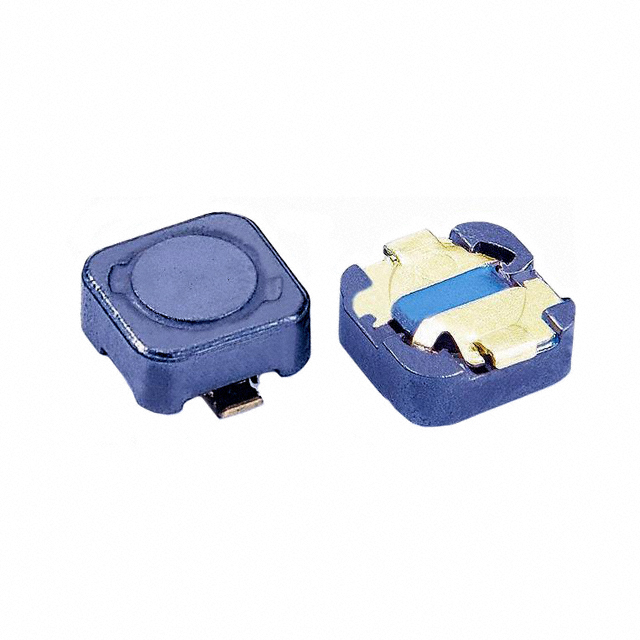

SCRH62-270

Active

Signal Transformer

POWER INDUCTORS - SMD INDUCTOR SMD 27UH 0.66A0.38 OHMS100KHZ

Search across all available documentation for this part.

Active

Signal Transformer

POWER INDUCTORS - SMD INDUCTOR SMD 27UH 0.66A0.38 OHMS100KHZ

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Inductors - SMD Inductor SMD 7.1uH 1.22A0.11ohms100KHz

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Power Inductors - SMD Inductor SMD 7.1uH 1.22A0.11ohms100KHz

Part	Inductance	Inductance Frequency - Test	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR) [Max]	Mounting Type	Current Rating (Amps)	Shielding	Current - Saturation (Isat)	Height - Seated (Max) [Max]	Height - Seated (Max)	Tolerance [Max]	Tolerance [Min]	DC Resistance (DCR)	Height - Seated (Max) [Max]
Signal Transformer SCRH123-391	390 µH	100 kHz	20 %	125 °C	-40 °C	Nonstandard	0.492 in	0.492 "	12.5 mm	12.5 mm	1.95 Ohm	Surface Mount	0.5 A	Shielded	800 mA
Signal Transformer SCRH74B-330	33 µH		20 %	125 °C	-40 °C	Nonstandard	0.307 in	0.307 in	7.8 mm	7.8 mm	170 mOhm	Surface Mount	960 mA	Shielded	960 mA	0.177 "	4.5 mm
Signal Transformer SCRH62-270	27 µH	100 kHz	20 %	125 °C	-40 °C	Nonstandard	0.28 in	0.256 in	7.1 mm	6.5 mm	380 mOhm	Surface Mount	0.89 A	Shielded	660 mA	0.118 in	3 mm
Signal Transformer SCRH62-7R1	7.1 µH	100 kHz		125 °C	-40 °C	Nonstandard	0.28 in	0.256 in	7.1 mm	6.5 mm		Surface Mount	1.53 A	Shielded	1.22 A	0.118 in	3 mm	40 %	-20 %	110 mOhm
Signal Transformer SCRH124-271	270 µH	100 kHz	20 %	125 °C	-40 °C	Nonstandard	0.492 in	0.492 "	12.5 mm	12.5 mm	870 mOhm	Surface Mount	0.86 A	Shielded	600 mA	0.177 "	4.5 mm
Signal Transformer SCRH105-120	12 µH	100 kHz	20 %	125 °C	-40 °C	Nonstandard	0.398 in	0.362 in	10.1 mm	9.2 mm	78 mOhm	Surface Mount	2.61 A	Shielded		0.236 in					6 mm
