EZ-600-SM-X

Active

Amphenol Times Microwave Systems

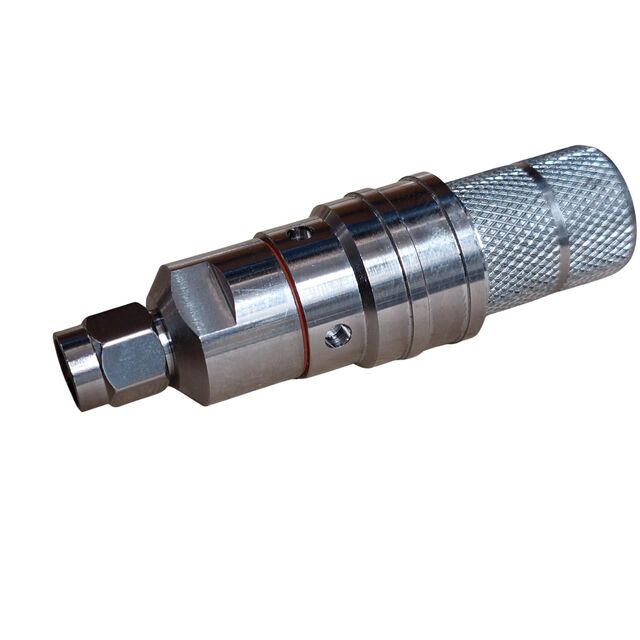

SMA-MALE (PLUG) CRIMP CONNECTOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EZ-600-SM-X

Active

Amphenol Times Microwave Systems

SMA-MALE (PLUG) CRIMP CONNECTOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EZ-600-SM-X	EZ-600 Series

	-	-
Body Finish	Tin	Tin, Silver, White Bronze, Nickel
Body Material	Brass	Brass
Cable Group	LMR-600	LMR-600, LMR-600-75
Center Contact Material	Beryllium Copper	Beryllium Copper, Brass
Center Contact Plating	Gold	Gold, Silver
Connector Style	SMA	SMA, QN, 7/8 EIA, F Type, 4.3/10, 7/16 DIN, RP-TNC, N Type
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack
Contact Termination	Push On	Push On, Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Snap-On, Push-Pull
Frequency - Max [Max]	8 GHz	1 - 6000 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 - 75 Ohms
Ingress Protection	-	IP67 - Dust Tight, Waterproof, IP68 - Dust Tight, Waterproof
Insertion Loss	-	0.05 - 0.1 dB
Mating Cycles	500	500
Mounting Feature	-	Flange
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	125 °C	85 - 165 °C
Operating Temperature [Min]	-40 °C	-65 - -40 °C
Shield Termination	Crimp	Crimp, Clamp
Voltage Rating	-	500 - 1000 VDC

EZ-600 Series

SMA-MALE (PLUG) CRIMP CONNECTOR,

Part	Contact Termination	Housing Color	Impedance	Cable Group	Connector Type	Connector Style	Mating Cycles	Center Contact Plating	Body Material	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Dielectric Material	Shield Termination	Center Contact Material	Frequency - Max [Max]	Body Finish	Fastening Type	Ingress Protection	Mounting Feature	Voltage Rating
Amphenol Times Microwave Systems EZ-600-SM-X	Push On	Silver	50 Ohms	LMR-600	Male Pin, Plug	SMA	500	Gold	Brass	1	125 °C	-40 °C	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	Beryllium Copper	8 GHz	Tin
Amphenol Times Microwave Systems EZ-600-QNM-X	Push On	Silver	50 Ohms	LMR-600	Male Pin, Plug	QN		Gold	Brass	1	125 °C	-40 °C	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	Beryllium Copper	6000 MHz	Tin	Snap-On
Amphenol Times Microwave Systems EZ-600-78 EIA	Push On	Silver	50 Ohms	LMR-600	Male Pin, Plug	7/8 EIA	500	Silver	Brass	1	85 °C	-40 °C		Polytetrafluoroethylene (PTFE)	Clamp	Beryllium Copper, Brass	500 MHz	Silver	Push-Pull	IP67 - Dust Tight, Waterproof	Flange
Amphenol Times Microwave Systems EZ-600-FM-75-X	Push On	Silver	75 Ohms	LMR-600-75	Male Pin, Plug	F Type	500	Gold	Brass	1	125 °C	-40 °C	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	Beryllium Copper	1 GHz	White Bronze
Amphenol Times Microwave Systems EZ-600-TF-X
Amphenol Times Microwave Systems EZ-600-4310M-X	Push On	Silver	50 Ohms	LMR-600	Male Pin, Plug	4.3/10		Gold	Brass	1	125 °C	-40 °C	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	Beryllium Copper	6000 MHz	Tin
Amphenol Times Microwave Systems EZ-600-QNF-X	Push On	Silver	50 Ohms	LMR-600	Female Socket, Jack	QN		Gold	Brass	1	125 °C	-40 °C	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	Beryllium Copper	6000 MHz	Tin	Snap-On
Amphenol Times Microwave Systems EZ-600-QNM-RA-X	Push On	Silver	50 Ohms	LMR-600	Male Pin, Plug	QN		Gold	Brass	1	125 °C	-40 °C	Free Hanging (In-Line), Right Angle	Polytetrafluoroethylene (PTFE)	Crimp	Beryllium Copper	6000 MHz	Tin	Snap-On
Amphenol Times Microwave Systems EZ-600-716F-X	Solder	Silver	50 Ohms	LMR-600	Female Socket, Jack	7/16 DIN	500	Silver	Brass	1	155 °C	-55 °C	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	Beryllium Copper, Brass	5 GHz	White Bronze				1000 VDC
Amphenol Times Microwave Systems EZ-600-4310M-RA-X	Push On	Silver	50 Ohms	LMR-600	Male Pin, Plug	4.3/10		Gold	Brass	1	125 °C	-40 °C	Free Hanging (In-Line), Right Angle	Polytetrafluoroethylene (PTFE)	Crimp	Beryllium Copper	6000 MHz	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	25	$ 27.52

Description

General part information

EZ-600 Series

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Push On
