EZ-600-TF-X

Active

Amphenol Times Microwave Systems

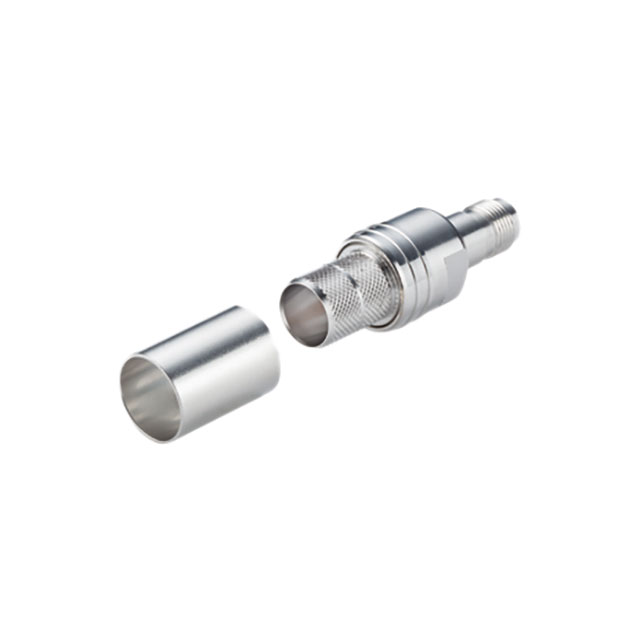

TNC-FEMALE (JACK) CRIMP CONNECTO

Deep-Dive with AI

Search across all available documentation for this part.

EZ-600-TF-X

Active

Amphenol Times Microwave Systems

TNC-FEMALE (JACK) CRIMP CONNECTO

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EZ-600-TF-X	EZ-600 Series

Body Finish	-	Tin, Silver, White Bronze, Nickel
Body Material	-	Brass
Cable Group	-	LMR-600, LMR-600-75
Center Contact Material	-	Beryllium Copper, Brass
Center Contact Plating	-	Gold, Silver
Connector Style	-	SMA, QN, 7/8 EIA, F Type, 4.3/10, 7/16 DIN, RP-TNC, N Type
Connector Type	-	Male Pin, Plug, Female Socket, Jack
Contact Termination	-	Push On, Solder
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Snap-On, Push-Pull
Frequency - Max	-	1 - 6000 GHz
Housing Color	-	Silver
Impedance	-	50 - 75 Ohms
Ingress Protection	-	IP67 - Dust Tight, Waterproof, IP68 - Dust Tight, Waterproof
Insertion Loss	-	0.05 - 0.1 dB
Mating Cycles	-	500
Mounting Feature	-	Flange
Mounting Type	-	Free Hanging (In-Line), Right Angle
null		-
Number of Ports	-	1
Operating Temperature	-	85 - 165 °C
Operating Temperature	-	-65 - -40 °C
Shield Termination	-	Crimp, Clamp
Voltage Rating	-	500 - 1000 VDC

EZ-600 Series

SMA-MALE (PLUG) CRIMP CONNECTOR,

Part	Contact Termination	Housing Color	Impedance	Cable Group	Connector Type	Connector Style	Mating Cycles	Center Contact Plating	Body Material	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Dielectric Material	Shield Termination	Center Contact Material	Frequency - Max [Max]	Body Finish	Fastening Type	Ingress Protection	Mounting Feature	Voltage Rating
Amphenol Times Microwave Systems EZ-600-SM-X	Push On	Silver	50 Ohms	LMR-600	Male Pin, Plug	SMA	500	Gold	Brass	1	125 °C	-40 °C	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	Beryllium Copper	8 GHz	Tin
Amphenol Times Microwave Systems EZ-600-QNM-X	Push On	Silver	50 Ohms	LMR-600	Male Pin, Plug	QN		Gold	Brass	1	125 °C	-40 °C	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	Beryllium Copper	6000 MHz	Tin	Snap-On
Amphenol Times Microwave Systems EZ-600-78 EIA	Push On	Silver	50 Ohms	LMR-600	Male Pin, Plug	7/8 EIA	500	Silver	Brass	1	85 °C	-40 °C		Polytetrafluoroethylene (PTFE)	Clamp	Beryllium Copper, Brass	500 MHz	Silver	Push-Pull	IP67 - Dust Tight, Waterproof	Flange
Amphenol Times Microwave Systems EZ-600-FM-75-X	Push On	Silver	75 Ohms	LMR-600-75	Male Pin, Plug	F Type	500	Gold	Brass	1	125 °C	-40 °C	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	Beryllium Copper	1 GHz	White Bronze
Amphenol Times Microwave Systems EZ-600-TF-X
Amphenol Times Microwave Systems EZ-600-4310M-X	Push On	Silver	50 Ohms	LMR-600	Male Pin, Plug	4.3/10		Gold	Brass	1	125 °C	-40 °C	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	Beryllium Copper	6000 MHz	Tin
Amphenol Times Microwave Systems EZ-600-QNF-X	Push On	Silver	50 Ohms	LMR-600	Female Socket, Jack	QN		Gold	Brass	1	125 °C	-40 °C	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	Beryllium Copper	6000 MHz	Tin	Snap-On
Amphenol Times Microwave Systems EZ-600-QNM-RA-X	Push On	Silver	50 Ohms	LMR-600	Male Pin, Plug	QN		Gold	Brass	1	125 °C	-40 °C	Free Hanging (In-Line), Right Angle	Polytetrafluoroethylene (PTFE)	Crimp	Beryllium Copper	6000 MHz	Tin	Snap-On
Amphenol Times Microwave Systems EZ-600-716F-X	Solder	Silver	50 Ohms	LMR-600	Female Socket, Jack	7/16 DIN	500	Silver	Brass	1	155 °C	-55 °C	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	Beryllium Copper, Brass	5 GHz	White Bronze				1000 VDC
Amphenol Times Microwave Systems EZ-600-4310M-RA-X	Push On	Silver	50 Ohms	LMR-600	Male Pin, Plug	4.3/10		Gold	Brass	1	125 °C	-40 °C	Free Hanging (In-Line), Right Angle	Polytetrafluoroethylene (PTFE)	Crimp	Beryllium Copper	6000 MHz	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	7	$ 54.09

Description

General part information

EZ-600 Series

Connector

Documents

Technical documentation and resources

No documents available
