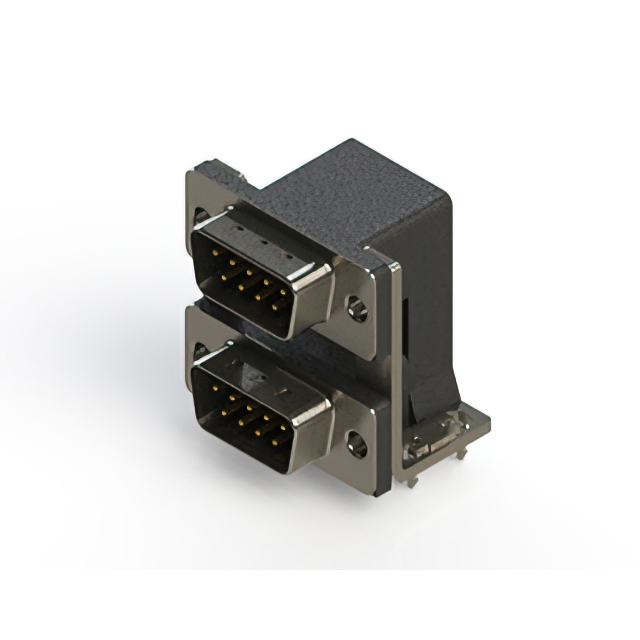

661-009-364-037
ActiveEDAC Inc.
MALE PANEL MOUNTING 2 3A -55℃~+85℃ D-SUB / VGA CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
661-009-364-037
ActiveEDAC Inc.
MALE PANEL MOUNTING 2 3A -55℃~+85℃ D-SUB / VGA CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 661-009-364-037 |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub - Stacked |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Board Lock, Mounting Brackets, Grounding Indents, Shielded |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 1 (DE, E) |
| Termination | Solder |
661-009 Series
| Part | Dielectric Material | Shell Material, Finish | Features | Shell Size, Connector Layout | Contact Material | Connector Type | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Contact Finish Thickness | Contact Finish | Number of Positions | Backset Spacing | Backset Spacing | Connector Style | Contact Type | Material Flammability Rating | Color | Current Rating (Amps) | Flange Feature | Mounting Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyester Thermoplastic | Nickel Plated Steel | Board Lock Grounding Indents Mounting Brackets Shielded | 1 (DE E) | Brass | Male Pins Plug | Solder | 85 °C | -55 °C | 2 | Flash | Gold | 9 | 8.08 mm | 0.318 " | D-Sub - Stacked | Signal | UL94 V-0 | Black | 3 A | Housing/Shell (4-40) | Panel Mount Right Angle Through Hole | ||
EDAC Inc. | Polyester Thermoplastic | Nickel Plated Steel | Board Lock Grounding Indents Mounting Brackets Shielded | 1 (DE E) | Brass | Male Pins Plug | Solder | 85 °C | -55 °C | 2 | Gold | 9 | 8.08 mm | 0.318 " | D-Sub - Stacked | Signal | UL94 V-0 | Black | 3 A | Housing/Shell (M3) | Panel Mount Right Angle Through Hole | 0.76 Ám | 30 Áin | |
EDAC Inc. | Polyester Thermoplastic | Nickel Plated Steel | Grounding Indents Mounting Brackets Shielded | 1 (DE E) | Brass | Male Pins Plug | Solder | 85 °C | -55 °C | 2 | Flash | Gold | 9 | 8.08 mm | 0.318 " | D-Sub - Stacked | Signal | UL94 V-0 | Black | 3 A | Housing/Shell (4-40) | Panel Mount Right Angle Through Hole | ||
EDAC Inc. | Polyester Thermoplastic | Nickel Plated Steel | Grounding Indents Mounting Brackets Shielded | 1 (DE E) | Brass | Male Pins Plug | Solder | 85 °C | -55 °C | 2 | Gold | 9 | 8.08 mm | 0.318 " | D-Sub - Stacked | Signal | UL94 V-0 | Black | 3 A | Housing/Shell (Unthreaded) | Panel Mount Right Angle Through Hole | 0.76 Ám | 30 Áin | |
EDAC Inc. | Polyester Thermoplastic | Nickel Plated Steel | Grounding Indents Mounting Brackets Shielded | 1 (DE E) | Brass | Male Pins Plug | Solder | 85 °C | -55 °C | 2 | Flash | Gold | 9 | 8.08 mm | 0.318 " | D-Sub - Stacked | Signal | UL94 V-0 | Black | 3 A | Female Screwlock (4-40) Mating Side | Panel Mount Right Angle Through Hole | ||
EDAC Inc. | Polyester Thermoplastic | Nickel Plated Steel | Grounding Indents Mounting Brackets Shielded | 1 (DE E) | Brass | Male Pins Plug | Solder | 85 °C | -55 °C | 2 | Flash | Gold | 9 | 8.08 mm | 0.318 " | D-Sub - Stacked | Signal | UL94 V-0 | Black | 3 A | Housing/Shell (4-40) | Panel Mount Right Angle Through Hole | ||
EDAC Inc. | Polyester Thermoplastic | Nickel Plated Steel | Board Lock Grounding Indents Mounting Brackets Shielded | 1 (DE E) | Brass | Male Pins Plug | Solder | 85 °C | -55 °C | 2 | Gold | 9 | 8.08 mm | 0.318 " | D-Sub - Stacked | Signal | UL94 V-0 | Black | 3 A | Housing/Shell (Unthreaded) | Panel Mount Right Angle Through Hole | 0.38 µm | 15 µin | |
EDAC Inc. | Polyester Thermoplastic | Nickel Plated Steel | Grounding Indents Mounting Brackets Shielded | 1 (DE E) | Brass | Male Pins Plug | Solder | 85 °C | -55 °C | 2 | Gold | 9 | 8.08 mm | 0.318 " | D-Sub - Stacked | Signal | UL94 V-0 | Black | 3 A | Housing/Shell (4-40) | Panel Mount Right Angle Through Hole | 0.76 Ám | 30 Áin | |
EDAC Inc. | Polyester Thermoplastic | Nickel Plated Steel | Grounding Indents Mounting Brackets Shielded | 1 (DE E) | Brass | Male Pins Plug | Solder | 85 °C | -55 °C | 2 | Flash | Gold | 9 | 8.08 mm | 0.318 " | D-Sub - Stacked | Signal | UL94 V-0 | Black | 3 A | Female Screwlock (4-40) Mating Side | Panel Mount Right Angle Through Hole | ||
EDAC Inc. | Polyester Thermoplastic | Nickel Plated Steel | Grounding Indents Mounting Brackets Shielded | 1 (DE E) | Brass | Male Pins Plug | Solder | 85 °C | -55 °C | 2 | Gold | 9 | 8.08 mm | 0.318 " | D-Sub - Stacked | Signal | UL94 V-0 | Black | 3 A | Housing/Shell (M3) | Panel Mount Right Angle Through Hole | 0.76 Ám | 30 Áin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
661-009 Series
9, 9 Position D-Sub - Stacked Plug, Male Pins Connector
