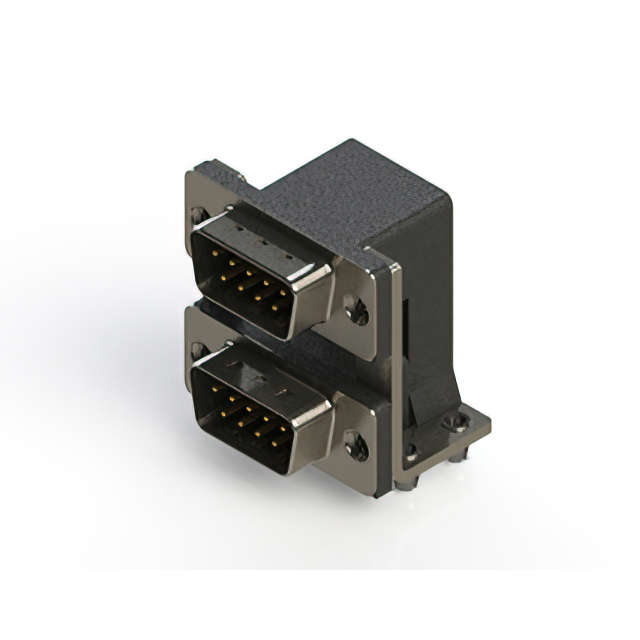

661-009-264-045

Active

EDAC Inc.

661 SERIES RIGHT ANGLE DUAL D-SU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	661-009-264-045

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets, Grounding Indents, Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	1 (DE, E)
Termination	Solder

661-009 Series

Part	Dielectric Material	Shell Material, Finish	Features	Shell Size, Connector Layout	Contact Material	Connector Type	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Finish Thickness	Contact Finish	Number of Positions	Backset Spacing	Backset Spacing	Connector Style	Contact Type	Material Flammability Rating	Color	Current Rating (Amps)	Flange Feature	Mounting Type	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 661-009-264-045	Polyester Thermoplastic	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets Shielded	1 (DE E)	Brass	Male Pins Plug	Solder	85 °C	-55 °C	2	Flash	Gold	9	8.08 mm	0.318 "	D-Sub - Stacked	Signal	UL94 V-0	Black	3 A	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole
EDAC Inc. 661-009-664-04C	Polyester Thermoplastic	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets Shielded	1 (DE E)	Brass	Male Pins Plug	Solder	85 °C	-55 °C	2		Gold	9	8.08 mm	0.318 "	D-Sub - Stacked	Signal	UL94 V-0	Black	3 A	Housing/Shell (M3)	Panel Mount Right Angle Through Hole	0.76 Ám	30 Áin
EDAC Inc. 661-009-264-052	Polyester Thermoplastic	Nickel Plated Steel	Grounding Indents Mounting Brackets Shielded	1 (DE E)	Brass	Male Pins Plug	Solder	85 °C	-55 °C	2	Flash	Gold	9	8.08 mm	0.318 "	D-Sub - Stacked	Signal	UL94 V-0	Black	3 A	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole
EDAC Inc. 661-009-664-050	Polyester Thermoplastic	Nickel Plated Steel	Grounding Indents Mounting Brackets Shielded	1 (DE E)	Brass	Male Pins Plug	Solder	85 °C	-55 °C	2		Gold	9	8.08 mm	0.318 "	D-Sub - Stacked	Signal	UL94 V-0	Black	3 A	Housing/Shell (Unthreaded)	Panel Mount Right Angle Through Hole	0.76 Ám	30 Áin
EDAC Inc. 661-009-264-059	Polyester Thermoplastic	Nickel Plated Steel	Grounding Indents Mounting Brackets Shielded	1 (DE E)	Brass	Male Pins Plug	Solder	85 °C	-55 °C	2	Flash	Gold	9	8.08 mm	0.318 "	D-Sub - Stacked	Signal	UL94 V-0	Black	3 A	Female Screwlock (4-40) Mating Side	Panel Mount Right Angle Through Hole
EDAC Inc. 661-009-264-058	Polyester Thermoplastic	Nickel Plated Steel	Grounding Indents Mounting Brackets Shielded	1 (DE E)	Brass	Male Pins Plug	Solder	85 °C	-55 °C	2	Flash	Gold	9	8.08 mm	0.318 "	D-Sub - Stacked	Signal	UL94 V-0	Black	3 A	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole
EDAC Inc. 661-009-364-037	Polyester Thermoplastic	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets Shielded	1 (DE E)	Brass	Male Pins Plug	Solder	85 °C	-55 °C	2		Gold	9	8.08 mm	0.318 "	D-Sub - Stacked	Signal	UL94 V-0	Black	3 A	Housing/Shell (Unthreaded)	Panel Mount Right Angle Through Hole	0.38 µm	15 µin
EDAC Inc. 661-009-664-008	Polyester Thermoplastic	Nickel Plated Steel	Grounding Indents Mounting Brackets Shielded	1 (DE E)	Brass	Male Pins Plug	Solder	85 °C	-55 °C	2		Gold	9	8.08 mm	0.318 "	D-Sub - Stacked	Signal	UL94 V-0	Black	3 A	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole	0.76 Ám	30 Áin
EDAC Inc. 661-009-264-056	Polyester Thermoplastic	Nickel Plated Steel	Grounding Indents Mounting Brackets Shielded	1 (DE E)	Brass	Male Pins Plug	Solder	85 °C	-55 °C	2	Flash	Gold	9	8.08 mm	0.318 "	D-Sub - Stacked	Signal	UL94 V-0	Black	3 A	Female Screwlock (4-40) Mating Side	Panel Mount Right Angle Through Hole
EDAC Inc. 661-009-664-05C	Polyester Thermoplastic	Nickel Plated Steel	Grounding Indents Mounting Brackets Shielded	1 (DE E)	Brass	Male Pins Plug	Solder	85 °C	-55 °C	2		Gold	9	8.08 mm	0.318 "	D-Sub - Stacked	Signal	UL94 V-0	Black	3 A	Housing/Shell (M3)	Panel Mount Right Angle Through Hole	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.56
		10	$ 5.04
		25	$ 4.78
		45	$ 4.67
		90	$ 4.44
		270	$ 3.89
		450	$ 3.78
		945	$ 3.22
		2430	$ 3.00

Description

General part information

661-009 Series

9, 9 Position D-Sub - Stacked Plug, Male Pins Connector
