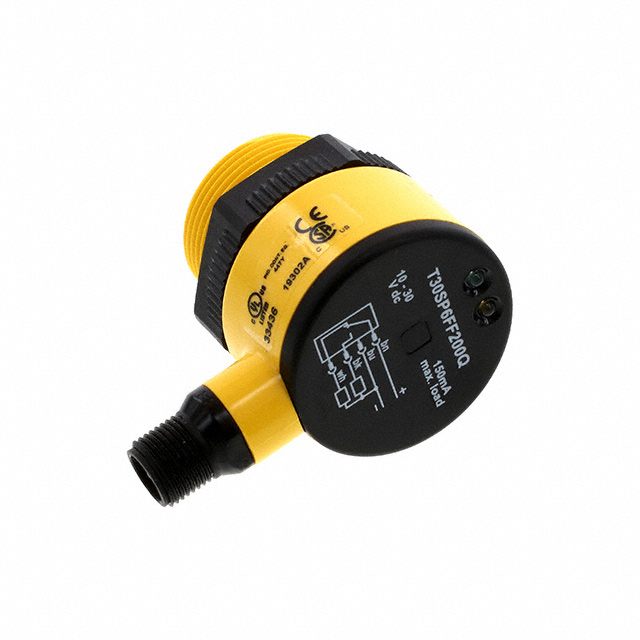

T30SP6FF200Q

Active

BANNER ENGINEERING

DISTANCE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

BANNER ENGINEERING

DISTANCE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Light Source	Output Configuration	Sensing Method	Ingress Protection	Connection Method	Sensing Distance	Sensing Distance	Voltage - Supply [Max]	Voltage - Supply [Min]	Response Time	Operating Temperature [Min]	Operating Temperature [Max]
BANNER ENGINEERING T30SP6FF400Q	LED	PNP - Dark-ON/Light-ON	Reflective	IEC IP69K NEMA 6P	Connector	400 mm	15.748 in	30 VDC	10 VDC	3 ms	-40 °C	70 °C
BANNER ENGINEERING T30SP6FF600QP	Infrared LED	Light-On/Dark-On	Background Suppression	IP69K NEMA 6P	Connector	60 cm	23.622 in	30 VDC	10 VDC	3 ms	-40 °C	70 °C
BANNER ENGINEERING T30SP6LPQ	Red LED	PNP - Dark-ON/Light-ON	Polarized Retroreflective	IEC IP69K NEMA 6P	Connector	6 m	236.22 in	30 VDC	10 VDC	3 ms	-40 °C	70 °C
BANNER ENGINEERING T30SP6FF200Q	LED	PNP - Dark-ON/Light-ON	Reflective	IEC IP69K NEMA 6P	Connector	200 mm	7.874 "	30 VDC	10 VDC	3 ms	-40 °C	70 °C
BANNER ENGINEERING T30SP6RQ	LED	PNP	Through-Beam	IP69K NEMA 6P	Connector	60 m	196.85 ft	30 VDC	10 VDC	3 ms	-40 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 136.00
Newark	Each	1	$ 195.58

General part information

Reflective Optical Sensor 7.874" (200mm) PNP - Dark-ON/Light-ON

Technical documentation and resources
