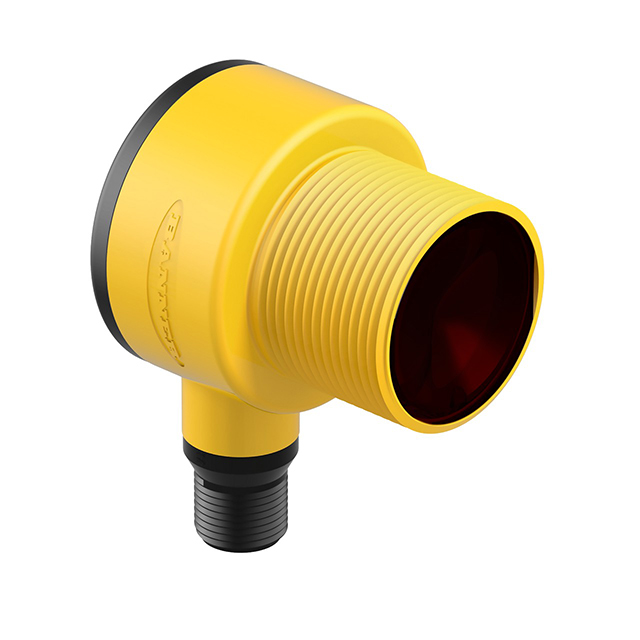

T30SP6RQ

Active

BANNER ENGINEERING

PHOTO SEN RECEIVER 60M COMP PNP

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTO SEN RECEIVER 60M COMP PNP

Technical Specifications

Parameters and characteristics for this part

Part	Light Source	Output Configuration	Sensing Method	Ingress Protection	Connection Method	Sensing Distance	Sensing Distance	Voltage - Supply [Max]	Voltage - Supply [Min]	Response Time	Operating Temperature [Min]	Operating Temperature [Max]
BANNER ENGINEERING T30SP6FF400Q	LED	PNP - Dark-ON/Light-ON	Reflective	IEC IP69K NEMA 6P	Connector	400 mm	15.748 in	30 VDC	10 VDC	3 ms	-40 °C	70 °C
BANNER ENGINEERING T30SP6FF600QP	Infrared LED	Light-On/Dark-On	Background Suppression	IP69K NEMA 6P	Connector	60 cm	23.622 in	30 VDC	10 VDC	3 ms	-40 °C	70 °C
BANNER ENGINEERING T30SP6LPQ	Red LED	PNP - Dark-ON/Light-ON	Polarized Retroreflective	IEC IP69K NEMA 6P	Connector	6 m	236.22 in	30 VDC	10 VDC	3 ms	-40 °C	70 °C
BANNER ENGINEERING T30SP6FF200Q	LED	PNP - Dark-ON/Light-ON	Reflective	IEC IP69K NEMA 6P	Connector	200 mm	7.874 "	30 VDC	10 VDC	3 ms	-40 °C	70 °C
BANNER ENGINEERING T30SP6RQ	LED	PNP	Through-Beam	IP69K NEMA 6P	Connector	60 m	196.85 ft	30 VDC	10 VDC	3 ms	-40 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 84.00
Newark	Each	1	$ 86.00

General part information

Through-Beam Optical Sensor 196.85' (60m) PNP
