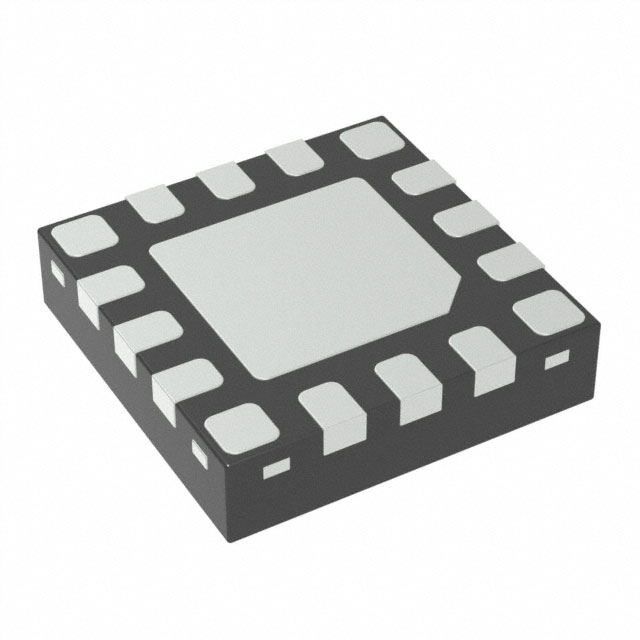

SI4709-B-GM
ObsoleteSkyworks Solutions Inc.
TUNERS RADIO 108MHZ 16-PIN QFN EP TRAY
SI4709-B-GM
ObsoleteSkyworks Solutions Inc.
TUNERS RADIO 108MHZ 16-PIN QFN EP TRAY
Description
General part information
SI4709 Series
- RF Receiver FM 76MHz ~ 108MHz PCB, Surface Mount 16-QFN (2.5x2.5)
Technical Specifications
Parameters and characteristics for this part
| Specification | SI4709-B-GM |
|---|---|
| Antenna Connector | PCB, Surface Mount |
| Applications | General Purpose |
| Current - Receiving | 16 mA |
| Data Interface | PCB, Surface Mount |
| Frequency (Max) | 108 MHz |
| Frequency (Min) | 76 MHz |
| Modulation or Protocol | FM |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | 16-UFQFN Exposed Pad |
| Package Length | 2.5 mm |
| Package Name | 16-QFN |
| Package Width | 2.5 mm |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 2.7 V |
