SI4709-C-GMR
Skyworks Solutions Inc.
FM RECEIVER W RDS - ULTRA SMALL
Deep-Dive with AI
Search across all available documentation for this part.
SI4709-C-GMR
Skyworks Solutions Inc.
FM RECEIVER W RDS - ULTRA SMALL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SI4709-C-GMR |
|---|---|
| Antenna Connector | PCB, Surface Mount |
| Applications | General Purpose |
| Current - Receiving | 21.1 mA |
| Data Interface | Surface Mount, PCB |
| Frequency [Max] | 108 MHz |
| Frequency [Min] | 76 MHz |
| Modulation or Protocol | FM |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -20 °C |

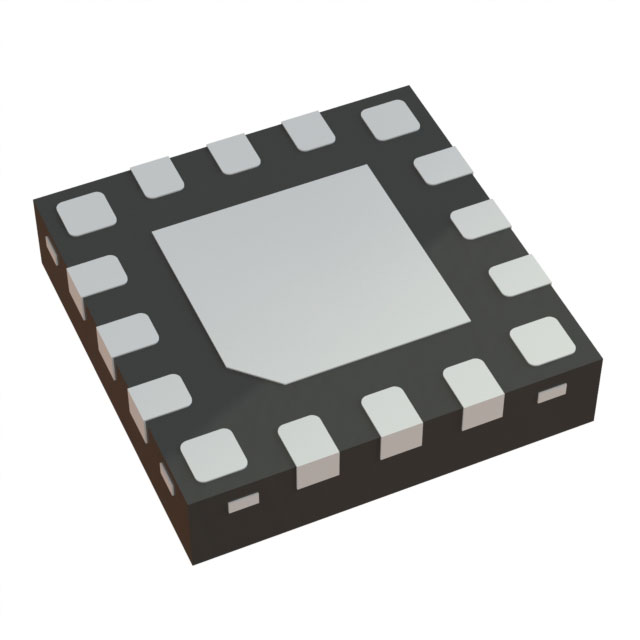

| Package / Case | 16-UFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (2.5x2.5) |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.47 | |
| 10 | $ 3.41 | |||
| 25 | $ 3.09 | |||
| 100 | $ 2.70 | |||
| 250 | $ 2.49 | |||
| 500 | $ 2.36 | |||
| 1000 | $ 2.24 | |||
| Digi-Reel® | 1 | $ 4.47 | ||
| 10 | $ 3.41 | |||
| 25 | $ 3.09 | |||
| 100 | $ 2.70 | |||
| 250 | $ 2.49 | |||
| 500 | $ 2.36 | |||
| 1000 | $ 2.24 | |||
| Tape & Reel (TR) | 5000 | $ 2.03 | ||
Description
General part information
SI4709 Series
- RF Receiver FM 76MHz ~ 108MHz PCB, Surface Mount 16-QFN (2.5x2.5)
Documents
Technical documentation and resources
