2002-3207

Active

WAGO Corporation

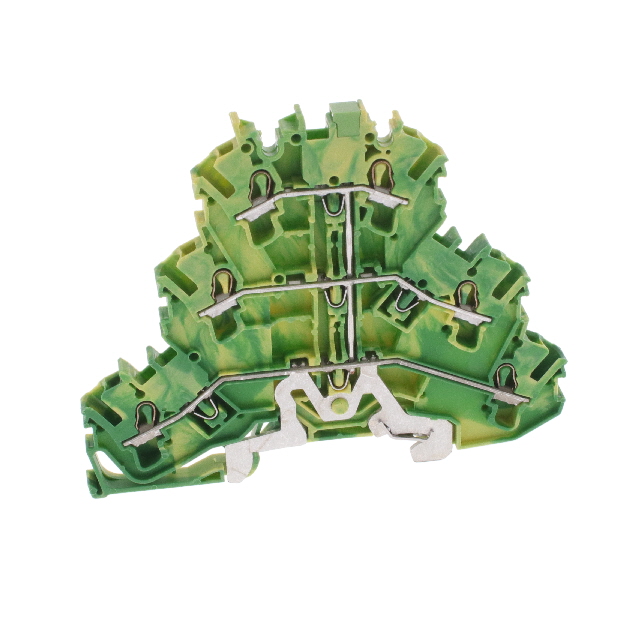

CONN TERMINAL BLOCK 6 POS PUSH-IN CAGE CLAMP T DIN RAIL 24A BOX

Deep-Dive with AI

Search across all available documentation for this part.

2002-3207

Active

WAGO Corporation

CONN TERMINAL BLOCK 6 POS PUSH-IN CAGE CLAMP T DIN RAIL 24A BOX

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.46
		10	$ 13.36
		100	$ 11.91

Description

General part information

2002 Series

Terminal Block Connector 6 Position Ground, Earth Green, Yellow 12-18 AWG

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2002-3207	2002 Series

Color	Green, Yellow	Gray, Green, Yellow, Blue, Black, Red
Current - IEC	-	6.3 - 32 A
Current - UL	-	6.3 - 20 A
Disconnect Type	-	Fuse, Lever, Removable Plug, Switch, Knife
Features	-	LED, LED Indicator
For Use With/Related Products	-	TOPJOB®S Series
Fuse Type	-	20 mm
Fuse Type	-	5 mm
Material - Insulation	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Number of Levels	Connected	Connected
Number of Levels	3	1 - 3
Number of Levels	-	3
Number of Positions	6	1 - 10
Stripping Length [Max]	12 mm	12 mm
Stripping Length [Min]	10 mm	10 mm
Style	-	Flat Pins
Terminal - Width [y]	5.2 mm	5.2 - 6.2 mm
Termination Style	Push In, Spring	Push In, Spring
Type	Ground, Earth	End Plate, Feed Through, Disconnect, Terminal Block, Cross Connection, Ground, Earth, Component Plug
Voltage - IEC	-	250 - 800 V
Voltage - UL	-	30 - 600 V
Voltage - UL	-	250 V
Voltage - UL	-	300 V
Wire Gauge or Range - AWG [Max]	18 AWG	18 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm˛	-	4 mm˛
Wire Gauge or Range - mm˛	-	0.75 mm˛
Wire Gauge or Range - mm² [Max]	4 mm²	4 mm²
Wire Gauge or Range - mm² [Min]	0.75 mm²	0.75 - 1 mm²

2002 Series

END / INTERMEDIATE PLATE, FOR USE WITH 22 (TOPJOB S RAIL-MOUNTED TERMINAL BLOCKS), GREY

...

Part	Color	For Use With/Related Products	Type	Material - Insulation	Current - UL	Stripping Length [Min]	Stripping Length [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Current - IEC	Termination Style	Voltage - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Positions	Voltage - UL	Terminal - Width [y]	Number of Levels	Voltage - UL [custom]	Fuse Type [y]	Fuse Type [x]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Disconnect Type	Style	Voltage - UL [custom]
WAGO Corporation 2002-1291	Gray	TOPJOB®S Series	End Plate
WAGO Corporation 2002-2401	Gray		Feed Through	Polyamide (PA66), Nylon 6/6	20 A	10 mm	12 mm	12 AWG	18 AWG	28 A	Push In, Spring	800 V	0.75 mm²	4 mm²	8	600 V	5.2 mm	2
WAGO Corporation 2002-1391	Gray	TOPJOB®S Series	End Plate
WAGO Corporation 2002-1611	Gray		Disconnect	Polyamide (PA66), Nylon 6/6	6.3 A	10 mm	12 mm	12 AWG	18 AWG	6.3 A	Push In, Spring	250 V			2		6.2 mm	1	250 V	20 mm	5 mm	4 mm˛	0.75 mm˛	Fuse, Lever
WAGO Corporation 2002-6301	Gray		Feed Through	Polyamide (PA66), Nylon 6/6	20 A	10 mm	12 mm	12 AWG	18 AWG	32 A	Push In, Spring	800 V	0.75 mm²	4 mm²		600 V	5.2 mm	1
WAGO Corporation 2002-493	Gray	TOPJOB®S Series	Terminal Block, Cross Connection												1										Flat Pins
WAGO Corporation 2002-2208	Gray		Feed Through	Polyamide (PA66), Nylon 6/6	20 A	10 mm	12 mm	12 AWG	18 AWG	28 A	Push In, Spring	500 V	0.75 mm²	4 mm²	4		5.2 mm	2								300 V
WAGO Corporation 2002-6391	Gray	TOPJOB®S Series	End Plate
WAGO Corporation 2002-992		TOPJOB®S Series	End Plate
WAGO Corporation 2002-406	Gray	TOPJOB®S Series	Terminal Block, Cross Connection												6										Flat Pins
