2002-6391

Active

WAGO Corporation

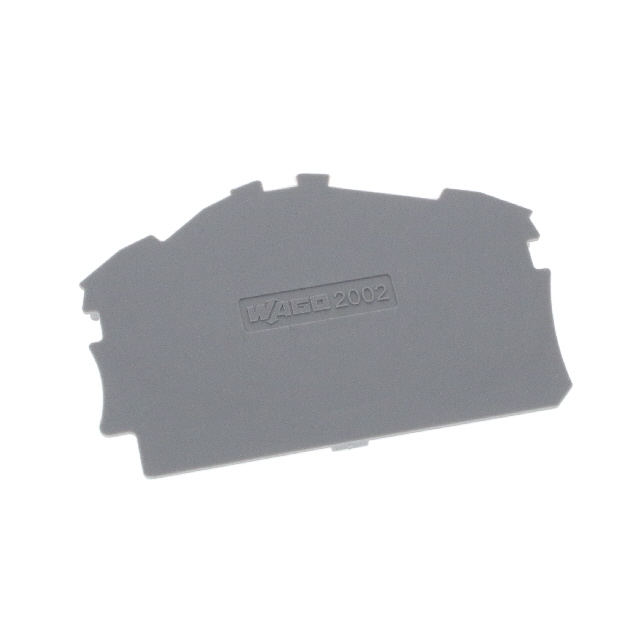

END AND INTERMEDIATE PLATE; 0.8

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.58
		25	$ 1.32
		100	$ 1.23
		1000	$ 0.88
		5000	$ 0.78
		10000	$ 0.76

Description

General part information

2002 Series

Connector End Plate For TOPJOB®S Series

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2002-6391	2002 Series

Color	Gray	Gray, Green, Yellow, Blue, Black, Red
Current - IEC	-	6.3 - 32 A
Current - UL	-	6.3 - 20 A
Disconnect Type	-	Fuse, Lever, Removable Plug, Switch, Knife
Features	-	LED, LED Indicator
For Use With/Related Products	TOPJOB®S Series	TOPJOB®S Series
Fuse Type	-	20 mm
Fuse Type	-	5 mm
Material - Insulation	-	Polyamide (PA66), Nylon 6/6
Number of Levels	-	1 - 3
Number of Levels	-	Connected
Number of Levels	-	3
Number of Positions	-	1 - 10
Stripping Length	-	10 mm
Stripping Length	-	12 mm
Style	-	Flat Pins
Terminal - Width	-	5.2 - 6.2 mm
Termination Style	-	Push In, Spring
Type	End Plate	End Plate, Feed Through, Disconnect, Terminal Block, Cross Connection, Ground, Earth, Component Plug
Voltage - IEC	-	250 - 800 V
Voltage - UL	-	30 - 600 V
Voltage - UL	-	250 V
Voltage - UL	-	300 V
Wire Gauge or Range - AWG	-	12 AWG
Wire Gauge or Range - AWG	-	18 AWG
Wire Gauge or Range - mm˛	-	4 mm˛
Wire Gauge or Range - mm˛	-	0.75 mm˛
Wire Gauge or Range - mm²	-	0.75 - 1 mm²
Wire Gauge or Range - mm²	-	4 mm²

2002 Series

END / INTERMEDIATE PLATE, FOR USE WITH 22 (TOPJOB S RAIL-MOUNTED TERMINAL BLOCKS), GREY

...

Part	Color	For Use With/Related Products	Type	Material - Insulation	Current - UL	Stripping Length [Min]	Stripping Length [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Current - IEC	Termination Style	Voltage - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Positions	Voltage - UL	Terminal - Width [y]	Number of Levels	Voltage - UL [custom]	Fuse Type [y]	Fuse Type [x]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Disconnect Type	Style	Voltage - UL [custom]
WAGO Corporation 2002-1291	Gray	TOPJOB®S Series	End Plate
WAGO Corporation 2002-2401	Gray		Feed Through	Polyamide (PA66), Nylon 6/6	20 A	10 mm	12 mm	12 AWG	18 AWG	28 A	Push In, Spring	800 V	0.75 mm²	4 mm²	8	600 V	5.2 mm	2
WAGO Corporation 2002-1391	Gray	TOPJOB®S Series	End Plate
WAGO Corporation 2002-1611	Gray		Disconnect	Polyamide (PA66), Nylon 6/6	6.3 A	10 mm	12 mm	12 AWG	18 AWG	6.3 A	Push In, Spring	250 V			2		6.2 mm	1	250 V	20 mm	5 mm	4 mm˛	0.75 mm˛	Fuse, Lever
WAGO Corporation 2002-6301	Gray		Feed Through	Polyamide (PA66), Nylon 6/6	20 A	10 mm	12 mm	12 AWG	18 AWG	32 A	Push In, Spring	800 V	0.75 mm²	4 mm²		600 V	5.2 mm	1
WAGO Corporation 2002-493	Gray	TOPJOB®S Series	Terminal Block, Cross Connection												1										Flat Pins
WAGO Corporation 2002-2208	Gray		Feed Through	Polyamide (PA66), Nylon 6/6	20 A	10 mm	12 mm	12 AWG	18 AWG	28 A	Push In, Spring	500 V	0.75 mm²	4 mm²	4		5.2 mm	2								300 V
WAGO Corporation 2002-6391	Gray	TOPJOB®S Series	End Plate
WAGO Corporation 2002-992		TOPJOB®S Series	End Plate
WAGO Corporation 2002-406	Gray	TOPJOB®S Series	Terminal Block, Cross Connection												6										Flat Pins
