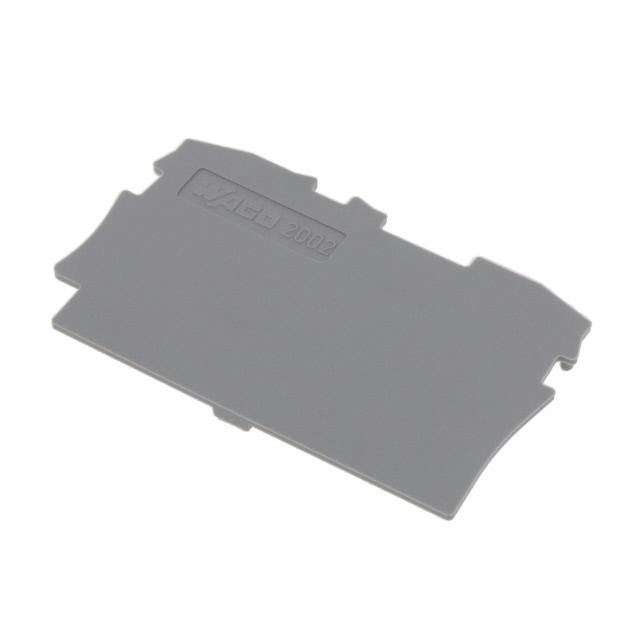

END / INTERMEDIATE PLATE, FOR USE WITH 22 (TOPJOB S RAIL-MOUNTED TERMINAL BLOCKS), GREY

Deep-Dive with AI

Search across all available documentation for this part.

Documents3D Product Image EN

2002-1291

Active

WAGO Corporation

END / INTERMEDIATE PLATE, FOR USE WITH 22 (TOPJOB S RAIL-MOUNTED TERMINAL BLOCKS), GREY

Deep-Dive with AI

Documents3D Product Image EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.52
		10	$ 1.32
		25	$ 1.27
		50	$ 1.24
		100	$ 1.18
		250	$ 1.07
		500	$ 0.99
		1000	$ 0.85
		2500	$ 0.79
Newark	Each	1	$ 1.60
		25	$ 1.52
		100	$ 1.41
		250	$ 1.34
		500	$ 1.25

Description

General part information

2002 Series

The 2002-1291 from Wago is a 2 Conductor End and Intermediate Plate, designed for the 2001-120x and 2002-120x Terminal Block Series.

Documents

Technical documentation and resources

3D Product Image EN

Datasheet

Specification	2002-1291	2002 Series

Color	Gray	Gray, Green, Yellow, Blue, Black, Red
Current - IEC	-	6.3 - 32 A
Current - UL	-	6.3 - 20 A
Disconnect Type	-	Fuse, Lever, Removable Plug, Switch, Knife
Features	-	LED, LED Indicator
For Use With/Related Products	TOPJOB®S Series	TOPJOB®S Series
Fuse Type	-	20 mm
Fuse Type	-	5 mm
Material - Insulation	-	Polyamide (PA66), Nylon 6/6
Number of Levels	-	1 - 3
Number of Levels	-	Connected
Number of Levels	-	3
Number of Positions	-	1 - 10
Stripping Length	-	10 mm
Stripping Length	-	12 mm
Style	-	Flat Pins
Terminal - Width	-	5.2 - 6.2 mm
Termination Style	-	Push In, Spring
Type	End Plate	End Plate, Feed Through, Disconnect, Terminal Block, Cross Connection, Ground, Earth, Component Plug
Voltage - IEC	-	250 - 800 V
Voltage - UL	-	30 - 600 V
Voltage - UL	-	250 V
Voltage - UL	-	300 V
Wire Gauge or Range - AWG	-	12 AWG
Wire Gauge or Range - AWG	-	18 AWG
Wire Gauge or Range - mm˛	-	4 mm˛
Wire Gauge or Range - mm˛	-	0.75 mm˛
Wire Gauge or Range - mm²	-	0.75 - 1 mm²
Wire Gauge or Range - mm²	-	4 mm²

Part	Color	For Use With/Related Products	Type	Material - Insulation	Current - UL	Stripping Length [Min]	Stripping Length [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Current - IEC	Termination Style	Voltage - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Positions	Voltage - UL	Terminal - Width [y]	Number of Levels	Voltage - UL [custom]	Fuse Type [y]	Fuse Type [x]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Disconnect Type	Style	Voltage - UL [custom]
WAGO Corporation 2002-1291	Gray	TOPJOB®S Series	End Plate
WAGO Corporation 2002-2401	Gray		Feed Through	Polyamide (PA66), Nylon 6/6	20 A	10 mm	12 mm	12 AWG	18 AWG	28 A	Push In, Spring	800 V	0.75 mm²	4 mm²	8	600 V	5.2 mm	2
WAGO Corporation 2002-1391	Gray	TOPJOB®S Series	End Plate
WAGO Corporation 2002-1611	Gray		Disconnect	Polyamide (PA66), Nylon 6/6	6.3 A	10 mm	12 mm	12 AWG	18 AWG	6.3 A	Push In, Spring	250 V			2		6.2 mm	1	250 V	20 mm	5 mm	4 mm˛	0.75 mm˛	Fuse, Lever
WAGO Corporation 2002-6301	Gray		Feed Through	Polyamide (PA66), Nylon 6/6	20 A	10 mm	12 mm	12 AWG	18 AWG	32 A	Push In, Spring	800 V	0.75 mm²	4 mm²		600 V	5.2 mm	1
WAGO Corporation 2002-493	Gray	TOPJOB®S Series	Terminal Block, Cross Connection												1										Flat Pins
WAGO Corporation 2002-2208	Gray		Feed Through	Polyamide (PA66), Nylon 6/6	20 A	10 mm	12 mm	12 AWG	18 AWG	28 A	Push In, Spring	500 V	0.75 mm²	4 mm²	4		5.2 mm	2								300 V
WAGO Corporation 2002-6391	Gray	TOPJOB®S Series	End Plate
WAGO Corporation 2002-992		TOPJOB®S Series	End Plate
WAGO Corporation 2002-406	Gray	TOPJOB®S Series	Terminal Block, Cross Connection												6										Flat Pins
