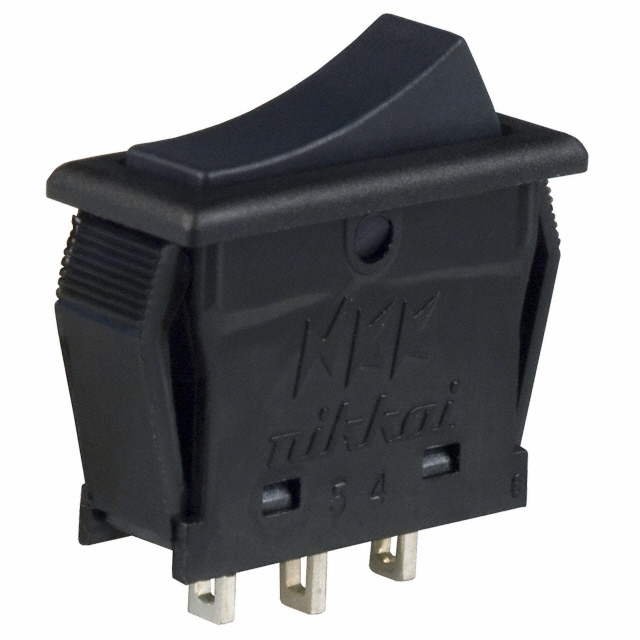

CWT12AAS1

Active

NKK Switches

ROCKER SWITCH, ON-NONE-ON, SPDT, NON ILLUMINATED, PANEL MOUNT, BLACK, CW SERIES

Search across all available documentation for this part.

Active

NKK Switches

ROCKER SWITCH, ON-NONE-ON, SPDT, NON ILLUMINATED, PANEL MOUNT, BLACK, CW SERIES

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - AC	Color - Actuator/Cap	Electrical Life	Actuator Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Termination Style	Ingress Protection	Actuator Marking	Mounting Type	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Features	Voltage Rating - DC	Current Rating (Amps)
NKK Switches CWT12AAS1/UC	125 V	Black	25000 Steps	Concave (Curved)	19.2 mm	6.8 mm	cULus	Solder Lug	Dust Proof	No Marking	Panel Mount Snap-In	On-On	70 °C	-25 °C	SPDT	Epoxy Sealed Terminals	30 V	4 A 6 A
NKK Switches CWT12AAS1	125 V	Black	25000 Steps	Concave (Curved)	19.2 mm	6.8 mm	cULus	Solder Lug	Dust Proof	No Marking	Panel Mount Snap-In	On-On	70 °C	-25 °C	SPDT	Epoxy Sealed Terminals	30 V	4 A 6 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 6A (AC), 4A (DC) 125 V Panel Mount, Snap-In
