CWT12AA Series

Part	Actuator Type	Switch Function	Actuator Marking	Features	Voltage Rating - AC	Ingress Protection	Termination Style	Color - Actuator/Cap	Current Rating	Mounting Type	Voltage Rating - DC	Approval Agency	Panel Cutout Shape	Panel Cutout Length	Panel Cutout Width	Circuit	Operating Temperature (Max)	Operating Temperature (Min)	Electrical Life (Cycles)	Mechanical Life (Cycles)
NKK Switches CWT12AAS1/U	Concave (Curved)	On-On	No Marking	Epoxy Sealed Terminals	125 V	Dust Proof	Solder Lug	Black	4 A 6 A	Panel Mount Snap-In	30 V	cULus	Rectangular	19.2 mm	6.8 mm	SPDT	70 °C	-25 °C	25000	50000 Cycles

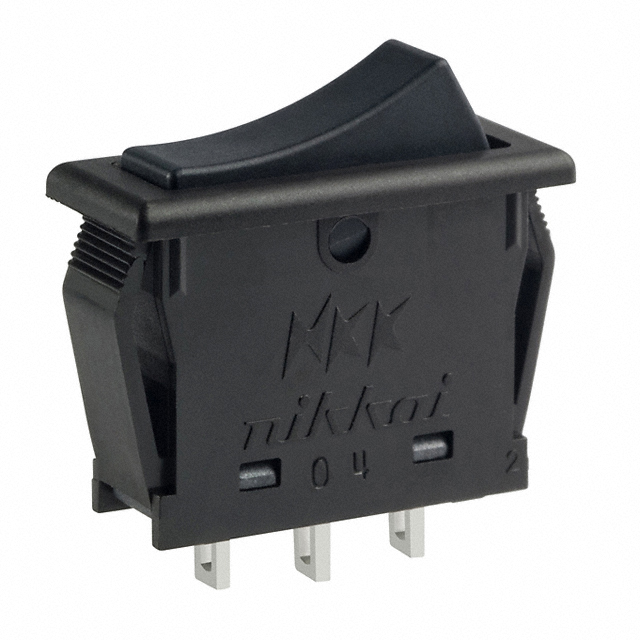

NKK Switches CWT12AAS1/UC	Concave (Curved)	On-On	No Marking	Epoxy Sealed Terminals	125 V	Dust Proof	Solder Lug	Black	4 A 6 A	Panel Mount Snap-In	30 V	cULus	Rectangular	19.2 mm	6.8 mm	SPDT	70 °C	-25 °C	25000	50000 Cycles
NKK Switches CWT12AAS1	Concave (Curved)	On-On	No Marking	Epoxy Sealed Terminals	125 V	Dust Proof	Solder Lug	Black	4 A 6 A	Panel Mount Snap-In	30 V	cULus	Rectangular	19.2 mm	6.8 mm	SPDT	70 °C	-25 °C	25000	50000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
