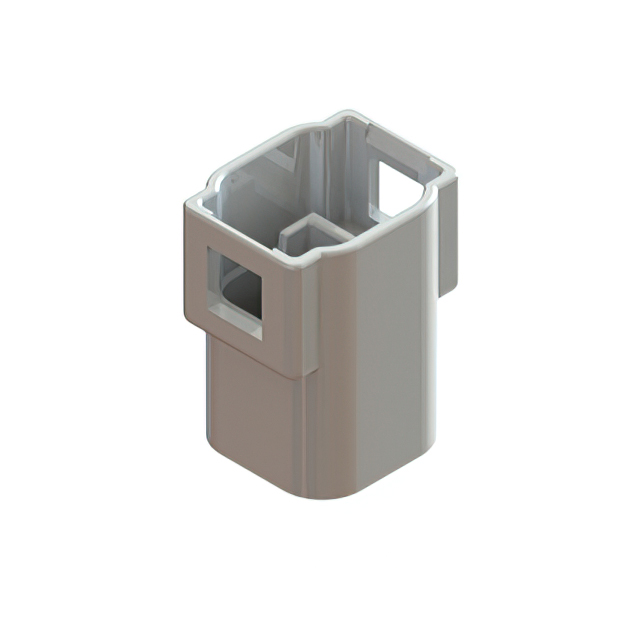

572-001-420-101

Active

EDAC Inc.

CONN HEADER VERT 1POS

Search across all available documentation for this part.

Active

EDAC Inc.

CONN HEADER VERT 1POS

Technical Specifications

Parameters and characteristics for this part

Specification	572-001-420-101

Applications	Automotive, General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	10 A
Fastening Type	Latch Holder
Ingress Protection	IP67
Insulation Color	White
Insulation Height	0.768 "
Insulation Height	19.5 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Contact Termination	Number of Positions	Color	Connector Type	Features	Note	Insulation Material	Fastening Type	Number of Rows	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions Loaded	Insulation Height	Insulation Height	Current Rating (Amps)	Material Flammability Rating	Applications	Contact Material	Ingress Protection	Insulation Color	Style	Contact Finish - Post	Termination	Shrouding	Contact Shape
EDAC Inc. 572-001-000-400	Crimp	1	Blue	Receptacle	Waterproof	Contacts Not Included	Polybutylene Terephthalate (PBT)	Latch Lock	1	Free Hanging (In-Line)	-40 °C	105 ░C	Female Socket
EDAC Inc. 572-001-420-101		1		Header			Polybutylene Terephthalate (PBT) Glass Filled	Latch Holder	1	Through Hole	-40 °C	105 ░C	Male Pin	All	0.768 "	19.5 mm	10 A	UL94 V-0	Automotive General Purpose	Brass	IP67	White	Board to Cable/Wire	Tin	Solder	Shrouded - 4 Wall	Circular
EDAC Inc. 572-001-000-300	Crimp	1	Blue	Plug	Waterproof	Contacts Not Included	Polybutylene Terephthalate (PBT)	Latch Holder	1	Free Hanging (In-Line)	-40 °C	105 ░C	Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 1.08

General part information

Connector Header Through Hole 1 position
