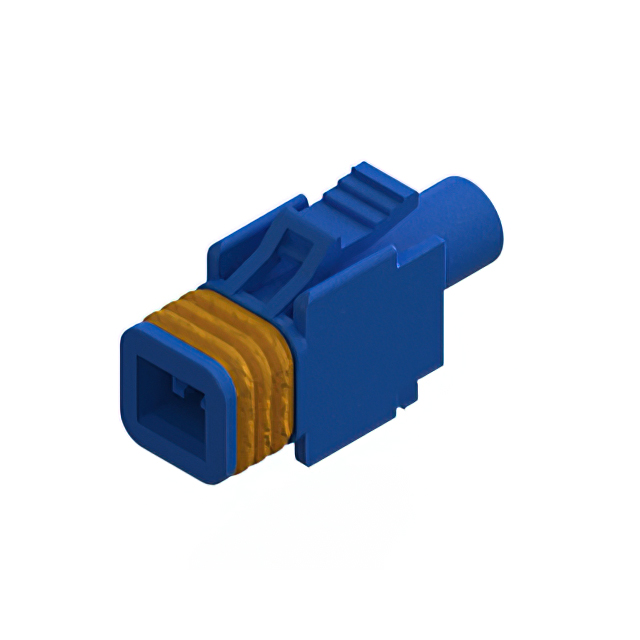

572-001-000-400

Active

EDAC Inc.

CONN RCPT HSG 1POS BLUE

Search across all available documentation for this part.

Active

EDAC Inc.

CONN RCPT HSG 1POS BLUE

Technical Specifications

Parameters and characteristics for this part

Specification	572-001-000-400

Color	Blue
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Waterproof
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	1
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C

Part	Contact Termination	Number of Positions	Color	Connector Type	Features	Note	Insulation Material	Fastening Type	Number of Rows	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions Loaded	Insulation Height	Insulation Height	Current Rating (Amps)	Material Flammability Rating	Applications	Contact Material	Ingress Protection	Insulation Color	Style	Contact Finish - Post	Termination	Shrouding	Contact Shape
EDAC Inc. 572-001-000-400	Crimp	1	Blue	Receptacle	Waterproof	Contacts Not Included	Polybutylene Terephthalate (PBT)	Latch Lock	1	Free Hanging (In-Line)	-40 °C	105 ░C	Female Socket
EDAC Inc. 572-001-420-101		1		Header			Polybutylene Terephthalate (PBT) Glass Filled	Latch Holder	1	Through Hole	-40 °C	105 ░C	Male Pin	All	0.768 "	19.5 mm	10 A	UL94 V-0	Automotive General Purpose	Brass	IP67	White	Board to Cable/Wire	Tin	Solder	Shrouded - 4 Wall	Circular
EDAC Inc. 572-001-000-300	Crimp	1	Blue	Plug	Waterproof	Contacts Not Included	Polybutylene Terephthalate (PBT)	Latch Holder	1	Free Hanging (In-Line)	-40 °C	105 ░C	Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.78

General part information

1 Rectangular Connectors - Housings Receptacle Blue
