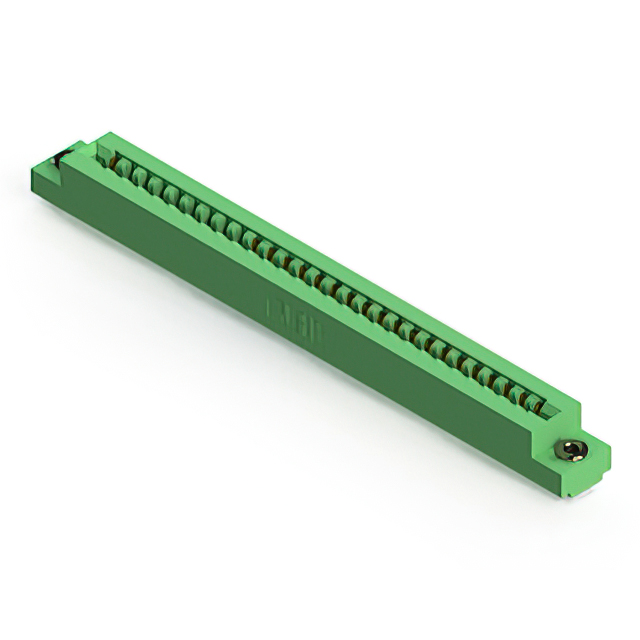

807-028-531-103
ActiveEDAC Inc.
CONN EDGE SGL FMALE 28POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
807-028-531-103
ActiveEDAC Inc.
CONN EDGE SGL FMALE 28POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 807-028-531-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 28 |
| Number of Positions/Bay/Row [custom] | 28 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
807-028 Series
...
| Part | Termination | Mounting Type | Contact Finish | Contact Material | Material - Insulation | Number of Positions/Bay/Row [custom] | Gender | Read Out | Number of Positions | Contact Type | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Color | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder Eyelet(s) | Through Hole | Gold | Copper Alloy | Diallyl Phthalate (DAP) | 28 | Female | Dual | 56 | Semi Bellows | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 125 °C | -40 °C | Green | 1 | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | |||||
EDAC Inc. | Solder | Through Hole Right Angle | Gold | Copper Alloy | Diallyl Phthalate (DAP) | 28 | Female | Single | 28 | Semi Bellows | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 125 °C | -40 °C | Green | 1 | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | ||
EDAC Inc. | Solder | Through Hole Right Angle | Tin | Copper Alloy | Diallyl Phthalate (DAP) | 28 | Female | Single | 28 | Semi Bellows | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 125 °C | -40 °C | Green | 1 | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | ||||||
EDAC Inc. | Solder | Through Hole Right Angle | Tin | Copper Alloy | Diallyl Phthalate (DAP) | 28 | Female | Dual | 56 | Semi Bellows | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 125 °C | -40 °C | Green | 1 | 0.156 in | 3.96 mm | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | ||||
EDAC Inc. | Solder | Through Hole | Gold | Copper Alloy | Diallyl Phthalate (DAP) | 28 | Female | Single | 28 | Semi Bellows | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 125 °C | -40 °C | Green | 1 | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | ||
EDAC Inc. | Solder | Through Hole Right Angle | Gold | Copper Alloy | Diallyl Phthalate (DAP) | 28 | Female | Dual | 56 | Semi Bellows | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 125 °C | -40 °C | Green | 1 | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | ||
EDAC Inc. | Wire Wrap | Through Hole | Tin | Copper Alloy | Diallyl Phthalate (DAP) | 28 | Female | Single | 28 | Semi Bellows | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 125 °C | -40 °C | Green | 1 | 0.156 in | 3.96 mm | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Solder | Through Hole | Tin | Copper Alloy | Diallyl Phthalate (DAP) | 14 | Female | Dual | 28 | Semi Bellows | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 125 °C | -40 °C | Green | 2 | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | ||||||
EDAC Inc. | Solder | Through Hole | Tin | Copper Alloy | Diallyl Phthalate (DAP) | 14 | Female | Dual | 28 | Semi Bellows | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 125 °C | -40 °C | Green | 2 | 0.156 in | 3.96 mm | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | ||||
EDAC Inc. | Solder Eyelet(s) | Through Hole | Tin | Copper Alloy | Diallyl Phthalate (DAP) | 28 | Female | Single | 28 | Semi Bellows | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 125 °C | -40 °C | Green | 1 | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 118.36 | |
Description
General part information
807-028 Series
28 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
