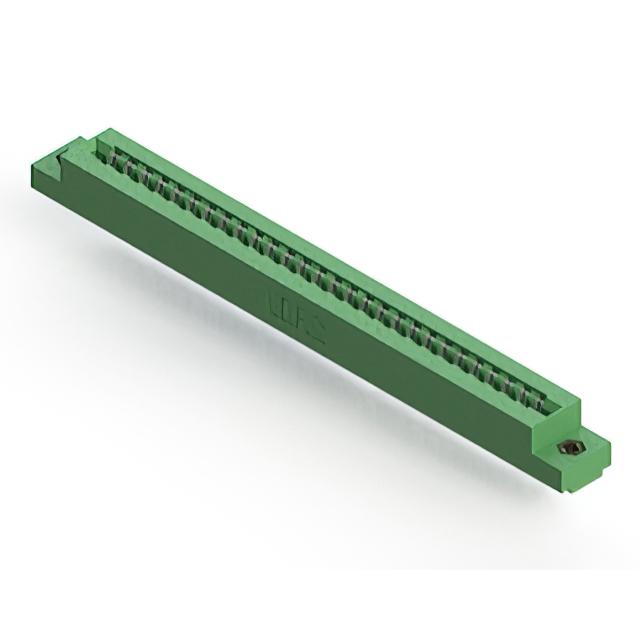

807-028-405-107

Active

EDAC Inc.

CONN EDGE SGL FML 28POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

807-028-405-107

Active

EDAC Inc.

CONN EDGE SGL FML 28POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	807-028-405-107

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	28
Number of Positions/Bay/Row [custom]	28
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder Eyelet(s)
Termination Rows	1

807-028 Series

...

Part	Termination	Mounting Type	Contact Finish	Contact Material	Material - Insulation	Number of Positions/Bay/Row [custom]	Gender	Read Out	Number of Positions	Contact Type	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Color	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature	Flange Feature
EDAC Inc. 807-028-501-101	Solder Eyelet(s)	Through Hole	Gold	Copper Alloy	Diallyl Phthalate (DAP)	28	Female	Dual	56	Semi Bellows	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2	125 °C	-40 °C	Green	1	10 Áin	0.25 Ám	0.156 in	3.96 mm
EDAC Inc. 807-028-559-102	Solder	Through Hole Right Angle	Gold	Copper Alloy	Diallyl Phthalate (DAP)	28	Female	Single	28	Semi Bellows	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	1	125 °C	-40 °C	Green	1	10 Áin	0.25 Ám	0.156 in	3.96 mm	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded
EDAC Inc. 807-028-459-107	Solder	Through Hole Right Angle	Tin	Copper Alloy	Diallyl Phthalate (DAP)	28	Female	Single	28	Semi Bellows	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	1	125 °C	-40 °C	Green	1			0.156 in	3.96 mm			Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 807-028-453-104	Solder	Through Hole Right Angle	Tin	Copper Alloy	Diallyl Phthalate (DAP)	28	Female	Dual	56	Semi Bellows	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2	125 °C	-40 °C	Green	1			0.156 in	3.96 mm	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded
EDAC Inc. 807-028-531-103	Solder	Through Hole	Gold	Copper Alloy	Diallyl Phthalate (DAP)	28	Female	Single	28	Semi Bellows	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	1	125 °C	-40 °C	Green	1	10 Áin	0.25 Ám	0.156 in	3.96 mm	2.95 mm	0.116 in	Floating Bobbin Flush Mount
EDAC Inc. 807-028-553-112	Solder	Through Hole Right Angle	Gold	Copper Alloy	Diallyl Phthalate (DAP)	28	Female	Dual	56	Semi Bellows	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2	125 °C	-40 °C	Green	1	10 Áin	0.25 Ám	0.156 in	3.96 mm			Side Mount Opening Unthreaded	3.25 mm	0.128 in
EDAC Inc. 807-028-445-112	Wire Wrap	Through Hole	Tin	Copper Alloy	Diallyl Phthalate (DAP)	28	Female	Single	28	Semi Bellows	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	1	125 °C	-40 °C	Green	1			0.156 in	3.96 mm			Side Mount Opening Unthreaded	3.25 mm	0.128 in
EDAC Inc. 807-028-420-208	Solder	Through Hole	Tin	Copper Alloy	Diallyl Phthalate (DAP)	14	Female	Dual	28	Semi Bellows	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2	125 °C	-40 °C	Green	2			0.156 in	3.96 mm			4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 807-028-422-202	Solder	Through Hole	Tin	Copper Alloy	Diallyl Phthalate (DAP)	14	Female	Dual	28	Semi Bellows	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2	125 °C	-40 °C	Green	2			0.156 in	3.96 mm	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded
EDAC Inc. 807-028-405-107	Solder Eyelet(s)	Through Hole	Tin	Copper Alloy	Diallyl Phthalate (DAP)	28	Female	Single	28	Semi Bellows	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	1	125 °C	-40 °C	Green	1			0.156 in	3.96 mm			Flush Mount M3 Threaded Insert Top Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 113.85

Description

General part information

807-028 Series

28 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Green
