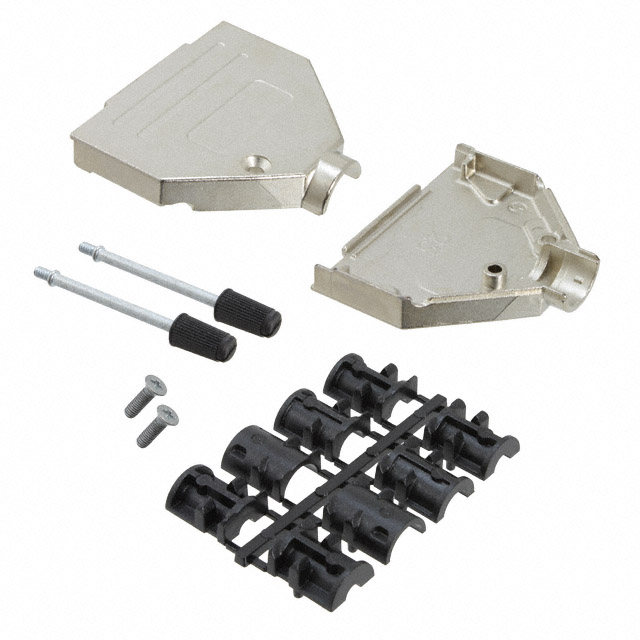

165X02629X

Active

Amphenol CONEC

CONN BACKSHELL 25POS 180DEG SHLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

165X02629X

Active

Amphenol CONEC

CONN BACKSHELL 25POS 180DEG SHLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	165X02629X

Accessory Type	Two Piece Backshell
Cable Exit	180 °
Cable Type	Round
Color	Silver
Compatible D-Sub Size	HD44pos, 25pos
Compatible Shell Size	B
Features	Mating Screws 4-40
Hardware	Strain Relief
Material	Metal, Zinc
Plating	Nickel
Primary Material	Metal
Shielding	Shielded

165X026 Series

Part	Compatible Shell Size	Accessory Type	Compatible D-Sub Size	Number of Positions	Features	Cable Type	Material	Cable Exit	Hardware	Color	Primary Material	Shielding	Plating
Amphenol CONEC 165X02649XE	E	Two Piece Backshell	9pos HD15pos	9	Mating Screws M3	Round	Metal Zinc	180 °	Assembly Hardware Strain Relief	Silver	Metal	Shielded	Nickel
Amphenol CONEC 165X02619X	A	Two Piece Backshell	15pos HD26pos	15	Mating Screws 4-40	Round	Metal Zinc	180 °	Strain Relief	Silver	Metal	Shielded	Nickel
Amphenol CONEC 165X02619XE	A	Two Piece Backshell	15pos HD26pos	15	Mating Screws 4-40	Round	Metal Zinc	180 °	Assembly Hardware Strain Relief	Silver	Metal	Shielded	Nickel
Amphenol CONEC 165X02649X	E	Two Piece Backshell	9pos HD15pos	9	Mating Screws M3	Round	Metal Zinc	180 °	Assembly Hardware Strain Relief	Silver	Metal	Shielded	Nickel
Amphenol CONEC 165X02689X	E	Two Piece Backshell	9pos HD15pos	9	Mating Screws 4-40	Round	Metal Zinc	45 °	Assembly Hardware Grommets	Silver	Metal	Shielded	Nickel
Amphenol CONEC 165X02689XE	E	Two Piece Backshell	9pos HD15pos	9	Mating Screws 4-40	Round	Metal Zinc	45 °	Assembly Hardware Strain Relief	Silver	Metal	Shielded	Nickel
Amphenol CONEC 165X02629X	B	Two Piece Backshell	25pos HD44pos		Mating Screws 4-40	Round	Metal Zinc	180 °	Strain Relief	Silver	Metal	Shielded	Nickel
Amphenol CONEC 165X02659X	A	Two Piece Backshell	15pos HD26pos	15	Mating Screws M3	Round	Metal Zinc	180 °	Assembly Hardware Strain Relief	Silver	Metal	Shielded	Nickel
Amphenol CONEC 165X02699X	A	Two Piece Backshell	15pos HD26pos	15	Mating Screws 4-40	Round	Metal Zinc	45 °	Assembly Hardware Strain Relief	Silver	Metal	Shielded	Nickel
Amphenol CONEC 165X02629XE	B	Two Piece Backshell	25pos HD44pos		Mating Screws 4-40	Round	Metal Zinc	180 °	Assembly Hardware Strain Relief		Metal	Shielded	Nickel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.42
		10	$ 10.12
		100	$ 8.83
		1000	$ 6.90

Description

General part information

165X026 Series

25 Position Two Piece Backshell Connector Silver 180° Shielded
