165X02689X
ActiveAmphenol CONEC

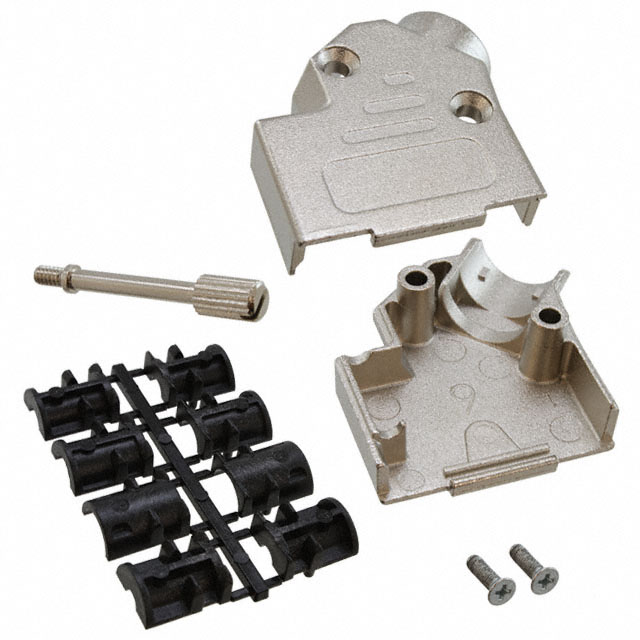

CONN BACKSHELL 9P 45DEG SHLD SLV
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
165X02689X
ActiveAmphenol CONEC
CONN BACKSHELL 9P 45DEG SHLD SLV
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 165X02689X |
|---|---|
| Accessory Type | Two Piece Backshell |
| Cable Exit | 45 ° |
| Cable Type | Round |
| Color | Silver |
| Compatible D-Sub Size | HD15pos, 9pos |
| Compatible Shell Size | E |
| Features | Mating Screws 4-40 |
| Hardware | Assembly Hardware, Grommets |
| Material | Metal, Zinc |
| Number of Positions | 9 |
| Plating | Nickel |
| Primary Material | Metal |
| Shielding | Shielded |
165X026 Series
| Part | Compatible Shell Size | Accessory Type | Compatible D-Sub Size | Number of Positions | Features | Cable Type | Material | Cable Exit | Hardware | Color | Primary Material | Shielding | Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol CONEC | E | Two Piece Backshell | 9pos HD15pos | 9 | Mating Screws M3 | Round | Metal Zinc | 180 ° | Assembly Hardware Strain Relief | Silver | Metal | Shielded | Nickel |
Amphenol CONEC | A | Two Piece Backshell | 15pos HD26pos | 15 | Mating Screws 4-40 | Round | Metal Zinc | 180 ° | Strain Relief | Silver | Metal | Shielded | Nickel |
Amphenol CONEC | A | Two Piece Backshell | 15pos HD26pos | 15 | Mating Screws 4-40 | Round | Metal Zinc | 180 ° | Assembly Hardware Strain Relief | Silver | Metal | Shielded | Nickel |
Amphenol CONEC | E | Two Piece Backshell | 9pos HD15pos | 9 | Mating Screws M3 | Round | Metal Zinc | 180 ° | Assembly Hardware Strain Relief | Silver | Metal | Shielded | Nickel |
Amphenol CONEC | E | Two Piece Backshell | 9pos HD15pos | 9 | Mating Screws 4-40 | Round | Metal Zinc | 45 ° | Assembly Hardware Grommets | Silver | Metal | Shielded | Nickel |
Amphenol CONEC | E | Two Piece Backshell | 9pos HD15pos | 9 | Mating Screws 4-40 | Round | Metal Zinc | 45 ° | Assembly Hardware Strain Relief | Silver | Metal | Shielded | Nickel |
Amphenol CONEC | B | Two Piece Backshell | 25pos HD44pos | Mating Screws 4-40 | Round | Metal Zinc | 180 ° | Strain Relief | Silver | Metal | Shielded | Nickel | |
Amphenol CONEC | A | Two Piece Backshell | 15pos HD26pos | 15 | Mating Screws M3 | Round | Metal Zinc | 180 ° | Assembly Hardware Strain Relief | Silver | Metal | Shielded | Nickel |
Amphenol CONEC | A | Two Piece Backshell | 15pos HD26pos | 15 | Mating Screws 4-40 | Round | Metal Zinc | 45 ° | Assembly Hardware Strain Relief | Silver | Metal | Shielded | Nickel |
Amphenol CONEC | B | Two Piece Backshell | 25pos HD44pos | Mating Screws 4-40 | Round | Metal Zinc | 180 ° | Assembly Hardware Strain Relief | Metal | Shielded | Nickel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.66 | |
| 10 | $ 6.93 | |||
| 100 | $ 6.06 | |||
| 1000 | $ 4.47 | |||
Description
General part information
165X026 Series
9 Position Two Piece Backshell Connector Silver 45° Shielded
