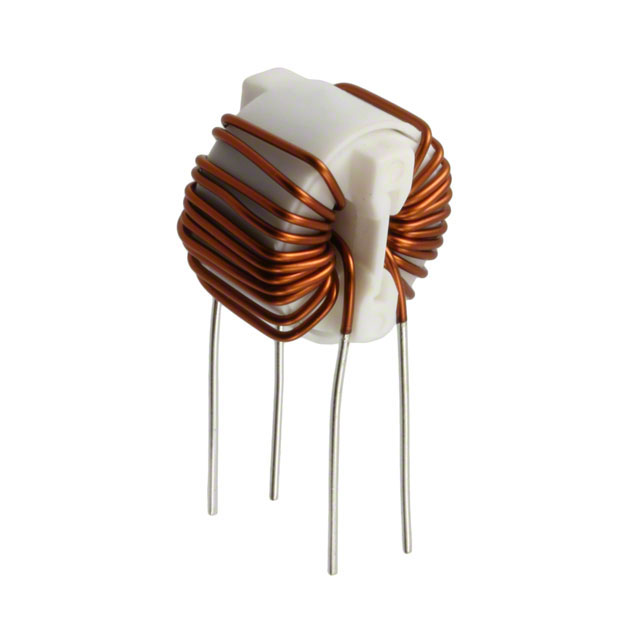

SC-03-06G

Active

KEMET

CMC 600UH 3A 2LN TH

Search across all available documentation for this part.

Active

KEMET

CMC 600UH 3A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [y]	Size / Dimension [diameter]	Size / Dimension [y]	Mounting Type	Package / Case	Height (Max) [Max]	Height (Max) [Max]	Voltage Rating - AC	Filter Type	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Inductance @ Frequency	Number of Lines	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Size / Dimension [custom]	Size / Dimension [custom]
KEMET SC-03-05GS	250 V	-40 °C	105 ░C	0.591 inches	0.335 inches	15 mm	8.5 mm	Through Hole	4 PC Pin No Base Vertical	15 mm	0.591 in	250 V	Power Line	3 A	45 mOhm	100 kHz 500 µH	2
KEMET SC-03-10GJ	250 V	-40 °C	120 °C				17 mm	Through Hole	Vertical	20 mm	0.787 in	250 V	Power Line	3 A	40 mOhm	1 mH	2	0.689 in	17.5 mm	0.669 in	4 Lead
KEMET SC-03-06G	250 V	-40 °C	105 ░C	0.689 "		17.5 mm		Through Hole	4 PC Pin No Base Vertical	17.5 mm	0.689 in	250 V	Power Line	3 A	30 mOhm	600 µH	2					0.551 "	14 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

600 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 3A DCR 30mOhm
