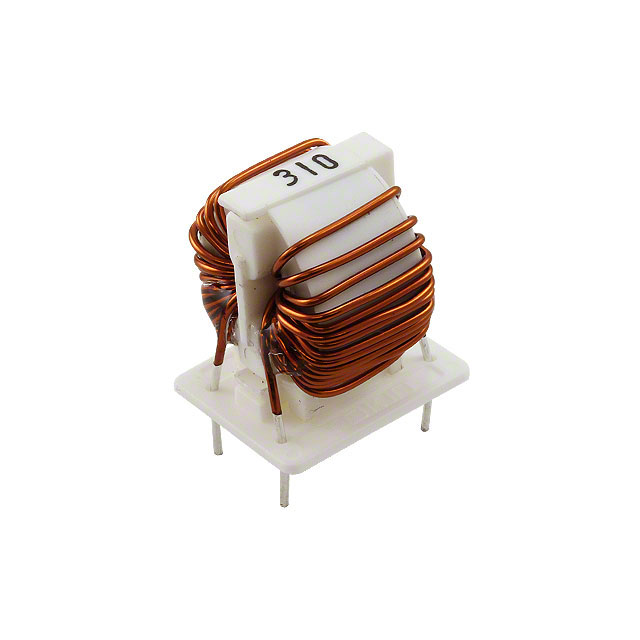

SC-03-10GJ

Active

KEMET

COMMON MODE CHOKES DUAL 1000UH 100KHZ 3A 0.04OHM DCR THRU-HOLE

Search across all available documentation for this part.

Active

KEMET

COMMON MODE CHOKES DUAL 1000UH 100KHZ 3A 0.04OHM DCR THRU-HOLE

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [y]	Size / Dimension [diameter]	Size / Dimension [y]	Mounting Type	Package / Case	Height (Max) [Max]	Height (Max) [Max]	Voltage Rating - AC	Filter Type	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Inductance @ Frequency	Number of Lines	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Size / Dimension [custom]	Size / Dimension [custom]
KEMET SC-03-05GS	250 V	-40 °C	105 ░C	0.591 inches	0.335 inches	15 mm	8.5 mm	Through Hole	4 PC Pin No Base Vertical	15 mm	0.591 in	250 V	Power Line	3 A	45 mOhm	100 kHz 500 µH	2
KEMET SC-03-10GJ	250 V	-40 °C	120 °C				17 mm	Through Hole	Vertical	20 mm	0.787 in	250 V	Power Line	3 A	40 mOhm	1 mH	2	0.689 in	17.5 mm	0.669 in	4 Lead
KEMET SC-03-06G	250 V	-40 °C	105 ░C	0.689 "		17.5 mm		Through Hole	4 PC Pin No Base Vertical	17.5 mm	0.689 in	250 V	Power Line	3 A	30 mOhm	600 µH	2					0.551 "	14 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 3A DCR 40mOhm
