630-3WK3640-1NA

Active

EDAC Inc.

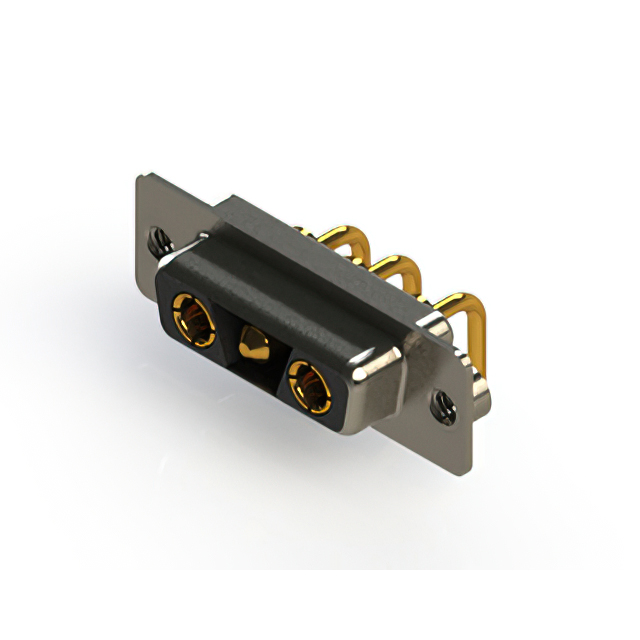

COMBINATION LAYOUT D SUB CONNECTOR, 630C SERIES, DA-3WK3, RECEPTACLE, 3 CONTACTS, 3 POWER, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630-3WK3640-1NA

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 630C SERIES, DA-3WK3, RECEPTACLE, 3 CONTACTS, 3 POWER, SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-3WK3640-1NA

Backset Spacing	13.2 mm
Backset Spacing	0.52 "
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Female Sockets, Male Pins, Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	10 A
Dielectric Material	Polyester Thermoplastic
Flange Feature	Board Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	3
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2 (DA, A) - 3WK3
Termination	Solder
Voltage Rating	125 VDC

630-3WK Series

...

Part	Current Rating (Amps)	Contact Finish	Flange Feature	Dielectric Material	Number of Positions	Material Flammability Rating	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Backset Spacing	Backset Spacing	Mounting Type	Connector Type	Contact Material	Connector Style	Voltage Rating	Termination	Number of Rows	Shell Size, Connector Layout	Color	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Finish Thickness	Shell Material, Finish
EDAC Inc. 630-3WK3650-1T2	10 A	Gold	Housing/Shell (4-40)	Polyester Thermoplastic	3	UL94 V-0	Power	-55 °C	125 °C	13.2 mm	0.52 "	Through Hole Right Angle	Female Sockets Male Pins Receptacle	Copper Alloy	Combo D-Sub	125 VDC	Solder	1	2 (DA A) - 3WK3	Black	0.76 Ám	30 Áin
EDAC Inc. 630-3WK3250-4T5	40 A	Gold	4-40	Polyester Thermoplastic	3	UL94 V-0	Power	-55 °C	125 °C	13.2 mm	0.52 "	Through Hole Right Angle	Female Sockets Male Pins Receptacle	Copper Alloy	Combo D-Sub	125 VDC	Solder	1	2 (DA A) - 3WK3	Black			Board Lock Mounting Brackets	Flash
EDAC Inc. 630-3WK3640-2N5	20 A	Gold	4-40	Polyester Thermoplastic	3	UL94 V-0	Power	-55 °C	125 °C	13.2 mm	0.52 "	Through Hole Right Angle	Female Sockets Male Pins Receptacle	Copper Alloy	Combo D-Sub	125 VDC	Solder	1	2 (DA A) - 3WK3	Black	0.76 Ám	30 Áin	Board Lock Mounting Brackets		Nickel Plated Steel
EDAC Inc. 630-3WK3240-2N2	20 A	Gold	Housing/Shell (4-40)	Polyester Thermoplastic	3	UL94 V-0	Power	-55 °C	125 °C	13.2 mm	0.52 "	Through Hole Right Angle	Female Sockets Male Pins Receptacle	Copper Alloy	Combo D-Sub	125 VDC	Solder	1	2 (DA A) - 3WK3	Black				Flash	Nickel Plated Steel
EDAC Inc. 630-3WK3650-4T1	40 A	Gold	Housing/Shell (Unthreaded)	Polyester Thermoplastic	3	UL94 V-0	Power	-55 °C	125 °C	13.2 mm	0.52 "	Through Hole Right Angle	Female Sockets Male Pins Receptacle	Copper Alloy	Combo D-Sub	125 VDC	Solder	1	2 (DA A) - 3WK3	Black	0.76 Ám	30 Áin	Shielded
EDAC Inc. 630-3WK3640-1NA	10 A	Gold	Board Side (M3)	Polyester Thermoplastic	3	UL94 V-0	Power	-55 °C	125 °C	13.2 mm	0.52 "	Through Hole Right Angle	Female Sockets Male Pins Receptacle	Copper Alloy	Combo D-Sub	125 VDC	Solder	1	2 (DA A) - 3WK3	Black	0.76 Ám	30 Áin			Nickel Plated Steel
EDAC Inc. 630-3WK3640-2TD	20 A	Gold	M3	Polyester Thermoplastic	3	UL94 V-0	Power	-55 °C	125 °C	13.2 mm	0.52 "	Through Hole Right Angle	Female Sockets Male Pins Receptacle	Copper Alloy	Combo D-Sub	125 VDC	Solder	1	2 (DA A) - 3WK3	Black	0.76 Ám	30 Áin	Board Lock Mounting Brackets
EDAC Inc. 630-3WK3640-4TD	40 A	Gold	M3	Polyester Thermoplastic	3	UL94 V-0	Power	-55 °C	125 °C	13.2 mm	0.52 "	Through Hole Right Angle	Female Sockets Male Pins Receptacle	Copper Alloy	Combo D-Sub	125 VDC	Solder	1	2 (DA A) - 3WK3	Black	0.76 Ám	30 Áin	Board Lock Mounting Brackets
EDAC Inc. 630-3WK3650-3ND	30 A	Gold	M3	Polyester Thermoplastic	3	UL94 V-0	Power	-55 °C	125 °C	13.2 mm	0.52 "	Through Hole Right Angle	Female Sockets Male Pins Receptacle	Copper Alloy	Combo D-Sub	125 VDC	Solder	1	2 (DA A) - 3WK3	Black	0.76 Ám	30 Áin	Board Lock Mounting Brackets		Nickel Plated Steel
EDAC Inc. 630-3WK3640-4T2	40 A	Gold	Housing/Shell (4-40)	Polyester Thermoplastic	3	UL94 V-0	Power	-55 °C	125 °C	13.2 mm	0.52 "	Through Hole Right Angle	Female Sockets Male Pins Receptacle	Copper Alloy	Combo D-Sub	125 VDC	Solder	1	2 (DA A) - 3WK3	Black	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	250	$ 13.46
Newark	Each	1	$ 17.32
		500	$ 15.87
		1000	$ 14.65
		2500	$ 14.11
		5000	$ 12.48

Description

General part information

630-3WK Series

3 (Power) Position D-Sub, Combo Receptacle, Female Sockets and Male Pins Connector
