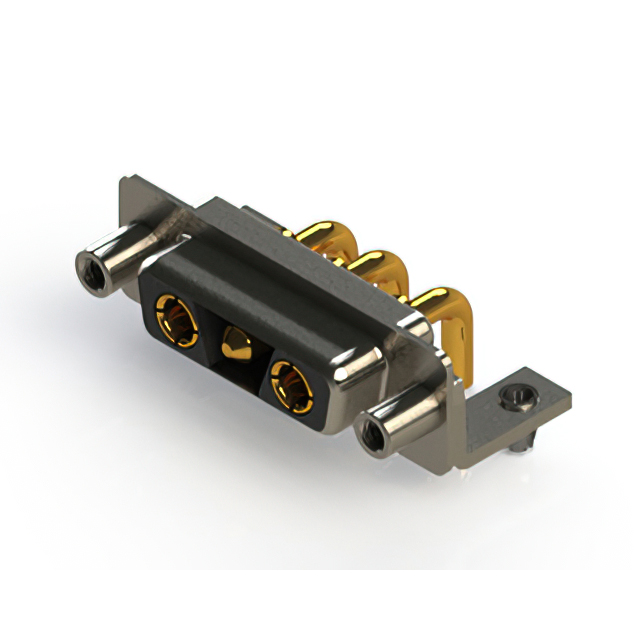

630-3WK3640-2N5

Active

EDAC Inc.

CONN D-SUB RCPT 3POS R/A SLDR

630-3WK3640-2N5

Active

EDAC Inc.

CONN D-SUB RCPT 3POS R/A SLDR

Description Specifications Series Pricing CAD Documents

Description

General part information

630-3WK Series

3 (Power) Position D-Sub, Combo Receptacle, Female Sockets and Male Pins Connector

Technical Specifications

Parameters and characteristics for this part

Specification	630-3WK3640-2N5

Backset Spacing	0.52 in
Color	Black
Connector Layout	3WK3, DA, A
Connector Style	Combo, D-Sub
Connector Type	Male Pins, Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating	20 A
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets, Board Lock
Finish	Nickel Plated
Flange Feature	Mating Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	3
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Position Types	Power
Shell Material	Steel
Shell Size	2
Termination	Solder
Voltage Rating	125 V

630-3WK Series

...

Part	Contact Type	Backset Spacing	Material Flammability Rating	Finish	Shell Material	Flange Feature	Connector Style	Contact Finish Thickness	Contact Finish	Termination	Shell Size	Connector Layout	Connector Type	Number of Positions	Position Types	Mounting Type	Current Rating	Number of Rows	Contact Material	Color	Operating Temperature (Max)	Operating Temperature (Min)	Dielectric Material	Voltage Rating	Features	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 630-3WK3650-1T2	Power	0.52 in	UL94 V-0	Tin Plated	Steel	Housing Shell (4-40)	Combo D-Sub	30 µin	Gold	Solder	2	3WK3 A DA	Female Sockets Male Pins Receptacle	3	Power	Right Angle Through Hole	10 A	1	Copper Alloy	Black	125 °C	-55 °C	Polyester Thermoplastic	125 V
EDAC Inc. 630-3WK3250-4T5	Power	0.52 in	UL94 V-0	Tin Plated	Steel	Mating Side (4-40)	Combo D-Sub	0	Gold	Solder	2	3WK3 A DA	Female Sockets Male Pins Receptacle	3	Power	Right Angle Through Hole	40 A	1	Copper Alloy	Black	125 °C	-55 °C	Polyester Thermoplastic	125 V	Board Lock Mounting Brackets	Flash	Flash
EDAC Inc. 630-3WK3640-2N5	Power	0.52 in	UL94 V-0	Nickel Plated	Steel	Mating Side (4-40)	Combo D-Sub	30 µin	Gold	Solder	2	3WK3 A DA	Female Sockets Male Pins Receptacle	3	Power	Right Angle Through Hole	20 A	1	Copper Alloy	Black	125 °C	-55 °C	Polyester Thermoplastic	125 V	Board Lock Mounting Brackets
EDAC Inc. 630-3WK3240-2N2	Power	0.52 in	UL94 V-0	Nickel Plated	Steel	Housing Shell (4-40)	Combo D-Sub	0	Gold	Solder	2	3WK3 A DA	Female Sockets Male Pins Receptacle	3	Power	Right Angle Through Hole	20 A	1	Copper Alloy	Black	125 °C	-55 °C	Polyester Thermoplastic	125 V		Flash	Flash
EDAC Inc. 630-3WK3650-4T1	Power	0.52 in	UL94 V-0	Tin Plated	Steel	Housing Shell (Unthreaded)	Combo D-Sub	30 µin	Gold	Solder	2	3WK3 A DA	Female Sockets Male Pins Receptacle	3	Power	Right Angle Through Hole	40 A	1	Copper Alloy	Black	125 °C	-55 °C	Polyester Thermoplastic	125 V	Shielded
EDAC Inc. 630-3WK3640-1NA	Power	0.52 in	UL94 V-0	Nickel Plated	Steel	Board Side (M3)	Combo D-Sub	30 µin	Gold	Solder	2	3WK3 A DA	Female Sockets Male Pins Receptacle	3	Power	Right Angle Through Hole	10 A	1	Copper Alloy	Black	125 °C	-55 °C	Polyester Thermoplastic	125 V
EDAC Inc. 630-3WK3640-2TD	Power	0.52 in	UL94 V-0	Tin Plated	Steel	Mating Side (M3)	Combo D-Sub	30 µin	Gold	Solder	2	3WK3 A DA	Female Sockets Male Pins Receptacle	3	Power	Right Angle Through Hole	20 A	1	Copper Alloy	Black	125 °C	-55 °C	Polyester Thermoplastic	125 V	Board Lock Mounting Brackets
EDAC Inc. 630-3WK3640-4TD	Power	0.52 in	UL94 V-0	Tin Plated	Steel	Mating Side (M3)	Combo D-Sub	30 µin	Gold	Solder	2	3WK3 A DA	Female Sockets Male Pins Receptacle	3	Power	Right Angle Through Hole	40 A	1	Copper Alloy	Black	125 °C	-55 °C	Polyester Thermoplastic	125 V	Board Lock Mounting Brackets
EDAC Inc. 630-3WK3650-3ND	Power	0.52 in	UL94 V-0	Nickel Plated	Steel	Mating Side (M3)	Combo D-Sub	30 µin	Gold	Solder	2	3WK3 A DA	Female Sockets Male Pins Receptacle	3	Power	Right Angle Through Hole	30 A	1	Copper Alloy	Black	125 °C	-55 °C	Polyester Thermoplastic	125 V	Board Lock Mounting Brackets
EDAC Inc. 630-3WK3640-4T2	Power	0.52 in	UL94 V-0	Tin Plated	Steel	Housing Shell (4-40)	Combo D-Sub	30 µin	Gold	Solder	2	3WK3 A DA	Female Sockets Male Pins Receptacle	3	Power	Right Angle Through Hole	40 A	1	Copper Alloy	Black	125 °C	-55 °C	Polyester Thermoplastic	125 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

630-3WK3640-2N5 | Datasheet
