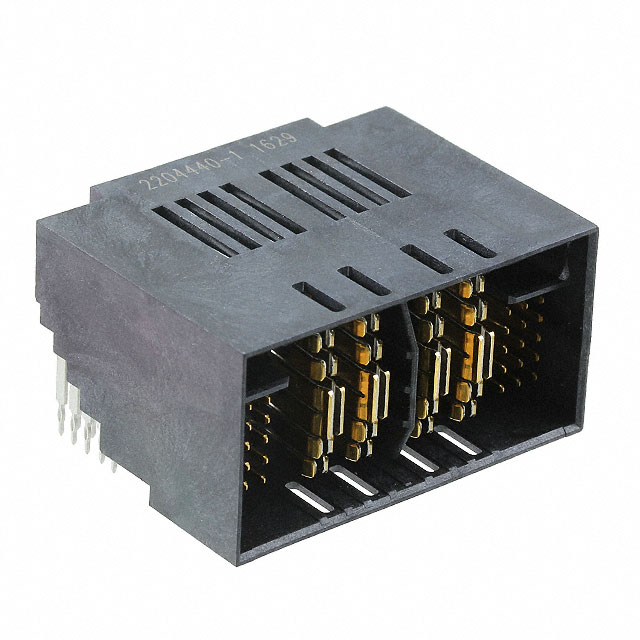

2204440-1
ActiveTE Connectivity Raychem Cable Protection
MULTI-BEAM HD R/A PLUG 15S+2P+2P+15S
Deep-Dive with AI
Search across all available documentation for this part.
2204440-1
ActiveTE Connectivity Raychem Cable Protection
MULTI-BEAM HD R/A PLUG 15S+2P+2P+15S
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2204440-1 |
|---|---|
| Color | Black |
| Connector Style | Multi-Beam |
| Connector Type | Plug, Male Pins and Blades |
| Contact Finish | Gold, Gold-Palladium |
| Contact Layout, Typical [custom] | 4 |
| Contact Layout, Typical [custom] | 30 |
| Features | Board Guide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 34 |
| Number of Positions Loaded | All |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Termination | Press-Fit |
MULTI-BEAM HD Series
| Part | Mounting Type | Termination | Number of Positions | Connector Style | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Features | Color | Connector Type | Number of Rows | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | |||||||||||||||
TE Connectivity Raychem Cable Protection | |||||||||||||||
TE Connectivity Raychem Cable Protection | Board Edge Right Angle Through Hole | Press-Fit | 36 | Multi-Beam | All | 125 °C | -40 °C | UL94 V-0 | Board Guide Mating Guide | Black | Header Male Pins and Blades | 5 | 6 | 30 | |
TE Connectivity Raychem Cable Protection | |||||||||||||||
TE Connectivity Raychem Cable Protection | Board Edge Right Angle Through Hole | Press-Fit | 34 | Multi-Beam | All | 125 °C | -40 °C | UL94 V-0 | Board Guide | Black | Plug Male Pins and Blades | 4 | 30 | Gold Gold-Palladium | |
TE Connectivity Raychem Cable Protection | Through Hole | Press-Fit | 38 | Multi-Beam | All | 125 °C | -40 °C | UL94 V-0 | Board Guide | Black | Blade Sockets Female Sockets Receptacle | 8 | 30 | Gold Gold-Palladium | |
TE Connectivity Raychem Cable Protection |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 40.79 | |
| 10 | $ 33.81 | |||
| 25 | $ 31.38 | |||
| 40 | $ 30.21 | |||
| 80 | $ 28.56 | |||
| 84 | $ 28.45 | |||
| 168 | $ 27.09 | |||
| 230 | $ 26.24 | |||
| 252 | $ 26.33 | |||
Description
General part information
MULTI-BEAM HD Series
PCB Mount Plug, Right Angle, Board-to-Board, 34 Position, 2 mm / 5 mm [.079 in / .196 in] Centerline, Fully Shrouded, Gold (Au), MULTI-BEAM HD
