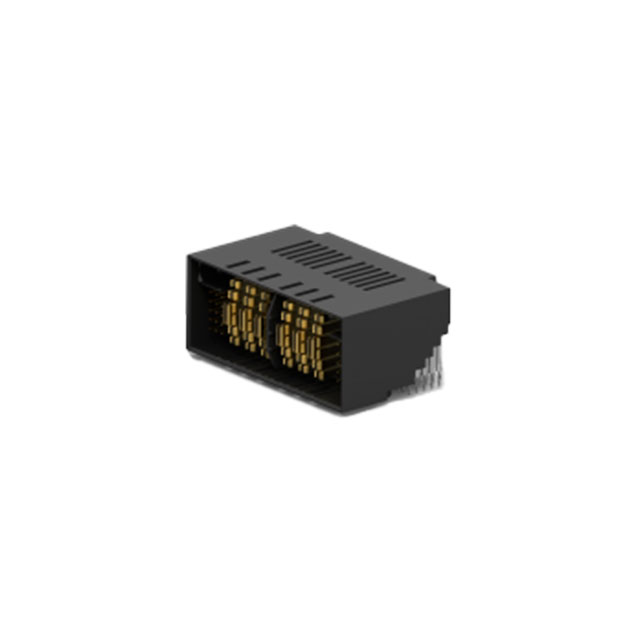

2204440-8
ActiveTE Connectivity Raychem Cable Protection
CONN HDR MULT-BEAM 36POS EDGE MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2204440-8
ActiveTE Connectivity Raychem Cable Protection
CONN HDR MULT-BEAM 36POS EDGE MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2204440-8 |
|---|---|
| Color | Black |
| Connector Style | Multi-Beam |
| Connector Type | Header, Male Pins and Blades |
| Contact Layout, Typical [custom] | 6 |
| Contact Layout, Typical [custom] | 30 |
| Features | Mating Guide, Board Guide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 36 |
| Number of Positions Loaded | All |
| Number of Rows | 5 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 38.29 | |
| 10 | $ 31.74 | |||
| 25 | $ 29.46 | |||
| 40 | $ 28.36 | |||
| 80 | $ 26.82 | |||
| 230 | $ 24.63 | |||
Description
General part information
MULTI-BEAM HD Series
36 Connector Header, Male Pins and Blades Board Edge, Through Hole, Right Angle Black Multi-Beam
